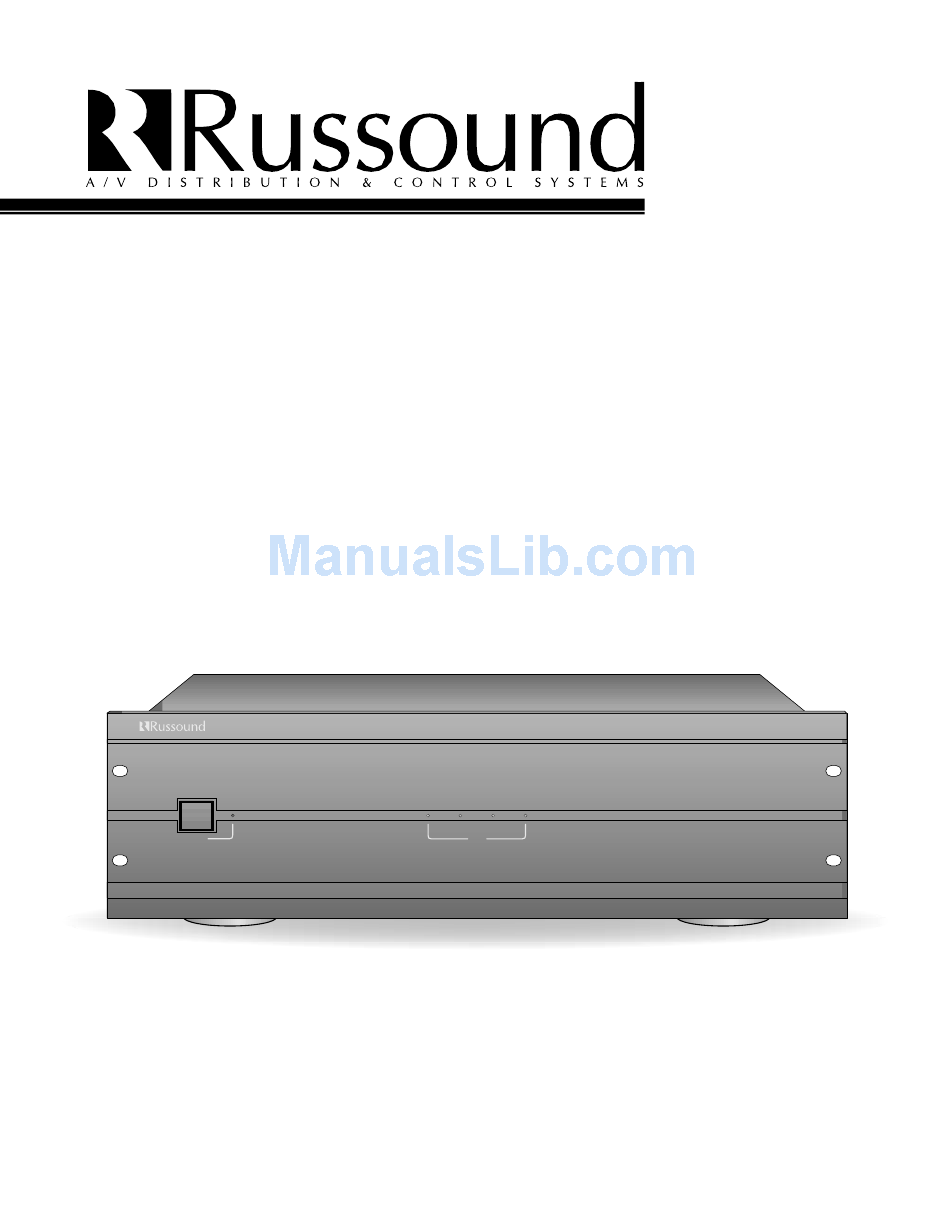

  • Page 1 4-Zone / 8-Channel Amplifier DPA-4.8 Instruction Manual — O N E H A N N E L M P L I F I E R OWER OWER DPA-4.8...

  • Page 2: Table Of Contents

    DPA-4.8 cabinet, take the DPA-4.8 to qualified service personal for inspection. 2. Location of the DPA-4.8 - Do not expose the DPA-4.8 to direct sun light or SAFETY INSTRUCTIONS heating units as the DPA-4.8 internal components temperature may rise and shorten the life of the components.

  • Page 3: Introduction

    INTRODUCTION the four stereo pairs can be bridged to two stereo pairs for higher output power. The DPA-4.8 power output is 50 watts Congratulations on your recent purchase of the Russound per channel into 8 ohms, and 75 watts into 4-ohms. Bridged DPA-4.8 8-channel amplifier.

  • Page 4: Possible System Configuration

    POSSIBLE SYSTEM CONFIGURATIONS The DPA-4.8 can be configured as an audio distribution sys- tem, or used as the main amplifier for a home theater system. When used with an audio distribution preamp, each zone can independently drive one of several different sources by using each zones’...

  • Page 5: Front Panel

    Stereo / Mono Switch: This selects stereo or mono for the speaker outputs. In the Mono STEREO Rack Mounting: The DPA-4.8 amplifier can be rack mounted. BRGD MONO * position each Left and Right output is Mono. The amplifier will take 3 rack spaces.

  • Page 6: Bridged Operation

    BRIDGED OPERATION LEFT CHANNEL RIGHT CHANNEL ZONE 4 ZONE 3 LINE INPUT LINE INPUT LEFT CHANNEL NPUT NPUT VOLUME CONTROL RIGHT CHANNEL LINE LINE VOLUME CONTROL GAIN GAIN SET THIS SWITCH SET THIS SWITCH TO BRGD MONO TO BRGD MONO FOR BRIDGING FOR BRIDGING STEREO...

  • Page 7: Specifications

    SPECIFICATIONS WARRANTY The Russound DPA-4.8 is fully guaranteed for two (2) years from the date of pur- Audio power output: Continuous 50W @ 8 ohms, chase against all defects in materials and workmanship. During this period Russound 75W @ 4 ohms.
