- Page 1 EG FAMILY QUICK START GUIDE September 2021 www.nomadix.com ©2021 Nomadix Inc. All Rights Reserved.

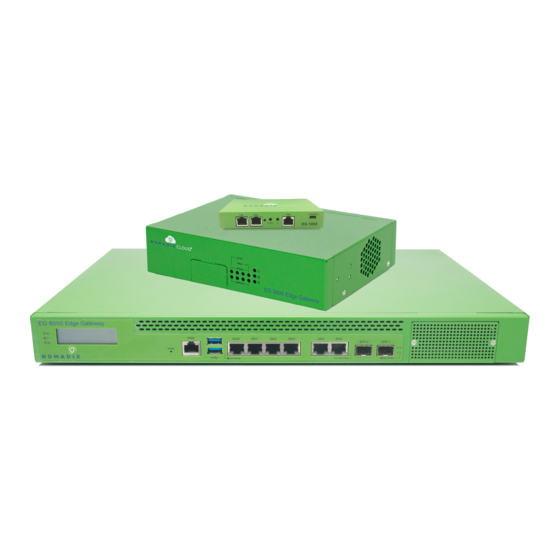

- Page 2 Nomadix Edge Gateway (EG) Products. Documentation and Technical Support For more detailed information about the individual gateways and all other Nomadix Product Documentation, User Guide, XML DTD, MIB and Radius Dictionary can be found using the following URL: http://www.nomadix.com/technical-support-documentation...
- Page 3 715-5001-010 EG-Series PMS Serial Interface Kit Installation Unpack the Nomadix Edge Gateway and place the product on a flat and stable work surface. Register the Gateway for support services by completing and returning the Nomadix Gateway Registration Form online at the following URL: https://nomadix.com/product-registration/...
- Page 4 Gateway DNS (if needed) 172.30.30.173 255.255.0.0 172.30.30.172 4.2.2.1 Table 1: Administrative IP address Attach the laptop to the Nomadix ETH1 or LAN port using an Ethernet cable and check the status as shown below. Figure 1: Ethernet Connection Customer Confidence...
- Page 5 On the PC/laptop open an SSH (Secure Shell) client connection using PuTTY, Hyperterm, Procomm (or equivalent) to the EG using the Gateway’s default IP address 172.30.30.172. With everything connected and powered up, you are now ready to configure the Gateway’s WAN for a static IP address, DHCP Client or PPPoE client using the appropriate configuration guidelines that follow in order to obtain the license key.
- Page 6 Step 1a: Static WAN IP Configuration Accept static as the default configuration mode and enter the following mandatory settings shown in Figure 4. Figure 4: Initial WAN port settings A WAN port summary page will then be displayed as shown in Figure 5. Figure 5: WAN port static IP configuration summary page If everything is correct in the summary, type b[ack] to return to the previous menu and proceed to Step 2 to enter the location information.
- Page 7 Step 1b: DHCP Client Configuration Type d[hcp] for the configuration mode as shown in Figure 6. Figure 6: Selecting DHCP Client for WAN configuration A WAN port summary page will then be displayed as shown in the example Figure 7. Figure 7: WAN port DHCP client configuration summary page If everything is correct in the summary, type b[ack] to return to the previous menu and proceed to Step 2 to enter the location information.
- Page 8 Step 1c: PPPoE Dynamic IP Client Configuration Enter p[ppoe] when prompted. Enter the following mandatory settings for a PPPoE connection with dynamic PPP IP configuration shown in Figure 8. Figure 8: Selecting PPPoE with dynamic IP configuration A WAN port summary page will then be displayed as shown in Figure 9. Figure 9: WAN port PPPoE client configuration summary page Customer Confidence...
- Page 9 Step 1d: PPPoE Static IP Client Configuration Use the same steps for configuring dynamic PPPoE shown in Figure 8 above, but select static for PPP IP Configuration Mode, and enter your IP address for PPP Static IP Address. A summary page similar to Figure 9 above will be displayed.
-
Page 10: Step 2: Entering Your Location Information
EULA before the Edge Gateway can retrieve its license key. To retrieve the license key, enter y[es] as shown in Figure 11. The EG retrieves the license key from the Nomadix license key server, then reboots. -
Page 11: Step 4: Configuring The System
Figure 11: License key retrieval. NOTE: The date and time the gateway receives a valid license from our server for the first time is considered the Software License Subscription start date. Step 4: Configuring the System Log in to the Edge Gateway and use the graphical Web Management Interface (WMI) to configure the product’s features. -
Page 12: Sample Network Setup
Sample Network Setup An example of a basic network including the Edge Gateway is shown in Figure 10 Figure 10: Example of a network setup Additional Documentation Additional Product documentation can be found at: http://www.nomadix.com/technical-support-documentation Nomadix Product Documentation Customer Confidence...
