General Safety Instruction
Safety Instruction
Provides critical safety information for operating and maintaining the charger, emphasizing qualified personnel and manual review.
General Precaution
Advises on preventing fire and shock, proper cable selection, fusing, and unit placement to avoid damage.
Precaution regarding battery operation
Details precautions for handling battery acid, flammable gases, and preventing short circuits from metal objects.
Description of main functions
General Description

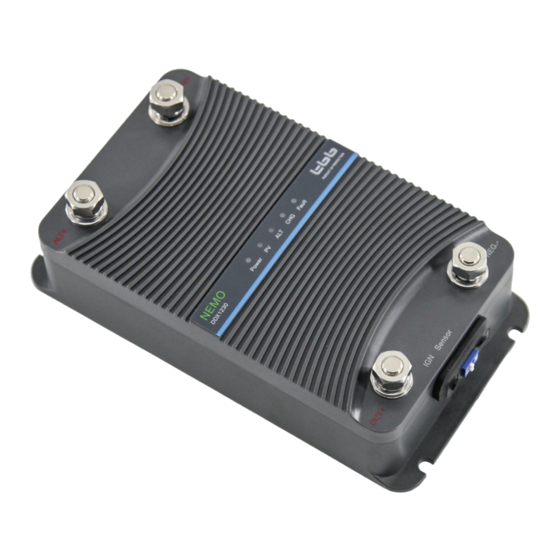

Explains the NEMO battery to battery charger's function, benefits, and compatibility with modern vehicles and batteries.
Principle Diagram
Illustrates the functional block diagram of the charger, showing key components and their interconnections.
Model Information
Explains the model naming convention and lists the available NEMO series models with their features.
Structure
Terminal and panel definition
Identifies and describes the purpose of each terminal and panel component on the charger unit.
Structure dimension
Provides the physical dimensions of the NEMO charger unit, essential for installation planning.
Preparation and Configuration
Material list
Lists the contents provided with the NEMO battery to battery charger, including the unit and user manual.
Location
Recommends suitable installation locations for the charger, focusing on ventilation, temperature, and environmental conditions.
Battery type setting
Guides users on configuring the charger for different battery types (AGM, GEL, LFP, WET) via switch settings.
Wiring and Fuse recommendation
Details recommended cable sizes, fuse ratings, and wiring practices for safe and efficient installation.
Installation and Connection
General advice
Offers general advice for installation, including cable fusing, proper connections, and securing the charger unit.
Connecting the power cable
Provides step-by-step instructions for connecting power cables, including polarity, ignition wire, sensor, and RS485 connections.
Operation
Double check
Outlines essential pre-operation checks to ensure correct installation, polarity, and sensor connections.
LED Description
Explains the meaning of different LED indicators on the charger's front panel for various operational states.
LEDs indicate the normal working status
Details how LED combinations indicate normal operating stages like absorption and floating for different models.
