Summary of Contents for TBB power DM Series

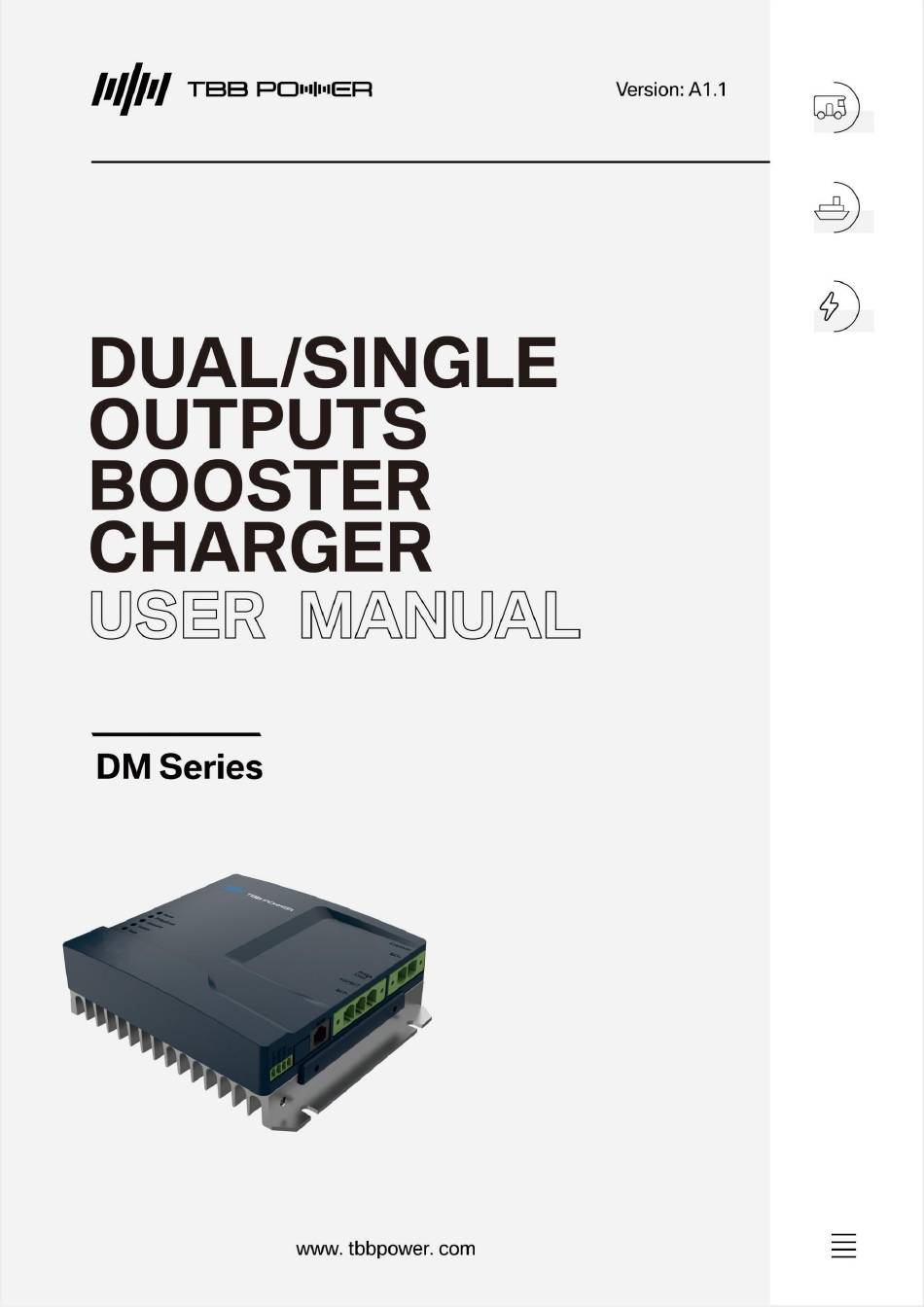

- Page 2 Dual/single outputs booster charger...
- Page 3 Dual/single outputs booster charger WARNING: HIGH VOLTAGE INSIDE CAUTION: THE DC FUSE MUST HAVE BEENTURNED OFF BEFORE SERVICING MADE IN CHINA...
- Page 4 Dual/single outputs booster charger Disclaimer Unless specially agreed in writing, TBB Power Co., Ltd. Takes no warranty as to the accuracy, sufficiency of suitability of any technical or other information provided in this manual or other documentation. Assumes no responsibility or liability for loss or damage, whether direct, indirect, consequential or incidental, which might arise out of the use of such information.
-
Page 5: Table Of Contents
Dual/single outputs booster charger Contents 1. General Safety Instruction ......................1 2. Introduction ..........................2 2.1 General introduction ......................2 2.2 Topology ..........................3 2.3 Booster mode logic ......................4 2.4 TBB Premium II five stages charging algorithm ..............5 2.5 Battery temperature compensation .................. -
Page 6: General Safety Instruction
Dual/single outputs booster charger 1. General Safety Instruction Safety Instruction As dangerous voltage and high temperature exist within the charge controller, only qualified and authorized maintenance personnel are permitted to open and repair it. This manual contains information concerning the installation and operation of the charge controller. All relevant parts of the manual should be read prior to commencing the installation. -
Page 7: Introduction
2. Introduction 2.1 General introduction TBB’s DM series charger is an in-vehicle charging solution which specified designed for on-board application such as RV, Marine, Utility Vehicle, Truck etc. Dual outputs DMT1250 comes with a brilliant feature of dual outputs: one is for auxiliary battery charging with charge current up to 30A, and the other one is dedicated to power a DC load (Typically a DC fridge) with current up to 20A. -
Page 8: Topology
Dual/single outputs booster charger 2.2 Topology DC load Alternator (Fridge) Motor Auxiliary Inverter DC/DC battery battery Converter Temperature detect Figure 2-1 Topology of DMT models Alternator Motor Auxiliary Inverter DC/DC battery battery Converter Temperature detect Figure 2-2 Topology of DM models Thanks to its non-isolation design, the charging efficiency of DM/DMT is up to 96%. -
Page 9: Booster Mode Logic
Dual/single outputs booster charger 2.3 Booster mode logic Table2-1 Charging logic for 12V system Configuration Starter battery voltage Time delay ACC+/D+ Term Default Range Default Range With ACC+/D+ D+/ACC+ AND voltage ≥13.2V 12~14.5V 5~60s connected meets the threshold Without ACC+/D+ voltage meets the ≥13.2V 12~14.5V... -
Page 10: Tbb Premium Ii Five Stages Charging Algorithm
Dual/single outputs booster charger 2.4 TBB Premium II five stages charging algorithm Fitted with five stages charging algorithm (soft start-bulk-absorption-float-recycle), DMT1250/DM1230 is able to charge auxiliary battery quickly and fully. Microprocessor controlled charging algorithm with variable absorption charging timer to guarantee the optimal charging for batteries of different discharged states. -
Page 11: Back-Charging Function
Dual/single outputs booster charger 2.6 Back-charging function It’s required to connect D+ cable or ACC signal to enable back-charging function. All standard models comes with back-charging function, which allows DMT/DM draws power from auxiliary battery to charge starter battery (charge current is from 0-3A). With back-charging function, it will prevent starter battery to get flat which fails to start engine. -
Page 12: Rate Curve Against Temperature Increase
Dual/single outputs booster charger Table2-8 Stop charging logic for 24V system Value Configuration Starter Auxiliary battery ACC/D+ Term battery Time delay voltage voltage Default Range Default Range ACC+/D+ is With ACC/D+ detected OR ≥25.6V ≤24V 24~28.6V 5~60s connected, voltage meet the threshold Without ACC+/D+... -
Page 13: Structure And Dimension

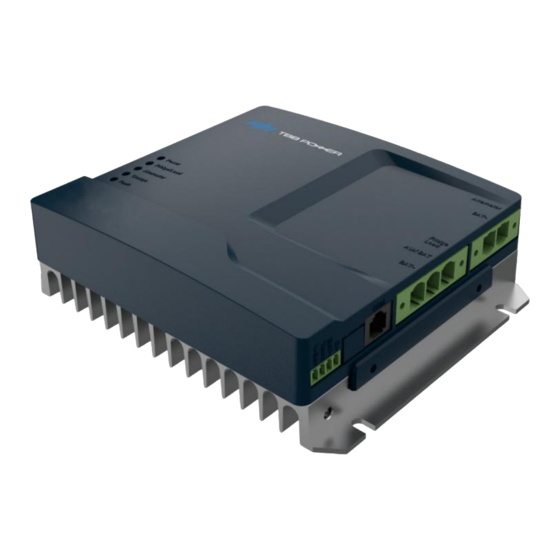

Dual/single outputs booster charger 3. Structure and dimension 3.1 Exterior and dimension Figure 3-1 Product front view... -
Page 14: Connectors And Terminals
Dual/single outputs booster charger Figure 3-2 Product dimension 3.2 Connectors and terminals Figure 3-3 Connectors and terminals Table 3-1 Connectors and terminals definition Print Definition Remarks Or connects to positive of Alternator Connects to positive of Alternator starter battery ① Or connects to positive of BAT- Connects to negative of Alternator... -
Page 15: Led Indication
Dual/single outputs booster charger 3.3 LED indication Table 3-3 LED indication Print Color Status Description Working normal Power Green No working or Low Power Mode Fridge/Load working Fridge/Load Fridge/Load over-temperature; output Green Flashing (No available Fridge/Load is over-current for DM1230) Fridge/Load no working Starter battery voltage in the range Fast... -
Page 16: Installation
Dual/single outputs booster charger 4. Installation 4.1 Material checking Before installation, please open the box to check if the product is broken or it’s the right item you purchased. If you have any question, please don’t remove the package and contact us in first time. Please check the item with the list attached in the box. -
Page 17: Proper Installation Location
Dual/single outputs booster charger 4.3 Proper installation location DM/DMT are designed with IP20, the installation location should be indoor. The temperature at the house and heat sink of the charger will be as high as 60℃ during its working. -
Page 18: Mounting Holes
Dual/single outputs booster charger 4.5 Mounting holes Find a appropriate mounting surface, drill mounting holes as dimension shown in below picture. Figure 4-2 Drill holes for mounting Please have the charger installed with auxiliary battery as close as possible to reduce voltage drop on cable. - Page 19 Dual/single outputs booster charger The voltage of auxiliary battery must be above 2V if the battery type isn't lithium type, or the charger will not charge to auxiliary battery. If the auxiliary battery is lithium type and the voltage is below 2V , the charger works on 'wake up' mode with a constant voltage output until the output current over 3A and then the charger turns into the battery charging mode.
-
Page 20: Cable Connection
Dual/single outputs booster charger 4.7 Cable connection Figure 4-3 Connection diagram... - Page 21 Dual/single outputs booster charger Step 1: Prepare proper cables to connect with positive and negative terminals of starter battery; and fix them into counter part of input connector which also provided by TBB. Step 2: Prepare proper cables to connect with positive and negative terminals of auxiliary battery, as well as positive and negative connector of DC load (Fridge);...
-
Page 22: Faq
Dual/single outputs booster charger 5. FAQ Issue Analysis and countermeasure 1. Please check if voltage of alternator or voltage of starter battery is higher than 16.0V; if yes, please wait for the voltage Indicator of Alternator dropped to 15.0V. flashing, and indicator of Fault ON If voltage of them is in the normal range while indicator is still flashing, please contact TBB for further advice. -
Page 23: Specification
Dual/single outputs booster charger 6. Specification Model NO. 1250 1230 1245 1260 2430 Electrical Alternator input voltage range 26.4~32 13.2~16VDC (Default setting) Automatic activation D+ Absorption charge voltage( Default Setting) 14.6VDC 29.2VDC Float charge voltage( Default Setting) 13.5VDC 27VDC Charge current Load bypass current Total current of load and charging Maximum charging efficiency... - Page 24 Dual/single outputs booster charger...
