Summary of Contents for TBB power Energier Mobile CC2.0L

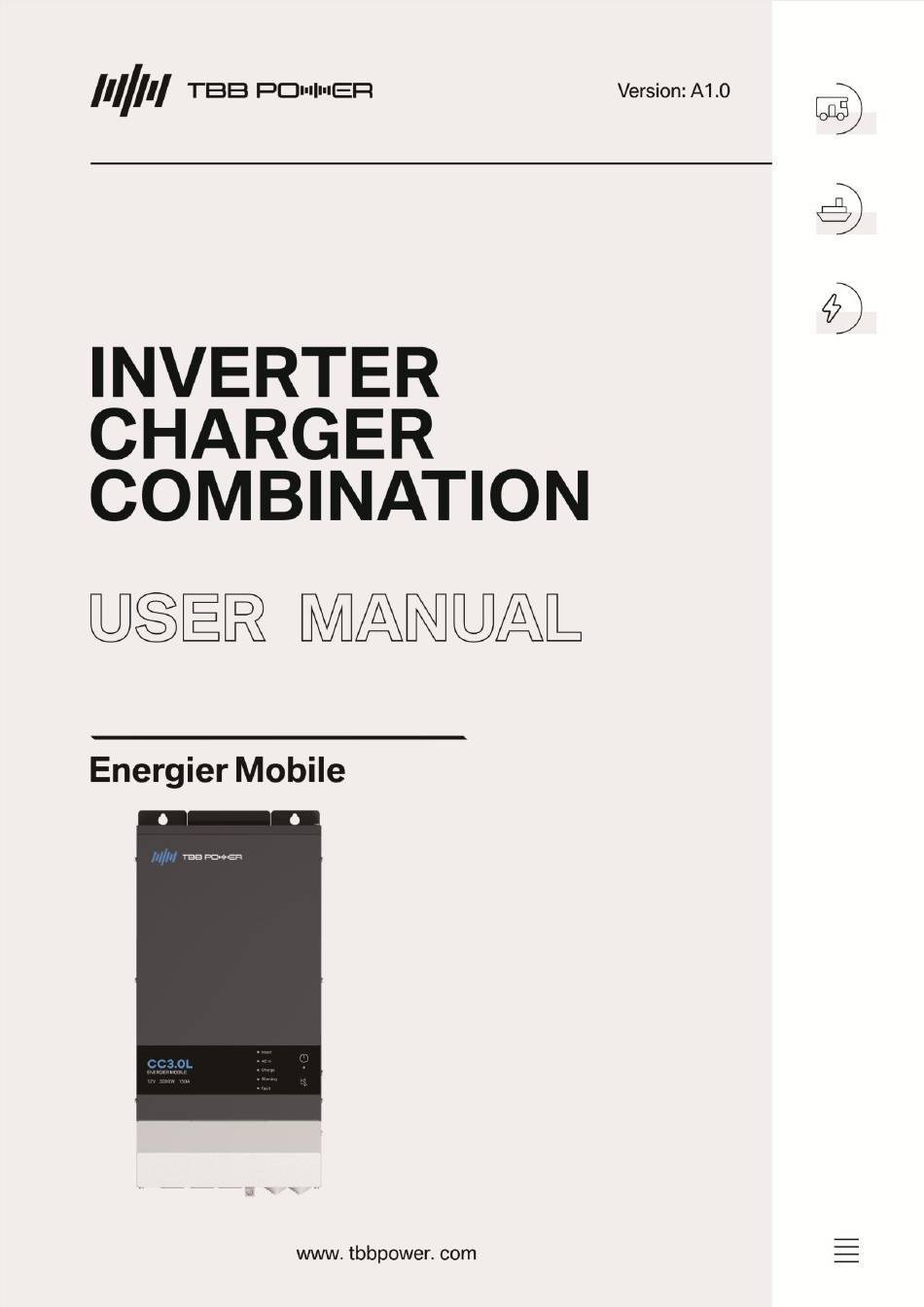

- Page 2 Energier MobileUser Manual...
- Page 3 Energier MobileUser Manual WARNING: HIGH VOLTAGE INSIDE CAUTION: THE DC FUSE MUST HAVE BEENTURNED OFF BEFORE SERVICING MADE IN CHINA...
- Page 4 Energier MobileUser Manual Disclaimer Unless specially agreed in writing, TBB Power Co.,Ltd Take no warranty as to the accuracy, sufficiency of suitability of any technical or other information provided in this manual or other documentation. Assumes no responsibility or liability for loss or damage, whether direct, indirect, consequential or incidental, which might arise out of the use of such information.
-
Page 5: Table Of Contents
Energier Mobile User Manual Contents 1. General Safety Instruction ....................1 1.1 Safety instruction ....................1 1.2 General precaution .................... 1 1.3 Precaution regarding battery operation .............. 1 2. Instruction ........................... 2 2.1 Brief Instruction ....................2 2.1.1 General Description ................. 2 2.1.2 Naming Rules .................. -
Page 6: General Safety Instruction
Energier Mobile User Manual 1. General Safety Instruction Safety instruction As dangerous voltages and high temperature exist within the Energier Mobile Inverter Charger Combination, only qualified and authorized maintenance personnel are permitted to open and repair it. Please make sure Energier Mobile Inverter Charger Combination is turned off before opening and repairing it. -
Page 7: Instruction
Energier Mobile User Manual 2. Instruction Brief Instruction 2.1.1 General Description Energier Mobile is the new generation Inverter Charger Combination designed for various on-board power application such as for RV, Utility Vehicle, Marine etc. Energier Mobile delivers high reliability, performance and industry leading efficiency for mission critical application. -
Page 8: Structure

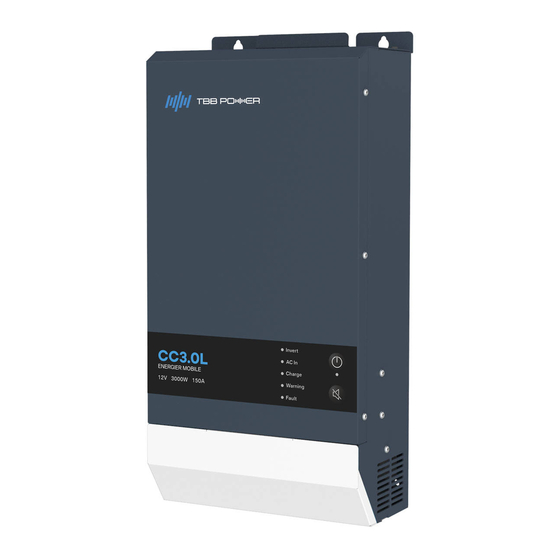

Energier Mobile User Manual Structure 2.2.1 Front Figure 2-1 Inverter Charger Combination structure in front view 2.2.2 Control panel Mode LED Indication ON/OFF Power LED Indication Mute & Unlock the fault and alarm Figure 2-2 Inverter Charger Combination Control buttons... -
Page 9: Remote Control And Monitor Mck
Energier Mobile User Manual Table 2-1 LED directive function Function Invert It will illuminate when CC is inverting. AC In It will flash when CC detect any input, mains or generator. It will flash when CC is in float charging. Charge ... -
Page 10: Connection Compartment
Energier Mobile User Manual 2.2.4 Connection compartment Figure 2-4 Signal terminal Table 2-2 Signal terminal introduction Silk-screen Definition ① Bat Sample Battery temperature and voltage sample. ② Remote A dry contact input for remote on/off, often IGN was connected. ③ Com MON RS485 port for external monitor such as MCK, SNMP etc. -
Page 11: Dimension
Energier Mobile User Manual 2.2.5 Dimension Figure 2-5 Dimension of Inverter Charger Combination Function 2.3.1 Powerful and Reliable Inverter High performance pure sine wave Energier Mobile is a pure sine wave inverter generating a near perfect sinusoidal AC wave power output that is very similar or even better to what you can get from your utility grid. -
Page 12: Professional Battery Charger For Lead Acid Battery
Energier Mobile User Manual 2.3.2 Professional Battery Charger for lead acid battery Multi stage sophisticated charging algorithm for lead acid battery Fitted with multistage charging algorithm (bulk-absorption-float-recycle), the built-in charger of Energier Mobile is designed to charge battery quickly and fully. Microprocessor controlled charging algorithm with variable absorption charging timer could guarantee the optimal charging for batteries of different discharged state. -
Page 13: Protect Function
Energier Mobile User Manual Built in BMS pre-defined LFP charging and communication. According to cell temperature and real time SOC, BMS will send command to battery charger asking for optimum charging voltage and current. This synchronization will prevent overheating or overcharging especially at the end of charging, to ensure the lithium battery reaches its target cycle life In the meantime, instead of using voltage as protection, SOC value is used with more accuracy... -
Page 14: Installation And Wiring
Energier Mobile User Manual 3. Installation and Wiring Please refer to "Quick Installation Guide". Keep away from fire, avoid direct sunlight and rain; do not store flammable, explosive or corrosive gases or liquids in the working environment. Don't install in a working environment with metal conductive dust. ... -
Page 15: Operation
Energier Mobile User Manual 4. Operation Check before Operation Please check before Operation according to the following. Inverter is installed correctly and steady. Reasonable cable layout to meet customer requirements. Make sure the grounding is reliable. Make sure the ground wire is properly connected and firm and reliable. ... -
Page 16: Configuration
Energier Mobile User Manual 5. Configuration Settings may only be changed by a qualified electrical engineer. Read the instructions thoroughly before implementing changes. During setting of the charger, the AC input must be removed. Default Setting Table 5-1 CC2.0L/CC3.0L factory settings Rate AC Voltage 230VAC System... -
Page 17: Tbb Link
Energier Mobile User Manual 5.2.2 TBB Link The TBB Link is a powerful tool or CC3.0L series inverter Configuration. The TBB Link can be installed on the computer, open the TBB Link and turn on the inverter, the inverter can be configured. -
Page 18: Specification
Energier Mobile User Manual 6. Specification Model CC2.0L CC3.0L AC inputs Input voltage range:175~265 VAC, Input frequency:45~65Hz AC input Current 32A (transfer switch) Inverter Nominal battery voltage 12VDC Input voltage range 10.5~17VDC Output Voltage: 220/230/240 VAC ± 2%, Frequency: 50/60 Hz ± 0.1% Harmonic distortion <2% Power factor... - Page 19 Energier Mobile User Manual...
- Page 20 Energier Mobile User Manual...
