Summary of Contents for TBB power Kinergier Pro Series

  • Page 2 Kinergier Pro User Manual WARNING: HIGH VOLTAGE INSIDE CAUTION: THE DC FUSE MUST HAVE BEENTURNED OFF BEFORE SERVICING MADE IN CHINA...
  • Page 3 Kinergier Pro User Manual Disclaimer Unless specially agreed in writing, TBB Power Co.,Ltd  Take no warranty as to the accuracy, sufficiency of suitability of any technical or other information provided in this manual or other documentation.  Assumes no responsibility or liability for loss or damage, whether direct, indirect, consequential or incidental, which might arise out of the use of such information.

  • Page 4: Table Of Contents

    Kinergier Pro User Manual Contents 1. General Safety Instruction ....................1 1.1 Safety instruction....................1 1.2 General precaution................... 1 1.3 Precaution regarding battery operation ............1 2. Instruction ......................... 2 2.1 Brief Instruction....................2 2.1.1 General Description ................. 2 2.1.2 Naming Rules ..............
  • Page 5 Kinergier Pro User Manual 5. Operation ........................15 5.1 Menu introduction .................... 15 5.2 Initial interface ....................16 5.3 Main Menu ....................... 16 5.4 Tier one menu - Information query interface ............. 17 5.5 Tier one menu - configuration interface ............19 5.5.1 General operation instruction ..............

  • Page 6: General Safety Instruction

    Kinergier Pro User Manual 1. General Safety Instruction 1.1 Safety instruction As dangerous voltages and high temperature exist within the Kinergier Pro Inverter Charger, only qualified and authorized maintenance personnel are permitted to open and repair it. Please make sure Kinergier Pro Inverter Charger is turned off before opening and repairing it. This manual contains information concerning the installation and operation of the Kinergier Pro Inverter Charger.

  • Page 7: Instruction

    Kinergier Pro User Manual 2. Instruction 2.1 Brief Instruction 2.1.1 General Description Kinergier Pro is the new generation inverter charger designed for various type of off grid system including AC Coupled PV System, DC Coupled PV System and generator hybrid system. It can provide UPS class switching speed and capability to support parallel as well as composing three phase system.

  • Page 8: Structure

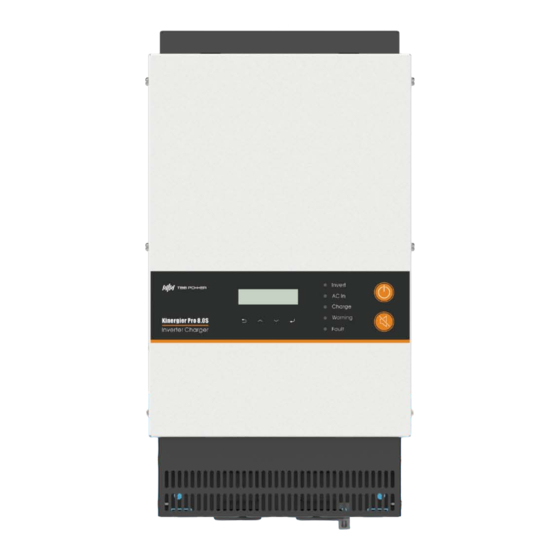

    Kinergier Pro User Manual 2.2 Structure 2.2.1 Front Figure 2-1 Inverter Charger structure in front view 2.2.2 Control panel ON/OFF MUTE & Unlock the fault and alarm Cancel/Back Page up Page down Enter LCD Operation Button Figure 2-2 Inverter Charger control buttons...
  • Page 9 Kinergier Pro User Manual Table 2-1 Control Buttons Button Function  Cancel the selection.  Display the previous level of menu.  Display the previous page.  Increase the value of the selected item.  Press the button for more than 2 seconds to scroll the page up. ...

  • Page 10: Connection Compartment

    Kinergier Pro User Manual 2.2.3 Connection compartment Inverter Charger signal terminal definition ComMON Remote Figure 2-3 Signal terminal Table 2-3 Signal terminal introduction Silk-screen Definition Bat Sample Battery temperature and voltage sample. Remote Dry contact input control, remote ON/OFF control. Com MON Connected to the connector K by default.

  • Page 11: Dimension

    Kinergier Pro User Manual Figure 2-4 Power terminal 2.2.4 Dimension Figure 2-5 Dimension of Inverter Charger (CK4.0M,CK5.0M,CK4.0S,CK5.0S,CK6.0S,CK8.0S)

  • Page 12: Function

    Please refer to 5.5.2.1 for explanation in details. It is recommended to use IG series PV inverter from TBB Power to compose AC Coupled PV System. In case you want to use third party PV inverter, please consult with TBB Power sales.

  • Page 13: Professional Battery Charger

    Kinergier Pro User Manual suitable for heavy inductive loads like fridge, coffee maker, microwave, power tools, air conditioner, etc. Battery low voltage protect Kinergier Pro provides configurable battery low voltage protection. 2.3.7 Professional Battery Charger Multi stage sophisticated charging algorithm for lead acid battery Fitted with multistage charging algorithm (bulk-absorption-float-recycle), the built-in charger of Kinergier Pro is designed to charge battery quickly and fully.
  • Page 14 Kinergier Pro User Manual Kinergier Pro offers premium charging algorithm for commonly encountered lead acid battery chemicals including AGM, GEL, Flooded, lead-carbon and Lithium battery which you can set through LCD interface and TBB Link software. Lithium Battery Compatible Kinergier Pro has built-in communication compatible with for Super L lithium battery from TBB. Manual Equalization It is strongly recommended to read this section carefully before you start the EQ charging and don’t leave battery unattended while performing desulfuration.

  • Page 15: Transfer

    Kinergier Pro User Manual  Battery manufactures’ recommendations on equalization vary. Always follow the battery manufacturer’s instructions so batteries can be properly equalized. As a guide, a heavily used battery may require equalization once a month while a battery in light duty service, only needs equalizing once every 2 to 4 months.

  • Page 16: Communication

    Kinergier Pro User Manual Over temperature protection When the internal temperature is too high, Kinergier Pro will enter into the over-temperature protection. After the internal temperature returns to normal, it can automatically resume normal operation. Short circuit protection The equipment will automatically shut down when the AC output is shorted and needs to be manually activated.

  • Page 17: Installation And Wiring

    Kinergier Pro User Manual 3. Installation and Wiring Please refer to "Quick Installation Guide". Keep away from fire, avoid direct sunlight and rain; do not store flammable, explosive or corrosive gases or liquids in the working environment. Don't install in a working environment with metal conductive dust. ...

  • Page 18: Configuration

    Kinergier Pro User Manual 4. Configuration 4.1 Check before Operation Please check before operation according to the following.  Inverter is installed correctly and steady.  Reasonable cable layout to meet customer requirements.  Make sure the grounding is reliable. ...

  • Page 19: Setup Wizard

    Kinergier Pro User Manual 4.4 Setup Wizard For the purpose of a quick configuration, upon turning on Kinergier Pro for the first time or after restoring the factory settings, the equipment will enter the setup wizard automatically covering all basic setting you need to perform. Please refer to 5.5.2 for detailed explanation for each parameter.

  • Page 20: Operation

    &Establish communication MPPT 1# Warn: 06 <Down> <Up> 0.9kWh with the inverter T_BatExt_OT &Get the Type E_ACin_Consume: …… 3.9kWh TBB Power <Enter> E_ACin_Feedback: >Statistic Data 1.2KWh cycle display in normal state <Back> E_INV_Discharge: Kinergier Pro 2018-07-20 13:26 3.2KWh Inverter On <Down>...

  • Page 21: Initial Interface

    Once the inverter is powered on, the following screen will display manufacturer name and model number. In case of communication failure between LCD and inverter, there will be a alarm displayed as well. Logo Model Series TBB POWER Kinergier Pro Com error warning Inverter Warn 30 Comm_Inner_Err 5.3 Main Menu...

  • Page 22: Tier One Menu - Information Query Interface

    50.00 Hz 0.18 V F_ACout 50.00 Hz Select MPPT, press <Enter> button you can approach all the active running data of Solar Mate MPPT. Please notice, this data will be only available upon you install Solar Mate MPPT from TBB Power.
  • Page 23 32℃ Select PV inverter, press <Enter> button you can approach all the active running data of IG PV inverter. Please notice, this data will be only available upon you install IG PV inverter from TBB Power. U_PV 112.2 V U_AC 230.1 V...

  • Page 24: Tier One Menu - Configuration Interface

    Kinergier Pro offers unlimited possibility for users to program the inverter and system for different configurations, systems and applications. The configuration can be done by combination of four switches on the front panel or through TBB Link software supplied by TBB Power.
  • Page 25 Kinergier Pro User Manual The following chapters explain how to configure the parameters through combination of switches.  Scroll to the “Parameter Set” screen and press “Enter” to confirm.  This menu was protected by password. The default password is “1000” and it can be changed by clients.

  • Page 26: Parameter Set

    Kinergier Pro User Manual 5.5.2 Parameter set A password is required when entering the parameter setting interface. The default is '1000' and it can be changed. This menu contains the following sub-menus for settings: >Parameter Set >Para_System >Para_Battery >Para_ACin >Setup Wizard >Error Shielding Para_Mode Para_Inverter...
  • Page 27 Kinergier Pro User Manual Solar System sub-menu offers the approach to compose DC Couple or AC Coupled PV Systems using Kinergier Pro.  When you are composing the DC Coupled PV System, all the parameters you configure with Kinergier Pro will be updated automatically with Solar Mate MPPT. ...
  • Page 28 Kinergier Pro User Manual BGK_System: Item Setting range Description 0-N/A For 24Vdc system, please set 2. BGK_Module 1-BGK-12 For 48Vdc system, please set 1. BGK_System 2-BGK-Balancer Default: 0-N/A The BGK-12's address can be BGK_Restart Trigger BGK to Restart reset. 5.5.2.2 Para_Mode Para_Mode: Item Setting range...
  • Page 29 Default: Inverter will be controlled through membrane switch at front panel. Mobile : It is designed for mobile application. An external remote panel 0-Default MCK can be purchased from TBB Power Main_Switch_SEL 1-Mobile to control the inverter working either at 2- REGO System normal mode or charger only mode.
  • Page 30 Kinergier Pro User Manual 5.5.2.3 Para_Battery With this menu, you can configure comprehensive parameters related with battery and battery charging. There are three sub-menus including Basic Set, Advanced Set and EQ Control and Setting which are only applicable for flooded and traction battery. Basic Set Item Setting range...
  • Page 31 Kinergier Pro User Manual Advanced Set The following parameter are based on the 12Vdc battery. If you are using 2Vdc battery to compose the battery bank, please multiply your intended voltage by 6 to enter each value. Item Setting range Description Allowed maximum charging current of the battery bank.
  • Page 32 Kinergier Pro User Manual Default: 9.9V Minimum Bulk time. Min_Bulk_Time 10~600min Default: 30min Maximum absorption time. Note: the allowed max time varies Max_Absorp_Time 1~120h according to battery type selected. Default: 8h Absorption cycle time. Auto_CHG_Cycle 8~960h Default: 240h Enable the charging temperature 0-Disable CHG_T_Compensate compensation.
  • Page 33 Kinergier Pro User Manual EQ Ctrl_Set (This function is only applicable for the flooded battery and traction battery.) Item Setting range Description EQ charging Switch When choosing 1, you can turn on the EQ charging and it will auomaticlaly quit 0-OFF EQ_Command after performing the EQ charging.
  • Page 34 Kinergier Pro User Manual 120~140V 175V@230Vac Model @120Vac 85V@120Vac Model 51~59Hz @50Hz Maximum AC in input frequency ACin_F_Max 61~69Hz @60Hz Default: 55Hz 41~49Hz @50Hz Minimum AC in input frequency ACin_F_Min 51~59Hz @60Hz Default: 45Hz AC input harmonic adaptation mode. Note: When the AC in input harmonic is too large and the inverter cannot track its phase, select ‘1-Weak AC Input' to enable 0-Normal...

  • Page 35: User Control

    Kinergier Pro User Manual Item Setting range Description Whether to hide the ACin_LV Warning. For the UPS application, it 0-Display ACin_LV Warn is recommended to enable this 1-Shield alarm. Default: 1-Shield Error Shielding Whether to hide the offline warning 0-Display MPPT Offline of Solar Mate MPPT.
  • Page 36 Kinergier Pro User Manual Under this mode, the load will be powered by PV and battery. Only when the battery reaches discharged warning level, Kinergier Pro will take AC in (grid or generator) to charge the battery. Once battery reaches absorption stage or lithium battery BMS sending signal, Kinergier Pro will stop charging and use battery to power the load.

  • Page 37: Relay Function

    Kinergier Pro User Manual >ACin Logic >ACin CHG Derate ACin_CHG_Normal Working Mode 100% ACin_CHG_Bat_LV 100% <Back> Acin CHG Derate Working Mode >Working Mode >Working Mode 0- ACin First <Back> Working Mode Working Mode Trigger ACin_CHG 1- BATT First >ACin_CHG_CMD <Send?> <Back>...

  • Page 38: Ags Driver

    Kinergier Pro User Manual 1-OverLoad/OT 2-INV Fault 3-ACin Error 4-ACin Charging 5-ACin Ready 6-ACin Voltage 7-Fan Running 8- MPPT/ACin CHG 9- PV Voltage 10- BMS Alarm 11-SOC Normal Both relay 1 and 2 will perform as AGS driver. Please 2-AGS Driver refer to 5.6.3 for explanation in details.
  • Page 39 Kinergier Pro User Manual GEN Command ON GEN Command OFF Relay 1 Turn Off Delay Turn On Delay Relay 2 Turn On Delay Pulse Time Item Setting range Description See ' AGS Driver Set the Relay1 and Relay2 to Generator Control AGS Driver Set See Relay1 and Relay2 parameter setting Set Table '...

  • Page 40: Acout2 Logic

    Kinergier Pro User Manual AGS Logic Set Diagram >AGS Logic Set CHG Start Ubat 11.5V CHG Stop Ubat >AGS Logic Set CHG Start SOC 13.5V CHG Stop Float CHG Stop SOC This mode is not 1- Enable applicable to TBB CHG Start Delay This mode is CHG Start Delay...

  • Page 41: Screen Set

    Kinergier Pro User Manual >ACout2 Logic Logic Mode 0- Default <Back> Logic Mode Logic Mode ACout2 OFF Ubat ACout2 OFF Ubat：Turn off the 1- Ubat Ctrl >ACout2 ON/OFF 11.5V voltage threshold of the ACout2. ACout2 ON Ubat ACout2 ON Ubat：Turn on the voltage threshold of the ACout2.

  • Page 42: Faq

    Kinergier Pro User Manual 6. FAQ 6.1 Error code 6.1.1 Inverter Error Error Code Description Solution U_Bus_OV DC bus is over voltage Check the battery voltage. Check the battery connection and U_Bus_LV DC bus is under voltage voltage. Hardware protection against Check the battery voltage and the U_Bus_HW_Pro DC bus over voltage...

  • Page 43: Mppt Error

    Kinergier Pro User Manual 6.1.2 MPPT Error Error Code Description Solution U_Bus_OV DC bus is over voltage Check the PV input voltage. U_BAT_OV DC bus is under voltage Check the battery voltage. Check if there is a short circuit at the Buck_ShortCut Buck short circuit MPPT output.

  • Page 44: Warning Code

    Kinergier Pro User Manual 6.2 Warning code 6.2.1 Inverter Warning Warning Code Description Solution U_BAT_OV Battery is over-voltage Check the battery voltage. U_BAT_LV Battery is under-voltage Check the battery voltage. Battery is under-voltage U_BAT_LV_Fault Check the battery voltage. protection Overload Overload warning Reduce the load.

  • Page 45: Mppt Warning

    Kinergier Pro User Manual AC input phase sequence ACin_PhaseErr is abnormal The voltage between N 1.Check the ACin L-N connection. U_NEU_2_GND_Err and GND is abnormal 2.Check the GND connection. Communication between Open the case, check all the inner Comm_Inner_Err the inverter and DSP is connection.

  • Page 46: Bms Warning

    Kinergier Pro User Manual 6.2.3 BMS Warning Warning Code Description Module_HV Lithium battery module is over voltage. Module_LV Lithium battery module is under voltage. Module_HT Lithium battery module's temperature is too high. Module_LT Lithium battery module's temperature is too low. Lithium battery module's discharge current is over normal Discharge_HC value.

  • Page 47: Specification

    Kinergier Pro User Manual 7. Specification Model CK4.0M CK5.0M CK4.0S CK5.0S CK6.0S CK8.0S Power Assist AC inputs Input voltage range:175~265 VAC, Input frequency:45~65Hz AC input Current 50A (transfer switch) Inverter Nominal battery voltage 24VDC 48VDC Input voltage range 21~34VDC 42~68VDC Output Voltage: 220/230/240 VAC ±...
