Summarization of Contents
Precautions
Servicing Guidelines
Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.
Trademarks and Copyright
Details ACTi's registered trademarks and general liability information for the manual.
Liability Statement
ACTi is not responsible for typographical or technical errors and reserves the right to make changes.
Safety Instructions
Cleaning Procedures
Disconnect this product from the power supply before cleaning.
Recommended Accessories and Parts
Use only accessories and repair parts recommended by the manufacturer.
Water and Moisture Protection
Install devices with the camera in a dry place protected from weather.
Servicing and Safety Checks
Guidelines for servicing, handling damage, and performing safety checks on the camera.
Introduction to Zoom Bullet Series
List of Supported Models
Details the various camera models included in this hardware manual, such as B41, B44, B45, etc.

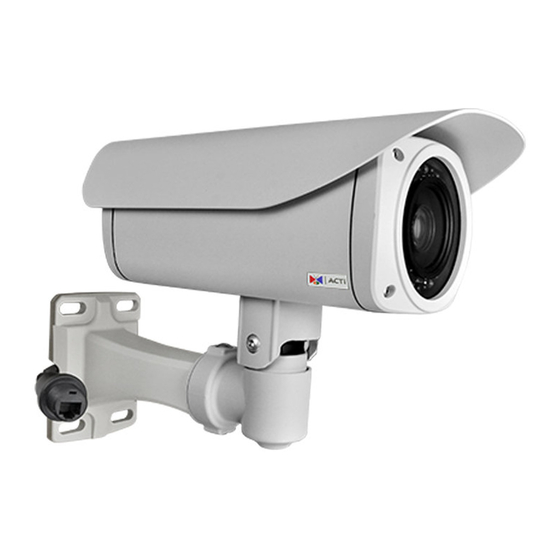

Physical Description of the Camera
Ethernet Ports Description
Details the Ethernet ports on the camera, including the 'pigtail' and housing connectors.
Memory Card Slot Function
Explains the purpose and use of the memory card slot for local recording.
Mounting Options
Wall Mount Installation
Suitable when mounting the camera directly on walls using the integrated bracket.
Gang Box Converter Mounting
For locations requiring gang boxes, attaching the camera to the converter with its bracket.
Ceiling Mount Installation
Suitable for mounting the camera on the ceiling; the integrated bracket must be removed first.
Vertical Pole Mount Installation
Suitable for mounting the camera on vertical poles.
Installation Procedures
Prepare for Installation
Steps for preparing the wall, including drilling holes for cable and screws, and inserting plugs.
Attach the Sunshield
Instructions for attaching and adjusting the sunshield to the camera.
Install the Camera
Procedures for mounting the camera to the wall using screws.
Waterproof and Connect Network Cable
Guidance on waterproofing the cable connection and connecting the network cable.
Connect to Network
Details on connecting the camera to a network switch or injector, including PoE.
Access Camera Live View
Instructions on how to access the camera's live video feed.
Adjust Viewing Angle
How to adjust the camera's tilt and pan angles for optimal viewing.
Waterproof Solution Using the Pigtail
Use Female Cable Gland
Step-by-step guide on using the female cable gland to waterproof the 'pigtail' with an exterior-grade Ethernet cable.
Use Female Conduit Gland
Instructions for using the female conduit gland and flexible conduit for waterproofing when an exterior-grade cable is not available.
Waterproof Solution Using Camera Connectors
Use Male Cable Gland (Optional)
Guide to waterproofing cables using the male cable gland for replacing the 'pigtail'.
Use Male Conduit Gland
Instructions for waterproofing cables using the male conduit gland and flexible conduit for various device connections.
Other Connections
Connect Power Adapter (Optional)
Procedure for connecting a power adapter to the camera via the terminal block when PoE is not used.
Connecting DI/DO and Audio Devices (Optional)
Details on connecting digital input/output and audio devices to the camera using terminal blocks.
Other Adjustments and Accessories
Remove the Pigtail Cable
Step-by-step guide to removing the camera's 'pigtail' Ethernet cable.
Insert Memory Card
Instructions for inserting a microSDHC or microSDXC card into the camera's memory card slot.
Accessing the Camera
Configure IP Addresses
Details on setting up IP addresses for camera and PC communication, using DHCP or manual configuration.
Access Camera via Web Browser
Guidance on accessing the camera's web interface, including browser compatibility and login details.
