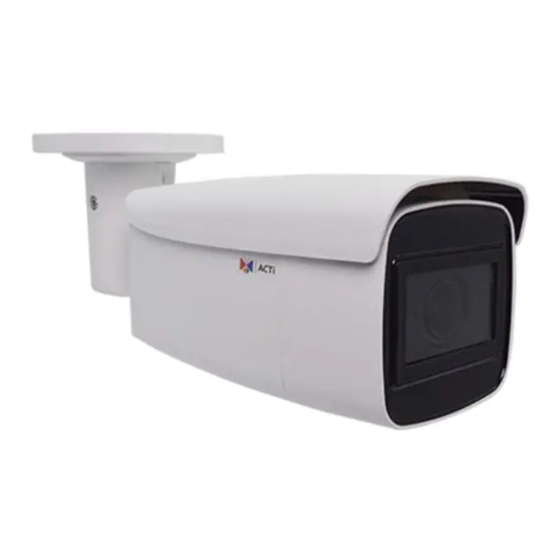

Zoom bullet camera

Advertisement

Quick Links

Zoom Bullet Camera
Hardware Manual
B419-P2
2021/01/26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B419-P2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ACTi B419-P2

  • Page 1 Zoom Bullet Camera Hardware Manual B419-P2 2021/01/26...
  • Page 2: Table Of Contents

    How to Install / Remove the Memory Card ........18 Accessing the Camera Configure the IP Addresses ............19 Using DHCP Server to Assign IP Addresses ........ 19 Using the Default Camera IP Address .......... 21 Access the Camera ................. 23 www.acti.com...
  • Page 3: Precautions

    Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. ACTi will not be held responsible for any typographical or technical errors and reserves the right to make changes to the product and manuals without prior notice.
  • Page 4 This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com...
  • Page 5: Safety Instructions

    Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine if the product is in proper operating condition. www.acti.com...
  • Page 6: Introduction

    Hardware Manual Introduction Package Contents Camera Mounting Screw Kit Cable Gland with Washer Quick Guide & Wrench Drill Template Warranty Card Warranty Card Drill Template www.acti.com...
  • Page 7: Physical Description

    Connects to a video output device, such as a camera installation kit or monitor for testing. Use the bundled video output connector to connect to an external monitor. This connection is used for installation only. Memory Card Slot Insert a memory card into the slot for local recording. www.acti.com...
  • Page 8: Installation Procedures

    If the cable will be routed along the surface, route the cable through the gap on the bracket. For outdoor installations, you may need to purchase the optional junction box to protect the cables, contact ACTi Sales for details. 3. Mount the camera to the surface using four (4) screws.
  • Page 9 Hardware Manual 5. Adjust the camera angle and orientation. Sample of Wall Installation Sample of Ceiling Installation 6. Tighten the screw to fix the tilt angle position. www.acti.com...
  • Page 10: Step 2: Waterproof The Ethernet Cable

    Use the bundled cable gland for the Ethernet connector and use waterproof tape to protect the other cable connection. An optional Junction Box is available for purchase, contact ACTi sales for details.
  • Page 11 Hardware Manual 3. Insert the clamping nut into the Ethernet cable. 4. Insert the sealing insert through the Ethernet cable. 5. Insert the cable through the gland body. 6. Push the sealing insert into the gland body. www.acti.com...
  • Page 12 8. Attach the gland body to the camera connector. 9. Attach the clamping nut to the gland body to complete the cable solution. NOTE: Make sure the clamping nut is tightly attached to the cable gland body and the sealing insert is squeezed tightly. www.acti.com...
  • Page 13: Step 3: Connect To Network

    Step 4: Access the Camera Live View After making the connections, access the camera live view to adjust the viewing angle of the camera and configure the settings according to your preference. See Accessing the Camera on page 19 for more information. www.acti.com...
  • Page 14: Other Connections

    In case of using a non-PoE switch or your PoE switch has a limited power supply, you can purchase a power adapter and directly connect the camera to a power outlet. NOTE: The power adapter is not bundled in the package. After connecting the power adapter, waterproof the cable connection by using waterproof tape. www.acti.com...
  • Page 15: Connecting Digital Input / Output Devices (Optional)

    Loosen the screw and insert the wire through the pin slot, then tighten the screw to secure the wire. To connect the digital input / output devices, map the pins to the corresponding pin combinations: www.acti.com...
  • Page 16 NOTE: For more information on DI/DO connections, please refer to the Knowledge Base article All About Digital Input and Digital Output downloadable from the link below (http://Download.acti.com?id=516). www.acti.com...
  • Page 17: Connecting Audio Devices (Optional)

    DISCLAIMER: ACTi will not be responsible for camera damage due to water leakage caused by improper waterproofing of cables. www.acti.com...
  • Page 18: Other Accessories

    1. Using the bundled wrench, loosen the two (2) screws to remove the cover. 2. Push the microSD card into the memory card slot with the metal contacts facing the lens. 3. Secure the two (2) screws to attach the cover. Make sure the rubber on the cover is in place. www.acti.com...
  • Page 19: Accessing The Camera

    Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras. In the example below, we successfully found the camera model that we had just connected to the network. www.acti.com...
  • Page 20 The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility With just one click, you can launch the IP Utility and there will be an instant report as follows: You can quickly see the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.
  • Page 21: Using The Default Camera Ip Address

    PC has to be configured to match the network segment of the camera. Manually adjust the IP address of the PC: In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com...
  • Page 22 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
  • Page 23: Access The Camera

    When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case. www.acti.com...
  • Page 24 The HTTP port number was not added behind the IP address since the default HTTP port of the camera is 80, which can be omitted from the address for convenience. When you login, you will be asked to set a password. Follow the on-screen instructions to continue. www.acti.com...
