VN-T216VPRU
FIXED HD IP DOME CAMERA
QUICK GUIDE

Advertisement

   Related Manuals for JVC VN-T216VPRU

   Summary of Contents for JVC VN-T216VPRU

  • Page 1

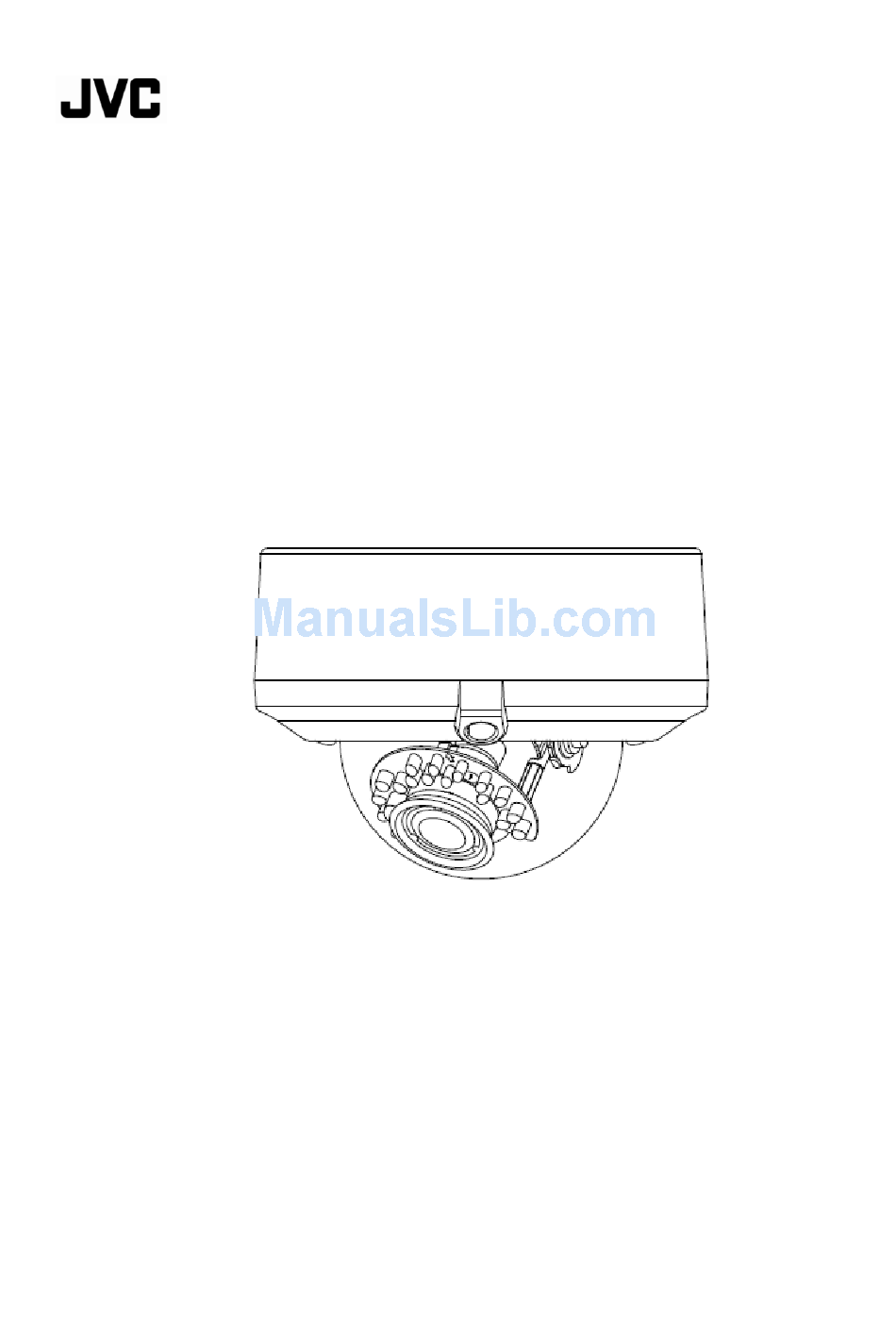

    VN-T216VPRU FIXED HD IP DOME CAMERA QUICK GUIDE...

  • Page 2: Table Of Contents

    Contents Introduction .......................... 2 Unpack Everything ......................... 2 Preparation ..........................2 Camera Installation......................... 2 Disassembling the Camera ....................3 Connecting the Wiring....................... 3 Adjusting the Camera Position................... 5 Mounting the Camera ....................... 6 Locking the Camera......................8 Network Configuration: Setting Network Camera Environment ..........8 Setting IP .........................

  • Page 3: Introduction

    1 Introduction Thank you for purchasing the camera. Before installing it, read the guide carefully and check the model. For more information, please refer to the INSTRUCTIONS on CD-ROM. Unpack Everything Ÿ FIXED HD IP DOME CAMERA Ÿ WARRANTY CARD Ÿ...

  • Page 4: Disassembling The Camera

    Disassembling the Camera Gently remove the screw to take off camera housing (4). Set the camera housing (5) and liner aside. Connecting the Wiring Connect the power supply cable to the power connectors. Select one of the following options. Ÿ Inset power cable for AC24V Connect 24 V (~) cables to terminals ~AC24V.

  • Page 5

    Washer (for Wire) Screw (for Wire) Safety Wire (Fall Prevention Wire, not supplied) Ÿ Connect the wiring then place the camera to a proper position by pushing the button.

  • Page 6: Adjusting The Camera Position

    Adjusting the Camera Position The dome camera has three axes for positioning the camera. While monitoring the picture on the monitor, adjus t the camera position as follows: Pan Adjustment (A) For Wall Mount and Tilted Ceilings Rotate the lens base (maximum360°...

  • Page 7: Mounting The Camera

    Mounting the Camera Ÿ Place the guide pattern sticker (supplied) on the mounting surface and mark three holes according to the guide pattern sticker. Then fasten the sticker to the mounting surface with screws. Ÿ Connect the Safety Wire (Fall Prevention Wire, not supplied) to the camera and the ceiling.

  • Page 8

    4S Electrical junction box(Optional) Secure the mounting kit (optional) to 4S Electrical box using 2 appropriate screws. Then secure the camera case to mounting kit using 2 appropriate screws. Tuck the cables in the 4S Electrical box. Adjust the view angle (zoom, focus, and Horizontal Rotation). Attach the camera housing.

  • Page 9: Locking The Camera

    ” appears, it means the connection is done. Start Internet Explorer and enter IP address: 192.168.0.2. A login window will appear. Enter the default user name: admin and password: jvc to log in. Images of the camera can be viewed through Internet Explorer. Before viewing, follow these steps to enable the display.

  • Page 10

    In Internet Explorer, click Internet Options on the Tools menu. On the Privacy tab, move the settings slider to Low or Accept All Cookies . Click OK. When a proxy server is used, click Internet Options on the Tools menu of Internet Explorer, select Connect tab, click LAN button, and set proxy server.

  • Page 11

    ¡i Automatic prompting for ActiveX controls¡j è Enable ¡i Run ActiveX controls and plug-ins ¡j è Enable ¡i Script ActiveX controls marked safe for scripting*¡j è Enable Press OK to save the settings. Close all Internet Explorer windows and start a new window.

  • Page 12: Using "ip Finder" To Search Camera's Ip Address

    Using “IP Finder” to Search Camera’ s IP Address The IP Finder is a tool which helps users to find VN-T16/216 series network cameras in the LAN which your computer is connected. Please note that IP Finder is only compatible with Windows 7, windows Vista and Windows XP.

  • Page 13: Notice Of Use

    2 Notice of Use This manual is designed for administrators and users of the network camera. Please read it carefully before use. All requirements should be followed before using this camera. Keep this document for future reference. Please make sure the power source is AC24V / PoE. Only connect the camera to this power system.

  • Page 14: Warnings

    3 Warnings Installation and maintenance should be performed only by qualified and experienced technicians to conform to all local codes and to maintain your warranty. DANGER! AC24V models require the use of CSA Certified/UL Listed Class 2 power adapters to ensure compliance with electrical safety standards.

  • Page 15: Specifications

    5 Specifications Operational Specifications Image device 1/2.7-type Mega-pixel CMOS sensor Sensitivity Color:0.6 lx, B/W: 0 lx (50% ) Day/Night True D/N IR-LED Yes (IR Distance 15m) Auto Gain Control Off/On, selectable ATW (2800K¡ã8500K) and Manual White Balance PAL:1/25~1/10000 sec Electric Shutter NTSC: 1/30~1/10000 sec Noise Reduction 3 Axis Gimbals...

  • Page 16

    NTSC: 1080P(1920 x 1080), 720P(1280 x 720), D1(720 x 480), 4CIF(704 x 480), VGA(640 x 480), CIF(352 x 240), QVGA(320 x 240) Resolution PAL: 1080P(1920 x 1080), 720P(1280 x 720), D1(720 x 576), 4CIF(704 x 576), VGA(640 x 480), CIF(352 x 288), QVGA(320 x 240) PAL: Up to 25fps Image Frame Rate...

  • Page 17

    Power Input: removable terminal block Network: RJ45 connector Connectors Audio In/out: removable terminal block Alarm In/out: removable terminal block Environmental Operating -10°C to 50°C Temperature Operating Humidity 0% to 90% Storage Temperature -20°C to 60°C © 2012 JVC KENWOOD Corporation...
