Summary of Contents for Sophos XGS 6500

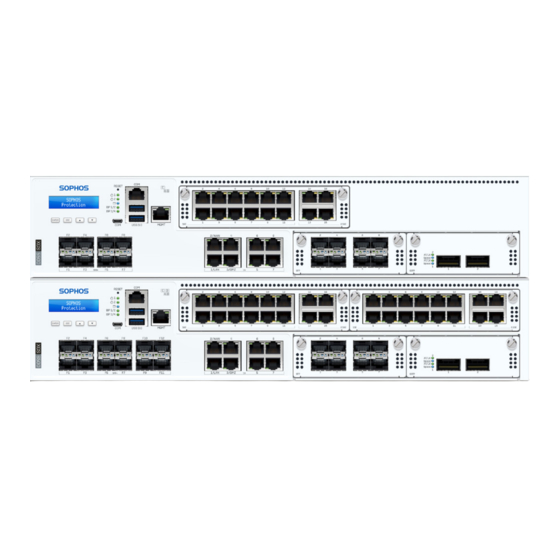

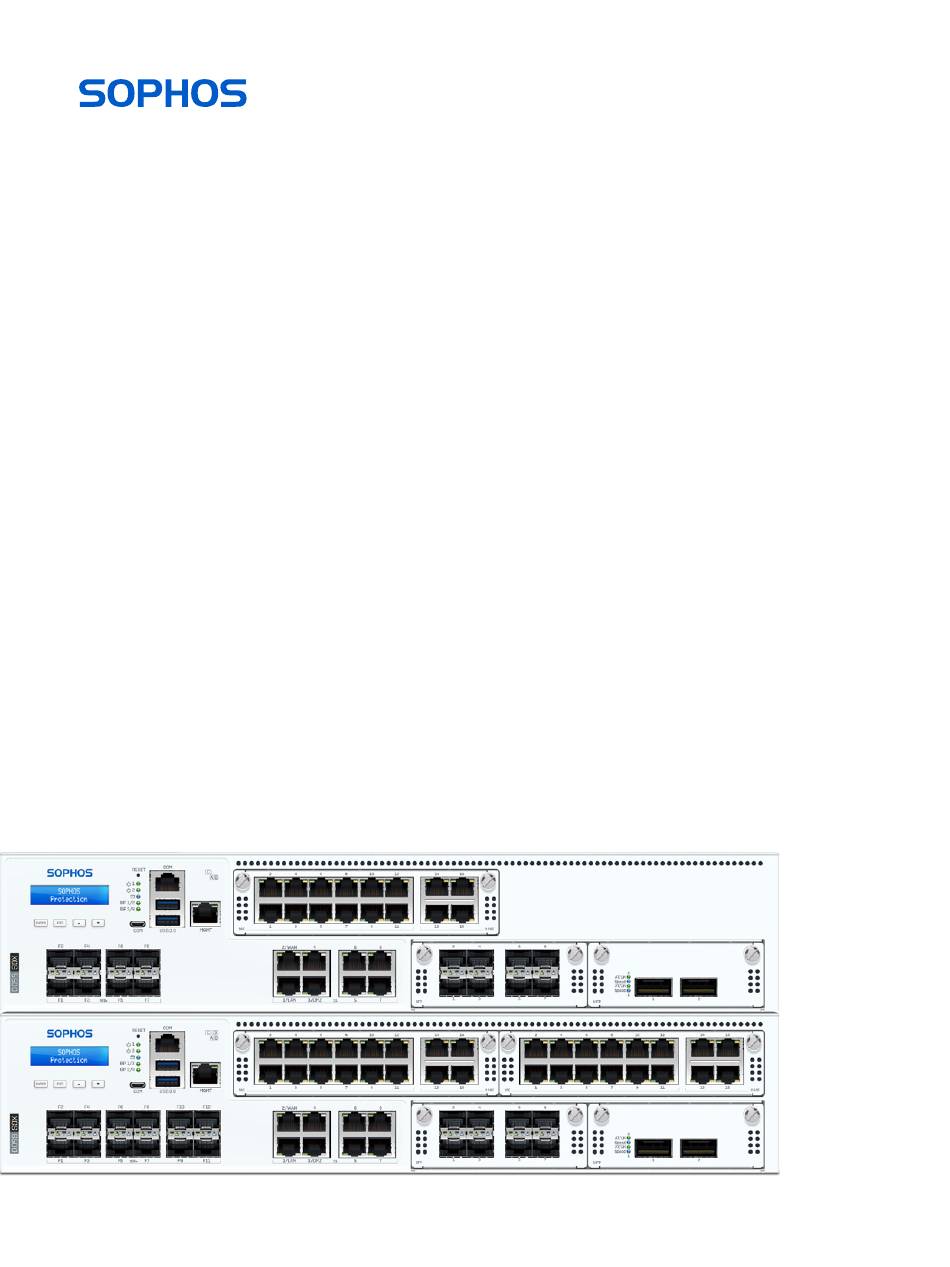

- Page 1 Operating Instructions XGS 5500/6500...
-
Page 2: Security Symbols
Operating Instructions Foreword We are pleased to welcome you as a new customer of our Sophos XGS appliances. To install and configure the hardware appliance you can use the following documents: Hardware Quick Start Guide: Connection to the system peripherals in a few steps... -
Page 3: Operating Elements And Connections
Operating Instructions CE Labeling, FCC and Approvals The XGS 5500/6500 appliances comply with FCC Class A, CE, C-Tick, VCCI and UL. Important Note: For computer systems to remain CE and FCC compliant, only CE and FCC compliant parts may be used. Maintaining CE and FCC compliance also requires proper cable and cabling techniques. - Page 4 12 port GbE copper + 4 port 2.5 GbE copper High-density Flexi Port * SFP/SFP+/QSFP transceivers are sold separately. **Please note: For electromagnetic reasons, please only use shielded RJ45 Ethernet cables on the indicated ports of this module. XGS 5500/6500...
-
Page 5: Technical Specifications
Operating Instructions Technical Specifications XGS 5500 XGS 6500 Physical Specification #Fixed Ethernet Ports #Fixed ByPass Port Pairs max. #Flexi Ports #Cores Main CPU 16/32 24/48 Main Memory 64GB DDR4 ECC 2666 80GB DDR4 ECC 2666 #Cores NPU NPU Memory 12GB DDR4 ECC... -
Page 6: Firmware Version
Power No power LCD and Control Keys The XGS 5500/6500 have an LCD and an operating unit with four membrane keys. In the LCD, 16 characters per line can be displayed. SOPHOS While the security appliance is booting this message is displayed... - Page 7 1. v to Cont. Factory Reset 2. Confirm Network Menu Shutdown 3. Shutdown 1. v to Cont. Shutdown 1. Confirm Network Menu Reboot 4. Reboot 1. v to Cont. Reboot 1. Confirm Main Menu Not Configured 4. HA Info XGS 5500/6500...
-
Page 8: Control Key Functions
Shows Firmware Menu Second item 2. Factory Reset Factory Reset Press down key to continue ENTER 1. v to Cont. Factory Reset Asks for Confirmation 2. Confirm? Factory Reset under progress ENTER Firmware Version Factory Reset Complete SFOS xx.xx.xx XGS 5500/6500... - Page 9 Firmware Menu Shows Firmware Menu Fourth item 4. Reboot Factory Reset Press down key to continue ENTER 1. v to Cont. Factory Reset Asks for Confirmation 1. Confirm? Reboot under progress ENTER Firmware Version Reboot Complete SFOS xx.xx.xx XGS 5500/6500...
-
Page 10: Putting Into Operation
The supplied parts are indicated in the Hardware Quick Start Guide. Mounting Instructions The XGS 5500/6500 appliances are designed for use in racks. Please consider the following security tips: Important note: Functional reliability outside of a rack cannot be guaranteed. -
Page 11: Rack Mounting Considerations
You should also refer to the installation instructions that came with the rack unit you are using. Because of their dimension and weight the XGS 5500/6500 models are delivered with a special rail kit. Important note: Make sure you use the screws supplied with the rack-mount brackets. -
Page 12: Connection And Configuration
Library). RAID (SSD) System The XGS 5500/6500 models are equipped with a RAID-1 system with two Solid State Drive. A RAID system (redundant array of independent disks) connects several physical Solid State Drive to one particularly performing logical drive. RAID-1 enhances the data security and consistency of your system by mirroring all data of the first SSD to the second redundant SSD. -
Page 13: Redundant Power Supply
Operating Instructions Redundant Power Supply The XGS 5500/6500 models are equipped with a 1+1 redundant power supply. The power supply system consists of two separate power supply units. This power supply system increases the availability of the security appliance, since a defective power supply unit can be exchanged easily and quickly during operation. -
Page 14: Serial Console
If you want to connect to the RJ45 COM port please use a RJ45 to DB9 Adapter cable (not provided with the unit). The Pin-out for this cable is shown in the table below. Sophos RJ45 Pinout This pinout is compatible with Cisco Straight (X2) pinout serial cables. - Page 15 Registered in England and Wales No. 2096520, The Pentagon, Abingdon Science Park, Abingdon, OX14 3YP, UK Sophos is the registered trademark of Sophos Ltd. All other product and company names mentioned are trademarks or registered trademarks of their respective owners.
