ROSE DISPLAYS ANOQUICK SQUARE WITH MULTICLIPS Manual

AnoQuick™

Parts

Note: Use only
with graphics
mounted on 3/16"
foamboard or other
similar thickness.
Can also use a
folded edge thinner
substrate.

Instructions For Hanging

Step 1

Prepare edges of graphic. Place the graphic on
tabletop with one edge at the table edge. Using
the AnoQuick holder, run it across the graphic
edge, crushing it slightly. Fig. 1

Step 2

Starting at one corner, push the holder onto the
graphic. Work your way down the holder tapping
it down firmly to seat the graphic fully. Fig. 2

Step 3

Squeeze sides of MultiClip together. Fig.3

Step 4

Align the bottom rail of the MultiClip with
the top channel of the aluminum holder. Slide
Multiclip into rail. Fig. 4 Repeat steps 3 & 4
for second MultiClip.

Step 5

Push end caps into place. Fig. 5

Step 6

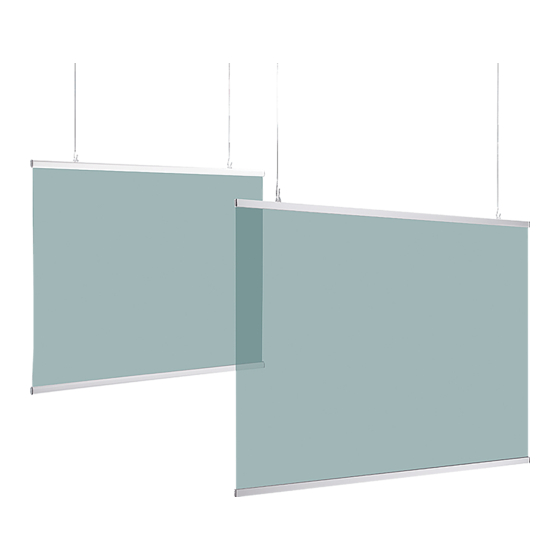

Suspend poster. Fig. 6

Important note:

Please save and reuse the AnoQuick holder,
End Caps and MultiClips for future projects.
AnoQuick is a trademark. Neither the manufacturer nor any sales agent
may be held liable for injury, loss or damage resulting from the use of
these products. Part #02INSAnoQuickSQMC
Incept-7.31.02
Square Profile Instruction Sheet
AnoQuick
12A300SQ
MultiClips
1UP-0101
Figure 1
Figure 3
Figure 5
End Caps
06-5545
Figure 2
Figure 4
Figure 6
