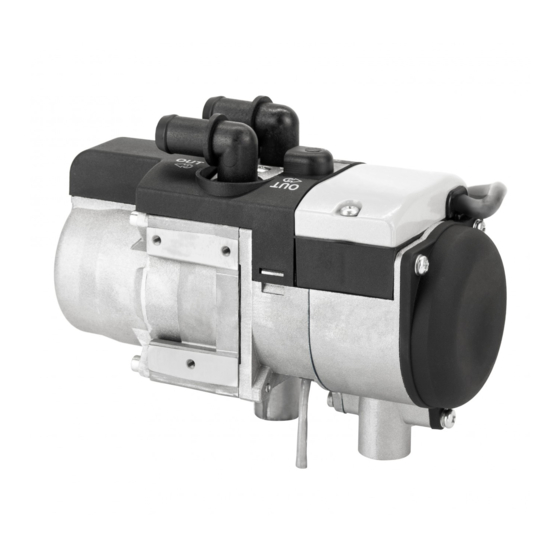

AUTOTERM FLOW 14D-12 User Manual
  1. Manuals
  2. Brands
  3. AUTOTERM Manuals
  4. Heater
  5. FLOW 14D-12
  6. User manual

AUTOTERM FLOW 14D-12 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

EN
for AUTOTERM Liquid heaters.
FLOW-5D 12V/24V
Manufacturer: ADVERS LLC
Novo-Sadovaja str. 106, 443068, Samara, Russia
www.autoterm.ru
Representative office of manufacturer: AUTOTERM LLC
Paleju 72, Marupe, Latvia, LV-2167
Warranty Department
Technical Support
www.autoterm.com
User's manual
with installation instructions
FLOW-14D 12V/24V
warranty@autoterm.com
service@autoterm.com
FLOW-5B 12V
v02.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLOW 14D-12 and is the answer not in the manual?

Questions and answers

Related Manuals for AUTOTERM FLOW 14D-12

Summary of Contents for AUTOTERM FLOW 14D-12

  • Page 1 AUTOTERM Liquid heaters. FLOW-5D 12V/24V FLOW-5B 12V FLOW-14D 12V/24V Manufacturer: ADVERS LLC Novo-Sadovaja str. 106, 443068, Samara, Russia www.autoterm.ru Representative office of manufacturer: AUTOTERM LLC Paleju 72, Marupe, Latvia, LV-2167 Warranty Department warranty@autoterm.com Technical Support service@autoterm.com www.autoterm.com v02.2021...

  • Page 2: Table Of Contents

    Table of contents Introduction ......................... 3 General instructions and operating principle .............. 4 Safety precautions ....................... 5 Retrofitting .......................... 7 Main heater unit and assembly installation requirements ........... 8 Installation of the heater ..................9 The installation of the coolant system ..............10 Installation of the air intake pipe.

  • Page 3: Introduction

    Dear Customer! Thank you for choosing the AUTOTERM FLOW heater! We are doing everything to make sure this product meets your requirements. It is essential to us that the quality of our products satisfies every customer. Introduction This manual is intended for organizations that specialize in the installation and maintenance of AUTOTERM FLOW liquid heaters (5D 12V/24V;...

  • Page 4: General Instructions And Operating Principle

    1 General instructions and operating principle AUTOTERM FLOW heaters are designed to be used for: • pre-heating vehicle engines with liquid cooling systems at an ambient air temperature of up to –45°С; • defrosting windshields, heating cabins, cargo compartments, and other confined spaces in vans, trucks, and maritime vessels with a central liquid heating system.

  • Page 5: Safety Precautions

    2 Safety precautions • Do not use or install the heater in places where flammable vapors, gases, or large amounts of dust may accumulate. • Disable the heater when the vehicle or vessel is being fuelled. • Do not cover the heater with clothing, pieces of fabric and so on, and do not place such objects in front of the air intake.
  • Page 6 • In case of faults in the operation of the heater, contact only specialized repair organizations authorized by AUTOTERM. If the consumer fails to follow the requirements above, the warranty of the heater...

  • Page 7: Retrofitting

     Diameter of the exhaust pipe. The FLOW-5D and FLOW-5B have an exhaust pipe with an internal diameter of 24mm, and the FLOW-14D has an exhaust pipe with an internal diameter of 38mm. Some brands use exhaust pipes with different diameters. If so, it needs to be adjusted to a diameter suitable for the heater in use.

  • Page 8: Main Heater Unit And Assembly Installation Requirements

    3 Main heater unit and assembly installation requirements The heater can be installed inside, and outside of the vehicle. Install the heater in a dry place that is protected from water, condensation, dirt, excessive vibrations, heat emissions, engine emissions, and fuel or oil contamination. When installing the heater in a cargo hold of the vehicle, install the heater at a height and location that prevents contact with cargo and in a way that the cargo will not obstruct the air intake for the combustion and exhaust...

  • Page 9: Installation Of The Heater

    When the heater is positioned with the exhaust pipe facing downwards, it is considered the 0° position. FLOW-5D and FLOW-5B have only two mounting positions – 0° and 90° with the air pump pointing upwards. The FLOW-14D should not be tilted (see Fig.1).

  • Page 10: The Installation Of The Coolant System

    When installing the FLOW series heater make sure that the heater is protected from any road spray, dust, water, and moisture. The heater must be fixed properly to bypass any vibrations. It must be installed in a well-ventilated area. DO NOT install near flammable or heat-sensitive objects such as sails, fenders, clothing, sheets, paper, gas pipelines, fuel tanks, etc.
  • Page 11 3.2.1 Installation of the coolant pump The coolant pump must be installed in the cooling circuit upstream of the liquid heater. The coolant pump should be installed below the level of the expansion tank, radiator, and heater. The direction in which the coolant flows in the pump must be the same as in the cooling system of the vehicle/vessel.

  • Page 12: Installation Of The Air Intake Pipe

    3.3 Installation of the air intake pipe. The air for combustion must not be taken from the interior, living space, engine or luggage compartment of the vehicle or vessel. Air should be taken from well-ventilated areas or from outside of the vehicle or vessel. The maximum length of the air intake pipe is 2 meters.
  • Page 13 The air intake must not be installed in the movement direction of the vehicle/vessel. In cases when the intake of clean air cannot be ensured, such as off-road and special purpose vehicles, please mount the dedicated AUTOTERM air filter (assy.2684) 3.3.1 Installation of the air intake pipe on maritime vessels ...

  • Page 14: Installation Of The Exhaust Pipe

    Fig. 10 - Installation of the air intake pipe 1 – Air intake pipe; 4 – Gasket; 2 – Flange of the air intake pipe; 5 – Fastener assembly; 3 – Hull of the vessel; 6 – Clamp. 3.4 Installation of the exhaust pipe. When installing the exhaust pipe, take into consideration the high temperature (up to 500°С) of the Heater...
  • Page 15 If the desired mounting situation requires the exhaust silencer to be mounted vertically, the condensation drain hole must be drilled, as shown in Fig. 14b, to avoid the build-up of condensation in the exhaust silencer. If that is not possible, it is recommended to install it sideways (see Silencer Fig.14a).
  • Page 16 If the exhaust pipes of the heater run through the living space or confined space of the vehicle/vessel, solid stainless-steel pipes must be used. Flexible exhaust pipes are only suitable for external use and use in engine rooms. Insulation Fig. 16 – Installation of additional heat insulation The end of the metal hose should not contact the rubber seal of the heater.

  • Page 17: Installation Of The Fuel System

    3.5 Installation of the fuel system. Do not operate the heater using biofuel. Use only diesel fuel standard EN590 and petrol fuel standard EN228, depending on the ambient temperature. Use the instructions detailed in Fig.18 and Fig.21 to install the fuel system. The fuel pump and the fuel supply line must be protected from heating.
  • Page 18 Fuel is taken directly from the fuel tank of the vehicle or vessel, or from an additional tank. Drill a Ø16mm hole in the fuel tank to install a fuel suction hose. When drilling the hole in the fuel tank, follow safety precautions that should be observed when working with any transport, filled operating with fuel or explosive substances.
  • Page 19 3.5.3 Fuel suction from the fuel tank of the vehicle. Fuel is taken from the fuel line of a vehicle using a T-piece (see Fig.21). This method can only be used if there is no pressure in the fuel line. If the vehicle is equipped with a low-pressure fuel pump in the fuel tank, then those fuel lines cannot be used, fuel suction hose must be installed instead.
  • Page 20 If for some reason the fuel pump seal is compromised, it is advised to install the fuel pump lower than the heater to avoid leaks and flooding the heater with fuel due to gravity. Remember to properly bleed the “silent” TH11 fuel pump. If it’s not properly bled it will be as loud as a standard fuel pump.

  • Page 21: Installation Of Heater Wiring

    3.5.5 Installation of the electrical harness of the fuel pump. If the length of the wiring harness of the fuel pump needs to be shortened, it is permissible to remove the unnecessary portion from the middle of the harness. The connection point must be insulated. Never connect the fuel pump to a continuous DC power supply.
  • Page 22 3.6.1 Installation of the relay Relay is sold separately The relay is necessary to connect the FLOW pre-heater to the interior fan of the vehicle. When the coolant set temperature (see operation manual of the control panel) is reached, the relay activates the interior fan of the vehicle. In some cases, the switch of the interior fan of the vehicle must be turned on for this feature to work.

  • Page 23: Installation Of The Control Panel

    3.7 Installation of the control panel. The control panel is intended for the operative control of the heater. Install the panel in a convenient (appropriate) place protected from water. The panel is attached using double- sided adhesive tape or a standard bracket (Fig.29). The wire may be brought out of the panel casing through the back cover or the partition of the inner surface of the panel casing.

  • Page 24: Automatic Control Features

    Before starting to heat the coolant, the pump will start to check if the heating liquid is frozen. The heater will then power up to 100% to heat up the combustion chamber and to provide proper burning temperatures. Depending on the ambient temperature and model of the heater, this process can take up to 15 minutes.

  • Page 25: Recommendations

    If you are unable to find the primary cause of a fault, contact your nearest dealer or service centre, or check the website www.autoterm.com. WARNING! When starting the heater for the first time after installation, it is preferable to fill the main fuel line up to the input nozzle of the heater using a priming device.

  • Page 26: Malfunctions

    6 Malfunctions Malfunction Recommended troubleshooting Code Cause of malfunction description methods 1. Check the entire liquid circuit for air blocks. Overheating 2. Check the pump. Temperature near one of the (upper temperature 3. Check the overheating sensor and the sensors exceeds 120ºС limit exceeded) temperature sensor.
  • Page 27 Malfunction Recommended troubleshooting Code Cause of malfunction description methods Poor conditions Check the air intake, the gas exhaust Flame blow off in combustion. Lack of fuel/air, pipeline, and fuel supply, resolve the the “WARMUP” the heat exchanger is fouled, the fault(s), and replace the fuel pump and mode exhaust pipe is clogged...

  • Page 28: Warranty Terms

    While warranty is provided to the “original end-user”, it is to be administered and serviced through an authorized AUTOTERM dealer in accordance with the heaters warranty terms. All AUTOTERM certified services are listed on the www.autoterm.com/warranty...

  • Page 29: Annex 1: Basic Parameters & Specifications Of Heaters

    Annex 1: Basic parameters & specifications of heaters 1. Basic parameters of the heater FLOW-5D, 5B Models Characteristics FLOW 5B FLOW 5D Voltage Heating medium Coolant, antifreeze coolant Optimal liquid/coolant 10 - 12 L volume At 0 bar pressure: 1200 l/h Coolant liquid flow rate At 0.18 bar pressure:...

  • Page 30: Annex 2: Connection Diagrams Of Heaters

    Annex 2: Connection diagrams of heaters 1. Connection diagram of the heater FLOW-5D, 5B Connection of Wiring harness the PWM Coolant pump Control panel Rubber hose with console Insulator Coolant inlet/outlet Fuel pipe (to heater) Reducing Heater Fuel pipe pump...
  • Page 31 2. Connection diagram of the heater FLOW-14D Fuel pump Fuel tank Fuel line Exhaust pipe Coolant pipe line Fuel pump Power supply harness harness Harness Coolant pump Control panel harness Coolant pump Air intake mounting kit Coolant pipe line Duplicate of label...

  • Page 32: Annex 3: Size And Dimensions Of Heaters

    Annex 3: Size and dimensions of heaters 1. Size and dimensions of the heater FLOW-5D, 5B 2. Size and dimensions of the heater FLOW-14D...

  • Page 33: Annex 4: Electrical Wiring Diagrams Of Heaters

    Annex 4: Electrical wiring diagrams of heaters 1. Electrical wiring diagram for the heater FLOW-5D, 5B Heater Wiring harnesses Control Control unit Circuit Panel Circuit red/brown red-black U nap. Fuel pump blue blue/yellow blue blue control Ground/Earth Control panel white...
  • Page 34 2. Electrical wiring diagram for the heater FLOW-14D...

  • Page 35: Annex 5: Periodic Maintenance Table

    Annex 5: Periodic maintenance table Required Type of maintenance Service object, description of activities and Required materials, maintenance technique inspection PERIODIC SEASONAL tools Electrical equipment Check the security of the attachment of the heater electrical contacts. In case of dirt or oil deposit on the contacts, remove Visual petrol, Every 500h...

  • Page 36: Annex 6: Maintenance Check List

    Annex 6: Maintenance check list DATE: VEHICLE YEAR: HEATER MODEL: VEHICLE MAKE: SERIAL NO.: VEHICLE MODEL: TECHNICAN NAME VIN: SURNAME  ✓ CATEGORY DIAGNOSTIC TASK Installation Position Fuel pump mounting position (where applicable) Proper length of fuel line before and after fuel pump Preliminary Check Heater is well protected from road spray and dirt Fuel Level...
