- Page 1 User’s manual for AUTOTERM Travel Box 2.0 Manufacturer: AUTOTERM LLC Paleju 72, Marupe, Latvia, LV-2167 Warranty Department warranty@autoterm.com Technical Support service@autoterm.com www.autoterm.com v02.2024...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..........................3 IMPORTANT BEFORE USSAGE......................4 USAGE............................. 7 FEATURES............................8 WORKMODES..........................8 BUILT-IN RELAY & CONTROL PANEL COMPATIBILITY..............9 ERROR CODES..........................10 TECHNICAL DATA SHEET........................ 12... -
Page 3: Introduction

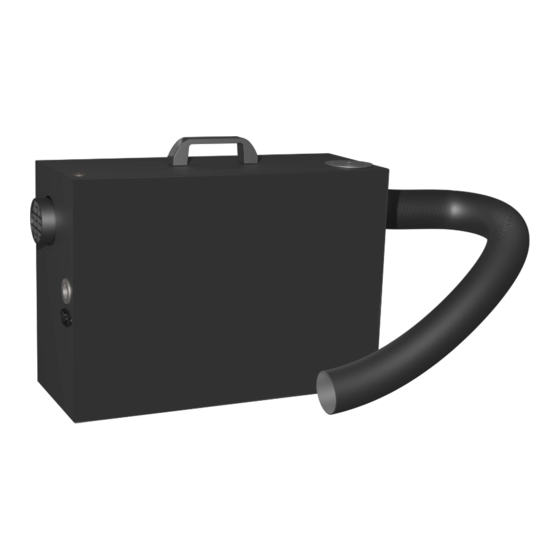

Introduction The Travel Box is a completely self-sustained hot air-delivering unit for outdoor usage only. It has a fuel tank to ensure a minimum operation time of up to 9 hours (depending on the power level and heating mode used). For example, it can be used for camping to heat tents, or for construction shelters or trailers, as well it can be used as emergency heating if the regular heating source had a failure. -
Page 4: Important Before Ussage
Important Before Usage! Before using the heater, remove the cover by unscrewing 8 bolts with a 2.5mm hex key that comes attached to the handle to insert the fuses which are inside the Travel Box. Insert two fuses according to the picture bellow and put the cover back to power up the heater! NOTE! The fuses are removed by following the freight transportation company's requirements for safe transportation of goods. - Page 5 Do not overtighten the fuel cap, it may cause a vacuum. Accessories included with Travel Box 2.0 1.8 m 220 V 1.8 m 12V power power supply supply with battery...
- Page 6 The exhaust pipe can be mounted directly to the Travel Box exhaust pipe. Use the exhaust pipe for fresh air when heating to prevent CO2 from getting sucked in or to move fumes away from a specific area. It is possible to connect a 60 mm air duct to the hot air outlet and air inlet. To connect the 60 mm air duct to the air intake, remove the plastic cover from the air intake, by screwing it ½...
-
Page 7: Usage
Do not operate the heater without the battery. The Travel Box has a built-in battery of 22Ah. Using a heater with a removed battery only with external main power can cause damage to the heater and its components. The same applies with 220v operation with a charger only, it can damage the heater and charger. -
Page 8: Features
Features The Travel Box has a unique characteristic that saves the battery from excessive parasite drain. The Travel Box has a relay that turns on the heater when needed and runs it on a battery. It uses less power when the heater isn't being used. -
Page 9: Built-In Relay & Control Panel Compatibility
After the relay is active, the additional added control panel will be operational. Comfort Control Panel Simple Control Panel Withe the Travel Box 2.0: • Thermostat mode won't work • Will not allow to set timers... -
Page 10: Error Codes
Error Codes Description Fault Cause Recommended Solutions blinks Check the intake and outlet of the heating unit for unobstructed entry and exit of heated air. Check the integrity of the fan and its performance. The sensor sends a signal to shut Overheating of the heat down the heater. - Page 11 Description Fault Cause Recommended Solutions Check the intake and output of the heater for During the purge time, During 5 min purge before unobstructed entry and exit of air. temperature sensor was not start-up, temperature Check the integrity of the fan and cooled down.
-
Page 12: Technical Data Sheet
Fuel consumption Control mode Autoterm Push Control Compatible control panels Simple Control, Comfort Control 22.5kg with a full fuel tank Weight of the Travel Box 2.0 18.5 kg gross weight Heater dimensions 500x400x200 mm Fuel tank capacity Water resistance IP-51 * Heater standby power consumption 0.06W (when not used)
