AnoFrame VersaMount

Parts

AnoFrame AnoFrame
Rails Split Rails

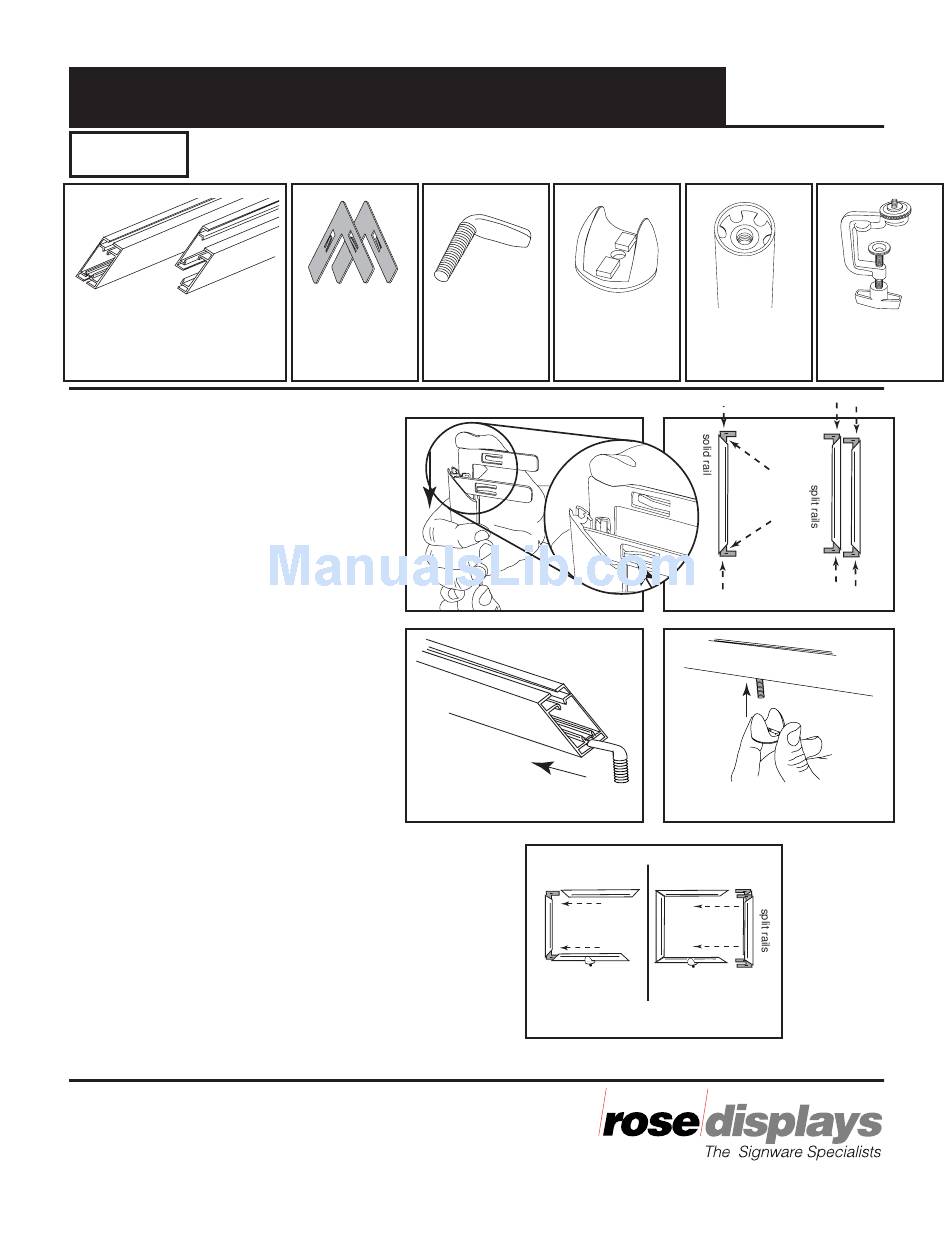

Instructions For Assembly

Step 1

Locate the two split rails and the solid
rail that is the same length as the split
rails.
Insert corner brackets into side
AnoFrame rails. Insert two corner
brackets into each end of the solid side
Ano rail. Insert one corner bracket
into each end of each split side Ano
rail. Fig. 1 & Fig. 2
Note: Tension tabs on corner
brackets face towards outside of
frame.

Step 2

Slide screw tab into channel of bottom
Ano rail. Fig. 3.

Step 3

Place transitional collar over screw tab
and push onto frame. Fig. 4.

Step 4

Finish assembling frame following the
sequence in Fig. 5.
Note: Placement of split rails will
depend on type of frame. Split rails
will be on the top for top-loading
frames and on the side for side-
loading frames.
The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither
the manufacturer nor any sales agent may be held liable for injury, loss
or damage resulting from the use of these products.
Part #02INSVersaMountClampBaseSQ
Incept-9.6.02
TM
Clamp Base
Instruction Sheet (page 1 of 2)
Corner Screw Tab
Brackets
Transitional
Collar
Figure 1
Figure 3
solid rail
solid rail
Figure 5
Tel# 1-800-631-9707 Fax# 1-800-560-2890
#97-0421SQ
Vertical Clamp Base
Post
Figure 2
Figure 4
35 Congress Street, Salem MA 01970
