ROSE DISPLAYS ANOFRAME VERSAMOUNT CEILING ANCHORS Manual

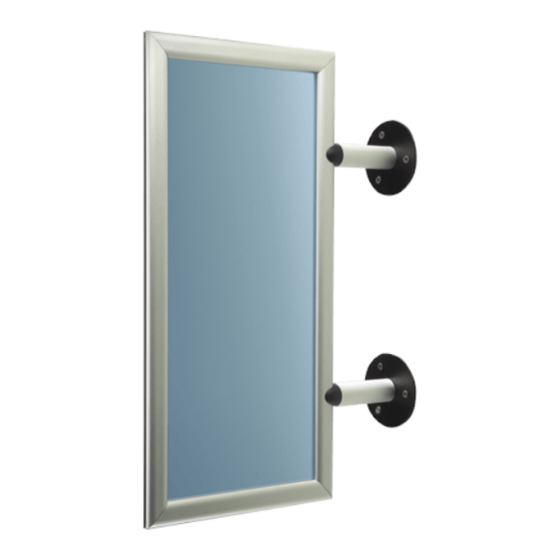

AnoFrame VersaMount

Parts

AnoFrame AnoFrame
Rails Split Rails

Instructions For Assembly

Step 1

Locate the two split rails and the solid
rail that is the same length as the split
rails.
Insert two corner brackets into each
end of the solid side Ano rail. Insert
one corner bracket into each end of
each split side Ano rail.
Fig. 1 & Fig. 2
Note: Tension tabs on corner
brackets face towards outside of
frame.

Step 2

Slide both screw tabs into channel of
top Ano rail. Fig. 3.
Place one near each end of frame.

Step 3

Place one transitional collar over each
screw tab and push onto frame. Fig. 4.

Step 4

Finish assembling frame following the
sequence in Fig. 5.
The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither
the manufacturer nor any sales agent may be held liable for injury, loss
or damage resulting from the use of these products.
Part #02INSVersaMountCeiling Anchors
Incept-9.6.02
TM
Ceiling Anchors

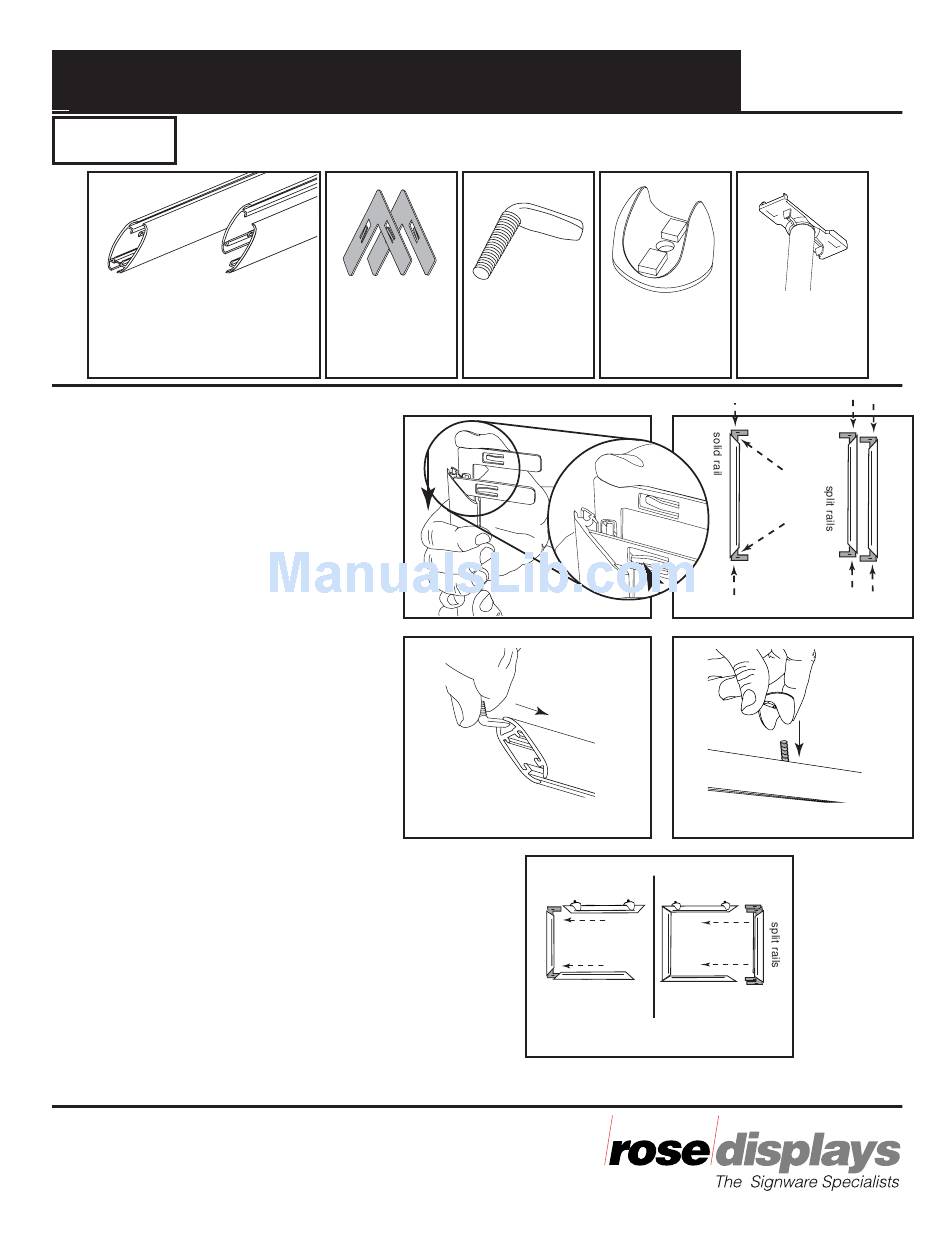

Instruction Sheet (page 1 of 2)
Corner Screw Tabs
Brackets
Figure 1
Figure 3
Transitional
Collars
Ceiling Anchors
Figure 2
Figure 4
solid rail
solid rail
Figure 5
