Kyocera KC85TS Datasheet

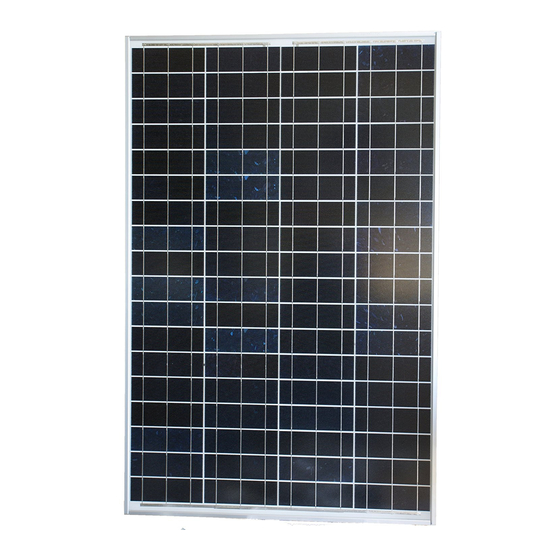

KC85TS
HIGH EFFICIENCY MULTICRYSTAL
PHOTOVOLTAIC MODULE
HIGHLIGHTS OF
KYOCERA PHOTOVOLTAIC MODULES
,
Kyocera s advanced cell processing technology
and automated production facilities produce a highly efficient
multicrystal photovoltaic module.
The conversion efficiency of the Kyocera solar cell is over 16%.
These cells are encapsulated between a tempered glass cover
and a pottant with back sheet to provide efficient protection from the severest environmental conditions.
The entire laminate is installed in an anodized aluminum frame to provide structural strength and ease of installation.
APPLICATIONS
Microwave / Radio repeater stations
Electrification of villages in remote areas
Medical facilities in rural areas
Power source for summer vacation homes
Emergency communication systems
Water quality and environmental data monitoring systems
Navigation lighthouses
MODEL
KC85TS
QUALIFICATIONS
MODULE
Hazardous Locations Class1 , Div 2, Groups A, B, C and D
QUALITY ASSURANCE
Kyocera multicrystal photovoltaic modules have passed the following tests.
Thermal cycling test
Hail impact test
LIMITED WARRANTY
1 year limited warranty on material and workmanship
20 years limited warranty on power output:
(Long term output warranty shall warrant if PV Module(s) exhibits power output of less than 90% of the original minimum rated power specified at the time of sale within
10 years and less than 80% within 20 years after the date of sale to the Customer. The power output values shall be those measured under Kyocera
measurement conditions. Regarding the warranty conditions in detail, please refer to Warranty issued by Kyocera)

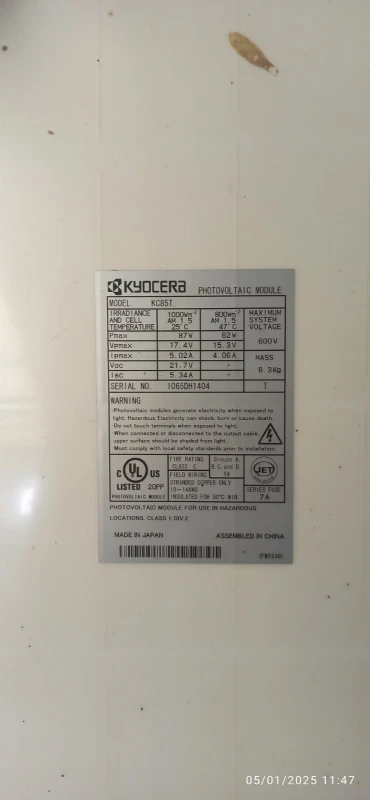

ELECTRICAL CHARACTERISTICS
Current-Voltage characteristics of Photovoltaic
Module KC85TS at various cell temperatures
: UL1703 certified
Thermal shock test Thermal / Freezing and high humidity cycling test
Mechanical, wind and twist loading test
IRRADIANCE: AM1.5, 1kW / m
6
75 C
50 C
25 C
4
2
0
0 10 20 30
Voltage (V)
Pumping systems for irrigation, rural water supplies
and livestock watering
Aviation obstruction lights
Cathodic protection systems
Desalination systems
Railroad signals
etc.
FACTORY : ISO9001 and ISO 14001
Salt mist test Light and water-exposure test
For detail, please refer to "category IV" in Warranty issued by Kyocera
Current-Voltage characteristics of Photovoltaic
Module KC85TS at various irradiance levels
Electrical isolation test
Field exposure test
CELL TEMP. 25 C
6
1000W/ m
800W/ m
4
600W/ m
400W/ m
2
200W/ m
0
0 10 20 30
Voltage (V)
,
s standard
