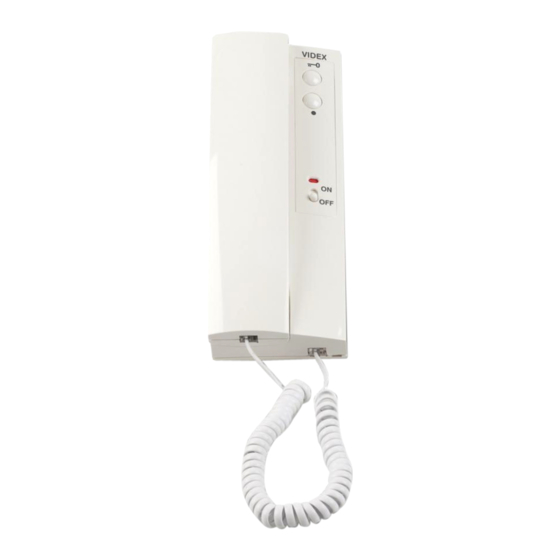

ART. 3181

3000 Series full base "true" 2 wire BUS digital audiophone which incorporates

an electronic call tone with an adjustable 3 level volume control. It also

includes a "door open" push button with a " door open" LED, secondary push

button to activate a BUS relay unit (Art.2305) and privacy switch with privacy

ON illumination LED.

For use on the "true" 2 wire VX2300 digital audio and video system.

Call tone adjustment: 3 level (low, medium and high) call tone switch.

Privacy switch: 1 sliding ON/OFF privacy switch (timed).

Privacy adjustments: 1 internal 3 way dip-switch to set the privacy time.

Privacy indication: 1 privacy illumination LED (red).

Door open indication: 1 door open illumination LED (green).

Intercommunicating setup: 1 internal 3 way dip-switch to set the

intercommunication mode.

TECHNICAL SUPPORT

Tel: 0191 224 3174

Fax: 0191 224 4938

Email: tech@videxuk.com

Web: www.videxuk.com

3000

SERIES

3181

3000 Series Audiophone

QUICK GUIDE

Table of Contents

Need help?

Do you have a question about the 3181 and is the answer not in the manual?

Page 1 ART. 3181 3000 Series full base "true" 2 wire BUS digital audiophone which incorporates an electronic call tone with an adjustable 3 level volume control. It also 3000 includes a "door open" push button with a " door open" LED, secondary push button to activate a BUS relay unit (Art.2305) and privacy switch with privacy...
Page 2 0191 238 8324. the ID of the BUS relay to enable (if an Art.2305 was setup during the To download a copy of this quick guide visit the Videx installation, refer to Art.2305 manual). website: www.videxuk.com...
