Lee Precision 90932 Manual

Lee 4 Hole Turret Press
For use with accessory Safety Prime # 90997
PRIMER FEED WASHER
TP2067
FT 2997 – 18x 1 K Bolt
E/af
(3 required)
TURRET RING
ASSEMBLY
TF 3565
TP 2108
Shell holder retainer
TP 2118
Shoulder Bolt (2 req.)
Ammunition reloading can be dangerous if done im properly and should not
CAUTION
be attempted by persons not willing and able to read and fol low instructions
exactly. Children should not be permitted to reload ammunition without strict
parental supervision. Always wear safety glasses when reloading and shooting.
Ammunition loaded with these tools and data should only be used in modern guns in good condition.
We do not accept responsibility for ammunition loaded with these tools or data as we have no control
over the manufacture and storage of components or the loading procedure and techniques. Primers
and gun powders, like gasoline and matches, can be dangerous if improperly handled or misused.
4275 Highway U
PRIMER FEED BRACKET
TP2699
90269 4 hole Turret
TP2129
Connecting
Link
OF3221
Ram Pin
TP2117 Link Bolt W – 24
FB 1181 Nut (not visible)

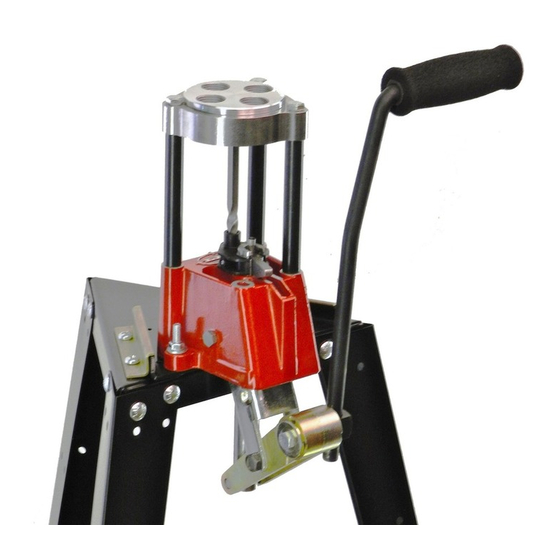

Press shown on optional Reloading Stand #90688
Hartford Wisconsin 53027
TF3567 Square Ratchet
one installed
OF2853
Toggle (2 req.)
www.leeprecision.com
Helpful setup
and operation videos
available on
leeprecision.com
TP 2106 Column
(3 REQUIRED)
Primer Arm Assembly
BP2889A Small
BP2889B Large
TP 2125 Base Casting
OF 3613 Lever Clamp
FO2113 –18 x 1 N" Bolt
E/af
Tighten to 25 ft/lbs.
OF3609 1 C/af Washer
