The App is the most convenient single station press ever made. You can use any brand shell holder provided the outside
diameter does not exceed
the instructions to install the shell holder, then adjust your dies according to the manufacturer's instructions.
ACCESSORY
App Roller Handle
# 91629
Upper Casting
Part # PA4255
Molded feed tube &
case feed support
Part # PA4360
Molded parts risers
Part # PA4384
Feed Spring
Part # PR2118
Base Casting
Part # PA3506
Bottle Adapter
Product # 91151
SMOOTH OPERATING TIPS
• Do not force it or you will break something. If
it does not feel right, stop and check out the
problem.
• Oil columns and all pivot points using STP
motor oil treatment or motor oil.
DANGER
Ammunition reloading can be dangerous if done im properly and can result in serious injury or death.
Reloading should not be attempted by persons not willing and able to read and fol low instructions exactly. Children should not be permitted
to reload ammunition without strict parental supervision. Always wear safety glasses and hearing protection when reloading and shooting.
CAUTION
Ammunition loaded with these tools and data should only be used in modern guns in good condition. We do not accept responsibility for
ammunition loaded with these tools or data as we have no control over the manufacture and storage of components or the loading procedure
and techniques. Primers and gun powders, like gasoline and matches, can be dangerous if improperly handled or misused.
WARNING: Handling live primers and spent primers may expose you to
lead or other chemicals, which are known to the State of California to
cause reproductive harm and cancer. For more information, go to
www.P65Warnings.ca.gov.

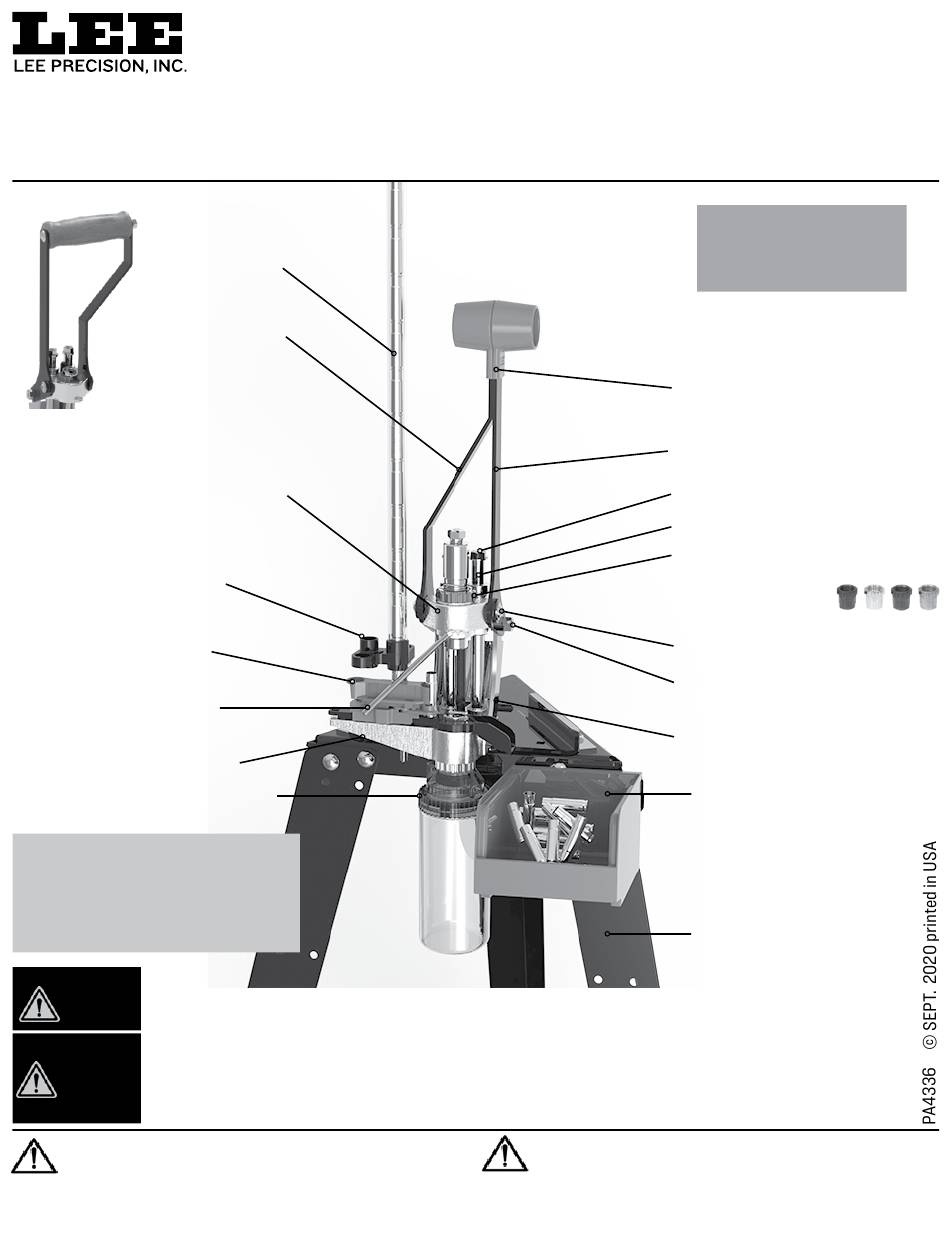

AUTOMATIC PROCESSING PRESS
C O M P L E T E
/
" (20,6mm). Any brand or type of die will also work provided they have a ⅞-14 threading. Follow
13
16
Feed tubes (4)
# PA4340 .28"
# BF3490 .42"
# BF3489 .49"
# TR2458 .53"
Left lever
(1 included)
®
I N S T R U C T I O N S
US Patent #10,076,781 Exp. 2037
Power grip
Right lever
¼-20 Flange nut
Column
Spline Drive Bushing
2 pack Product # 90063
3 pack Product # 90042
4 pack Product # 90095
WARNING: This product may contain steel alloyed with trace amounts
of lead and other elements which are known to the State of California
to cause reproductive harm and cancer. For more information, go to
www.P65Warnings.ca.gov. To prevent exposure, do not alter the
product by welding, grinding, etc.
SETUP TOOLS REQUIRED
• Safety glasses
• 7/16" wrench
• Small flat blade screwdriver
(2 included)
(2 included)
(1 included)
¼-20 X ⅝ Phillips
¼-28 Crown Lock Nut
Connecting Link
optional Bin & Bracket
Product # 90687
optional Reloading Stand
Product # 90688
