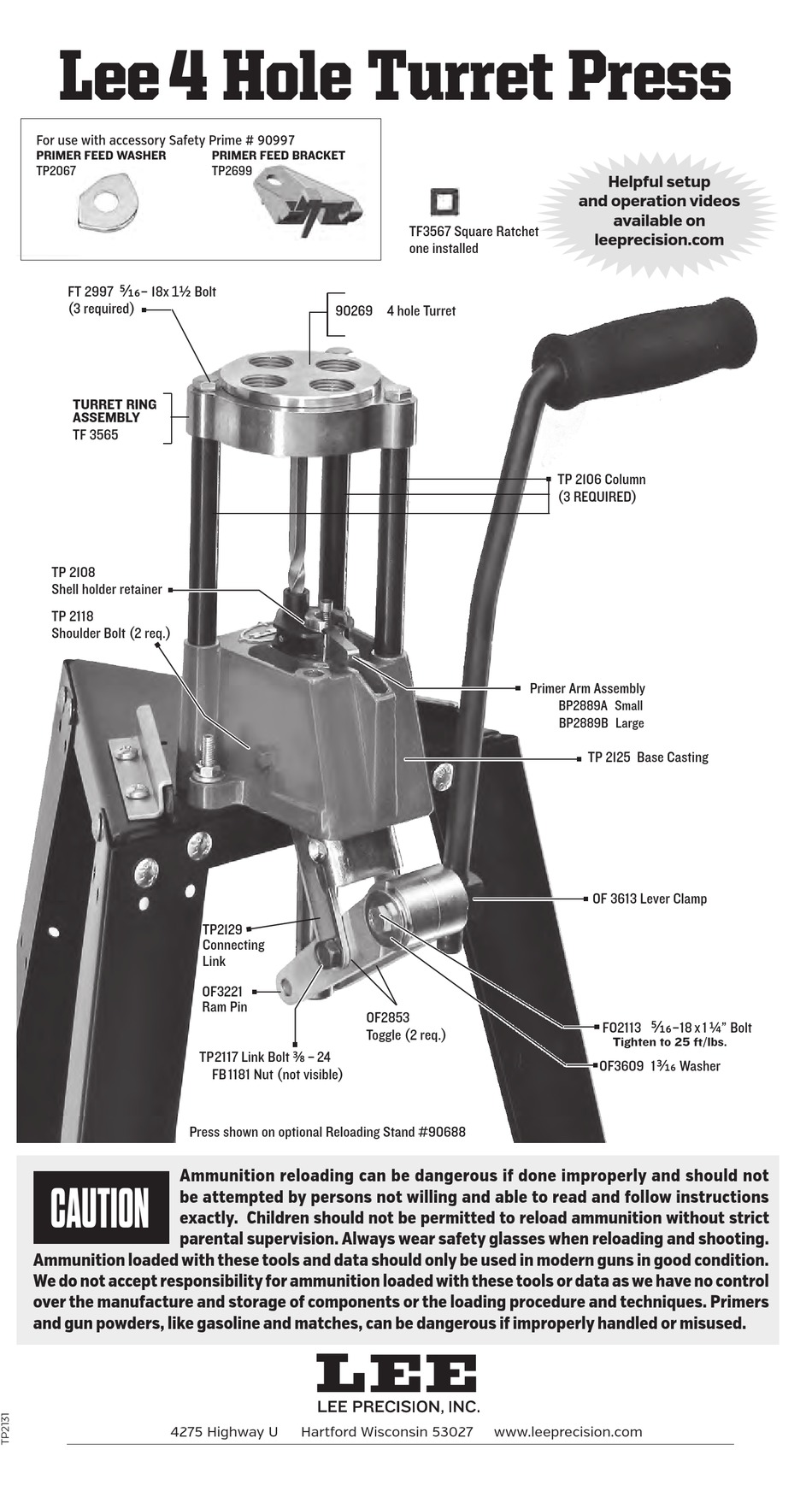

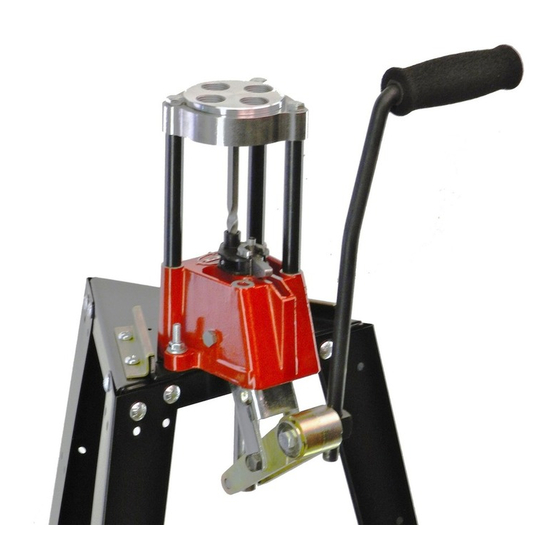

Lee 4 Hole Turret Press
For use with accessory Safety Prime # 90997
PRIMER FEED WASHER
TP2067
FT 2997
– 18x 1 K Bolt
E/af
(3 required)
TURRET RING
ASSEMBLY
TF 3565
TP 2108
Shell holder retainer
TP 2118
Shoulder Bolt (2 req.)
Ammunition reloading can be dangerous if done im properly and should not
CAUTION
be attempted by persons not willing and able to read and fol low instructions
exactly. Children should not be permitted to reload ammunition without strict
parental supervision. Always wear safety glasses when reloading and shooting.
Ammunition loaded with these tools and data should only be used in modern guns in good condition.
We do not accept responsibility for ammunition loaded with these tools or data as we have no control
over the manufacture and storage of components or the loading procedure and techniques. Primers
and gun powders, like gasoline and matches, can be dangerous if improperly handled or misused.
4275 Highway U
PRIMER FEED BRACKET
TP2699
90269 4 hole Turret
TP2129
Connecting
Link
OF3221
Ram Pin
TP2117 Link Bolt W – 24
FB 1181 Nut (not visible)
Press shown on optional Reloading Stand #90688
Hartford Wisconsin 53027
TF3567 Square Ratchet
one installed
OF2853
Toggle (2 req.)
www.leeprecision.com
Helpful setup
and operation videos
available on
leeprecision.com
TP 2106 Column
(3 REQUIRED)
Primer Arm Assembly
BP2889A Small
BP2889B Large
TP 2125 Base Casting
OF 3613 Lever Clamp
FO2113
–18 x 1 N" Bolt
E/af
Tighten to 25 ft/lbs.
OF3609 1
C/af Washer
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lee Precision Lee 4
Summary of Contents for Lee Precision Lee 4
- Page 1 Lee 4 Hole Turret Press For use with accessory Safety Prime # 90997 PRIMER FEED WASHER PRIMER FEED BRACKET TP2067 TP2699 Helpful setup and operation videos available on TF3567 Square Ratchet leeprecision.com one installed FT 2997 – 18x 1 K Bolt...
- Page 2 RELOADING SAFETY Keep powder away from heat and open flames — Don’t smoke Store powder and primers in their original containers in a cool, dry place Read and follow instructions exactly Be sure you have the correct powder, measure and bullet of the correct weight;...
- Page 3 SETTING UP YOUR LEE TURRET PRESS DIE INSTALLATION Snap shell holder into the ram. Rotate shell holder to most convenient position. Screw full length sizer finger tight against the shell holder. Lower the ram and turn the die in another 1/4 to 1/2 turn. Do not turn carbide Exception dies in the extra 1/4 to 1/2 turn.
- Page 4 UTILIZING SAFETY PRIME If you plan on utilizing the accessory Safety Prime, install Auto Disk Riser #90041, sold separately. Install extension tube into body as shown Thread assembly into powder through expanding die or rifle charging die PRO-Auto Disk Powder Measure pictured with the auto disk riser installed (# 90041 sold separately ).
- Page 5 SAFETY PRIMER FEED INSTRUCTIONS #90997 SOLD SEPARATELY * SMOOTH OPERATION TIP Spent primers are extremely dirty, and after extended use it my be necessary to clean ram where primer lever is inserted. Clean the ram using gun scrubber, electrical contact cleaner or disc brake cleaner.
- Page 6 ADJUSTING THE INDEX Cycle the press up and down. If the turret does not stop in the correct position— follow these instructions. With the ram in the down position, place a N -inch wrench on the index rod and hold in position. Now rotate the turret into the correct position.
- Page 7 CASES PRIMERS The easiest and best way of getting cases is Rifle and pistol cartridges require different to simply save those from your factory loaded primers. Rifle primers have a thick and rounds. New and used cases can also be pur- stronger cup to withstand the higher chased.
- Page 8 GHHHHHHHHHHHHHHHI © 2015 Lee Precision Inc Printed in USA...
