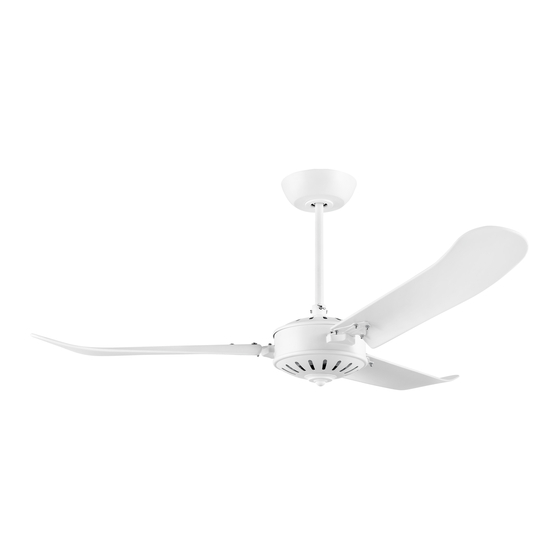

HOI AN Ceiling Fan
35027
35028
35029
HOI AN Ceiling Fan
1
Advertisement
Table of Contents
Related Manuals for Eglo HOI AN 35029
Summarization of Contents
Safety Instructions
Electrical Safety Standards
All electrical work must be done by a qualified electrician; ensure power is disconnected before work.
Installation Safety Requirements
Ensure correct mounting point load (45kg), blade clearances (30cm horizontal, 2.3m vertical), and earthing.
Child Safety Guidelines
Children 8+ can use if supervised; never let children play with the appliance or unsupervised near electrical devices.
Safe Operational Practices
Use only EGLO controller, do not change direction while spinning, do not insert objects into blades.
Wobble Warning and Action
Stop operation and contact manufacturer if unusual oscillating movement is observed.
Before Installation Checks
Prepare Canopy and Downrod
Loosen canopy, slide down downrod carefully, protect finish, and tuck wires.
Verify All Parts Are Present
Check all parts against the parts list before starting assembly to ensure completeness.
Parts List
Required Tools
List of tools needed for assembly: screwdrivers, pliers, wire cutter, ladder, and cable.
Tool Usage Warning
Warning against using electric drivers to avoid overtightening screws and damaging threads.
Selecting Installation Location
Blade Clearance to Objects
Ensure blades have a minimum 300mm clearance from the nearest objects or walls.
Blade Clearance from Floor
Ensure blades are positioned at a minimum of 2.3 meters above the floor for safe operation.
Mounting Point Requirements
The mounting point must support at least 45 kg. Install timber support if no solid point exists.
Assembling and Installing the Fan
Power Disconnection for Safety
Ensure power is disconnected and all poles isolated before starting electrical connections for safety.
Lowering the Canopy
Loosen canopy and slide it down the downrod carefully, avoiding scratches to the finish.
Installing the Hanger Bracket Ball
Seat the down rod ball into the bracket, aligning the slot with the stopper to prevent rotation.
Ceiling Wiring Preparation
Prepare ceiling wiring according to the "Wiring Connections" section before connecting the fan.
Connecting Fan Wiring
Connect the 4-pin plug from the downrod to the male plug from the terminal block on the hanger bracket.
Installing Downrod Extensions
Disassemble and Reassemble Downrod
Steps for disassembling, removing, and reattaching downrod components and wiring.
Connect Wiring for Extensions
Connect the 4-pin wiring from the downrod extension to the hanger bracket terminal block.
Wiring Connections
Qualified Electrician Required
All electrical connections must be performed by a qualified and licensed electrician for safety.
Isolation Switch Requirement
Isolation switch is required for each DC fan if multiple are installed in the same location for programming.
Remote Control Operation
Remote Control Buttons
Explanation of the functions of each button on the remote control for fan and light.
Inserting Remote Control Battery
Step-by-step guide on how to open the battery cover and insert the battery correctly.
Code Learning Mode
Setting Code Switches
Codes are set using dip switches; transmitter and receiver codes must match for remote to function.
Remote Control Ready for Use
The remote control is ready for operation after the battery has been correctly installed.
Cleaning and Maintenance
Regular Screw Tightening
Check and tighten all screws every 6 months due to natural fan movement causing loosening.
Cleaning Method
Use a soft brush or lint-free cloth for cleaning to avoid scratching the fan's finish.
Warning Against Abrasive Cleaners
Avoid abrasive cleaning agents as they can cause damage to the fan's finish.
Troubleshooting
Addressing Wobble and Balance Issues
Guide to identify and resolve fan wobble caused by loose screws, uneven blades, or improper mounting.
Check Mounting Screws
Ensure all screws for the mounting bracket and down rod are tightly secured to prevent wobble.
Check Blade Shape and Alignment
Check blades for shape and alignment. Remove and stack them on a flat surface to ensure uniformity.
EU Declaration of Conformity
EU Directives Compliance
Declares conformity with EU directives: LVD, EMC, ErP, and RoHS.
Harmonized Standards Applied
Lists harmonized standards and regulations applied to ensure compliance with directives.
