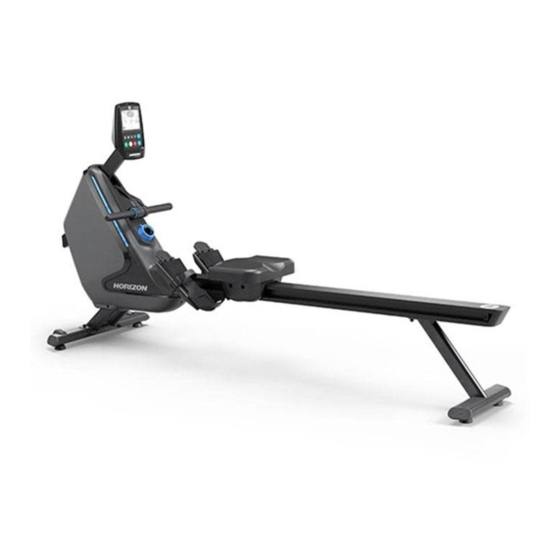

- Page 1 Issue date Edition Doc No. Horizon Retail Revision Edition time 18-09-29 Page date Johnson Industries (Shanghai) Co., Ltd OXFORD 3&6 ROWER Service Manual Approval Review Editor Allen Sun Allen Sun Hans Kong...
-
Page 2: Table Of Contents
CONTENTS CHAPTER 1:SERIAL NUMBER LOCATION....................1.1:SERIAL NUMBER LOCATION......................CHAPTER 2: IMPORTANT SAFETY INSTRUCTIONS................3 2.1 READ AND SAVE THESE INSTRUCTIONS.................. CHAPTER 3:PREVENTATIVE MAINTENANCE..................3.1 CARE AND MAINTENANCE INSTRUCTIONS................CHAPTER 4:CONSOLE INSTRUCTION...................... 4.1 CONSOLE OVERVIWE........................4.2 OXFORD 3 CONSOLE DESCRIPTION..................4.3 OXFORD 6 CONSOLE DESCRIPTION..................4.4 ENGINEERING MODE........................ -
Page 3: Chapter 1:Serial Number Location
CHAPTER 1:SERIAL NUMBER LOCATION 1.1:SERIAL NUMBER LOCATION Find your equipment’s serial number located on a bar code sticker. -
Page 4: Chapter 2: Important Safety Instructions
CHAPTER 2: IMPORTANT SAFETY INSTRUCTIONS 2.1 READ AND SAVE THESE INSTRUCTIONS To ensure your safety and protect the equipment, read all instructions before operating the Horizon Oxford Rower. * Use the rower for its intended purpose as described in this manual. Do not use attachments that have not been recommended by the manufacturer.. -
Page 5: Chapter 3:Preventative Maintenance
CHAPTER 3:PREVENTATIVE MAINTENANCE 3.1 CARE AND MAINTENANCE INSTRUCTIONS WHAT KIND OF ROUTINE MAINTENANCE IS REQUIRED? Minimal maintenance and cleaning is required. Adhering to this schedule will extend the life of your machine. HOW DO I CLEAN MY MACHINE? Clean with soap and water cleaners only. Never use solvents on plastic parts. Cleanliness of your machine and its operating environment will keep maintenance problems and service calls to a minimum. -
Page 6: Chapter 4:Console Instruction
CHAPTER 4:CONSOLE INSTRUCTION 4.1 CONSOLE OVERVIEW OXFORD3 & OXFORD6 Console... -
Page 7: Oxford 3 Console Description
CHAPTER 4:CONSOLE INSTRUCTION 4.2 OXFORD 3 CONSOLE DESCRIPTION... -
Page 8: Oxford 6 Console Description
CHAPTER 4:CONSOLE INSTRUCTION 4.3 OXFORD 6 CONSOLE DESCRIPTION... -
Page 9: Engineering Mode
CHAPTER 4:CONSOLE INSTRUCTION 4.4 ENGINEERING MODE The engineering mode allows the owner to customize the Rower. 1) To enter engineering mode, please hold the on the function keypad for 3-5 seconds. 2) To scroll through the list of options in engineering mode, use the button . -
Page 10: Chapter 5:Troubleshooting
CHAPTER 5:TROUBLESHOOTING 5.1 WIRING SCHEMATIC OXFORD 3 Wiring Schematic:... - Page 11 CHAPTER 5:TROUBLESHOOTING 5.1 WIRING SCHEMATIC OXFORD 6 Wiring Schematic:...
-
Page 12: The Console Does Not Light Up
CHAPTER 5:TROUBLESHOOTING 5.2 THE CONSOLE DOES NOT LIGHT UP. SYMPTOM: Turn on the power switch, but the console will not light up. (Oxford 6) SOLUTION: The outlet of the machine is plugged and is functional. Double check that the breaker has not tripped. -
Page 13: Rpm Issue
CHAPTER 5:TROUBLESHOOTING 5.3 RPM ISSUE. Symptom: Count function does not work. Solution: Open the side cover. Check if the speed sensor wire is connected well, if not, re-connected the wire. Open the console cover and check if all wires are connected well. ... -
Page 14: Heart Rate Issue
CHAPTER 5:TROUBLESHOOTING 5.4 HEART RATE ISSUE Symptom: Heart rate does not work. Solution: Check the battery on the chest strap. A. Re-center the strap on the user's chest (Figure A). Apply a light amount of moisture to the chest strap sensors. -
Page 15: Resistance Issue
CHAPTER 5:TROUBLESHOOTING 5.5 RESISTANCE ISSUE Symptom: No resistance or incorrect resistance Solution: 1. Turn on the console and check the ECB motor (1000213379)/tension control (1000412305). At resistance level 1, the head of steel rope directs to top right side (around 45 degree). If the head of steel rope points to bottom left side, the resistance will be reverse. - Page 16 CHAPTER 5:TROUBLESHOOTING 5.5 RESISTANCE ISSUE B) If the ECB motor/tension control can move, the resistance can be adjusted. If the resistance is still too heavy, check the gap between orange block and the bottom. It should be within 1-2 mm. If the gap is larger than 1-2 mm, the resistance will be heavier than normal.
-
Page 17: Chapter 6:Parts Replacement
CHAPTER 6:PARTS REPLACEMENT 6.1 SIDE COVER 1. Remove the back cover screws (020042-00). 2. Remove the side cover screws (020042-00). 3. Fold the rower, remove the undercover screws (020042-00) and DC power cord cover. Only OXFORD 6 has DC power cord cover. -
Page 18: Pedal
CHAPTER 6:PARTS REPLACEMENT 6.2 PEDAL 1. Remove the foot pad screws (004372-00). 2. Remove the pedal screws (004475-00). -
Page 19: Seat Pad
CHAPTER 6:PARTS REPLACEMENT 6.3 SEAT PAD 1. Remove the screws (004462-00) and rubber plate (1000354060) with L type wrench. 2. Remove the cap (1000409243) with some force. 3. Remove the seat pad. -
Page 20: Console & Console Wire
CHAPTER 6:PARTS REPLACEMENT 6.4 CONSOLE & CONSOLE WIRE 1. Remove the console mast cover (1000409269), console cover screws (004623-00), link screw (004488-AC) and nut (004926-00). 2. Remove wire connection carefully. 3. Remove side cover (section 6.1) and loosen front cover screws (004621-00) on both sides. Note: There is only one speed sensor wire connected with OXFORD 3 console board. - Page 21 CHAPTER 6:PARTS REPLACEMENT 6.4 CONSOLE & CONSOLE WIRE 4. Disconnect all the wire. 5. Remove the wire fixing screws. 6. Remove the console connect wire (1000411432) through console mast. Note: There is only one speed sensor wire in OXFORD 3 cover.
-
Page 22: Heart Rate Board （Oxford 6 Only
CHAPTER 6:PARTS REPLACEMENT 6.5 HEART RATE BOARD （OXFORD 6 ONLY） 1. Fold the machine and remove the screws (004621-00) under the slide rail. 2. Disconnect the wire of HR board. 3. Remove the HR board (1000412131) through the slide rail. -
Page 23: Rpm Sensor
CHAPTER 6:PARTS REPLACEMENT 6.6 RPM SENSOR 1. Remove the side cover (section 6.1). 2. Remove the fixing screw (020042-00). 3. Disconnect the sensor wire. Note: OXFROD 6’s is under the ECB motor, OXFORD 3’s is the only wire in the machine cover. For OXFORD 6 For OXFORD 3 4. -
Page 24: Controller Board （Oxford 6 Only
CHAPTER 6:PARTS REPLACEMENT 6.7 CONTROLLER BOARD （OXFORD 6 ONLY） 1. Disconnect the wire, remove the knob screws (004621-00) and remove the knob (1000414889). 2. Remove the knob cover (1000412398), lamp stand (1000412397) and butt plate (1000414975). 3. Remove the nut and pull out the board (1000412436). -
Page 25: Belt Pulley
CHAPTER 6:PARTS REPLACEMENT 6.8 BELT PULLEY 1. Remove the handlebar from the belt (1000426731). 2. Remove the screws on both sides (004505-00/004454-AH). 3. Remove the belt pulley (1000426737). -
Page 26: Ecb Motor/Tension Control
CHAPTER 6:PARTS REPLACEMENT 6.9 ECB MOTOR/TENSION CONTROL 1. Disconnect wire connections and steel rope connection. 2. Remove the screws (020256-00). 3. Remove the ECB motor (1000213379)/tension control (1000412305). Note: Tension control is for in OXFORD 3, there is no wire connected with it. -
Page 27: Ecb Controller
CHAPTER 6:PARTS REPLACEMENT 6.10 ECB CONTROLLER 1. Remove all the screws. R12:008394-00 R13:1000204290 R14:004931-00 R21:004899-00 2. Remove the screws on the other side. 3. Remove the ECB controller (056539-AX). -
Page 28: Chapter 7: Parts List
CHAPTER 7: PARTS LIST 7.1 LIST FOR OXFORD 3 Parts List SAP No. Console set 1000426730 Control panel 1000401826 Speed sensor wire 1000424265 Tension control 1000412305 ECB controller MD0208041AX/056539-AX Belt 1000423777 Screw;Button Head;M4X0.7PX8L ME0102124/020042-00 SCREW;SH;M8X1.25PX15L ME0104066/004475-00 Screw;BH;M5x12L ME0102029/004372-00 Screw;Socket Head;M6X1.0PX15L ME0104045/004462-00 Rubber Plate 1000354060... - Page 29 CHAPTER 7: PARTS LIST 7.2 LIST FOR OXFORD 6 PARTS LIST SAP No. Console set 1000428840 Console panel 1000401872 Connected wire 1000411432 Speed sensor wire 1000409377 Pulse sensor set 1000412131 Connect wire 1000411433 ECB motor 1000213379 ECB controller MD0208041AX/056539-AX Control board 1000412436 Belt 1000423777...
