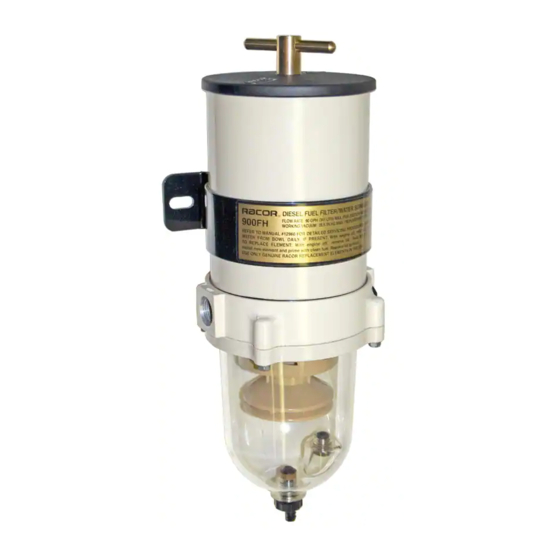

Turbine Series
900FH and 1000FH
Fuel Filter/Water Separators
Instruction Part Number 12960 Rev E
Turbine Series filters protect
precision engine components
from dirt, rust, algae, asphaltines,
varnishes, and especially water,
which is prevalent in engine fuels.
They remove contaminants from
fuel using the following legendary
three stage process:
Stage 1 - Separation
As fuel enters the assembly, it
moves through the centrifuge and
spins off large solids and water
droplets, which are heavier than
fuel, and fall to the bottom of the
collection bowl.
Stage 2 - Coalescing
Small water droplets bead-up on
the surface of the conical baffle
and cartridge filter. When heavy
enough, they too fall to the bottom
of the collection bowl.
Stage 3 - Filtration
®
Proprietary Aquabloc
filters repel water and remove
contaminants from fuel down to
2 micron (nominal). Aquabloc
cartridge filters are waterproof
and effective longer than water
absorbing filters.
Getting Started
cartridge
The following customer supplied
materials should be on-hand
before beginning installation.
• Shop Towels
• Diesel Fuel (about 1 gallon)
• Thread Sealant (no thread
tapes)
• Parker Super O-Lube
(RK 31605) or equivalent
• Fuel Hose
• Mounting Hardware (3/8˝
or M10 fasteners)
• Inlet/Outlet Fittings
Contact Information
Parker Hannifin Corporation
Racor Division
P.O. Box 3208
3400 Finch Road
Modesto, CA 95353
phone 800 344 3286
209 521 7860
fax 209 529 3278
racor@parker.com
parker.com/racor
Advertisement
Table of Contents
Related Manuals for Parker Racor 900FH
Summarization of Contents
Getting Started and Contact Information
Getting Started
Lists customer-supplied materials required before beginning installation.
Contact Information
Provides Parker Hannifin Corporation Racor Division contact details and website.
Mounting and Installation Diagrams
Mounting Information
Details dimensions and notes for mounting the 900FH and 1000FH filter assemblies.
Installation Diagram
Illustrates fuel system connections, bypass options, and clearance requirements.
Installation and Service Procedures
Installation Instructions
Covers general installation steps, positioning, and priming the filter assembly.
Positioning Filter
Guidance on optimal filter placement for water separation efficiency.
Before Installation
Essential safety and environmental checks before starting the installation process.
Installing Filter
Steps for removing old filters and installing the new Racor filter assembly correctly.
Priming Instructions
Procedure for filling the filter with fuel and preparing the system after installation.
Service Instructions
Guidance on routine maintenance and servicing of the filter assembly.
Draining Water
How to drain accumulated water and contaminants from the collection bowl.
Vacuum Side Applications
Specific draining procedures for filters installed on the vacuum side of the fuel system.
Pressure Side Applications
Specific draining procedures for filters installed on the pressure side of the fuel system.
Element Replacement and Heater Installation
Element Replacement
Details on when and how to replace the filter element for optimal performance.
Installing Optional In-Filter Heater
Instructions for installing the optional heater for cold weather starting aid.
HEATER WIRING INSTALLATION
Instructions and cautions for wiring the optional in-filter heater.
Heater Relay Kit Information
Racor Heater Relay Kit Information
Details recommended relay kits for the Racor in-filter heater.
Specifications and Parts
Specifications 900FH
Technical specifications for the 900FH fuel filter/water separator.
Replacement Parts 900FH
List of part numbers and descriptions for 900FH filter assembly components.
Specifications 1000FH
Technical specifications for the 1000FH fuel filter/water separator.
Replacement Parts 1000FH
List of part numbers and descriptions for 1000FH filter assembly components.
Troubleshooting Guide
Filter Safety Valve
Information regarding the safety valve and its sealing surfaces.
Heater Feed-Thru O-Ring
Specific tightening and inspection advice for the heater feed-thru O-ring.
Turbine Air Bubbles
Diagnosing upstream leaks based on air bubbles appearing from the turbine.
Collection Bowl Draining
Procedure for draining water and cleaning the collection bowl.
Drain Seal Leaks
Troubleshooting drain leaks or air ingress related to the drain.
Clogged Self-Venting Drain
Steps to clear a clogged self-venting drain.
Water Sensor Issues
Troubleshooting issues with the water sensor and its connections.
Correct Application
Importance of matching filter flow rating to engine requirements.
Water Sensors
How the water sensor feature alerts operators to high-water conditions.
Heaters - In-Filter Heaters
Information on in-filter heaters as starting aids and their power requirements.
Heater Testing
Procedure for testing the in-filter heater functionality.
