CABINET PARTS
REFRIGERATOR
For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00
(White)
(Black) (Stainless Steel−RH) (Stainless Steel−LH)
8−07 Litho In U.S.A. (tpm)
1
Part No. W10144698 Rev.B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KBLS22ETSS - ARCHITECT II 21.9 cu. Ft. Bottom and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KBLS22ETSS - ARCHITECT II 21.9 cu. Ft. Bottom

Summary of Contents for KitchenAid KBLS22ETSS - ARCHITECT II 21.9 cu. Ft. Bottom

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) 8−07 Litho In U.S.A. (tpm) Part No. W10144698 Rev.B...

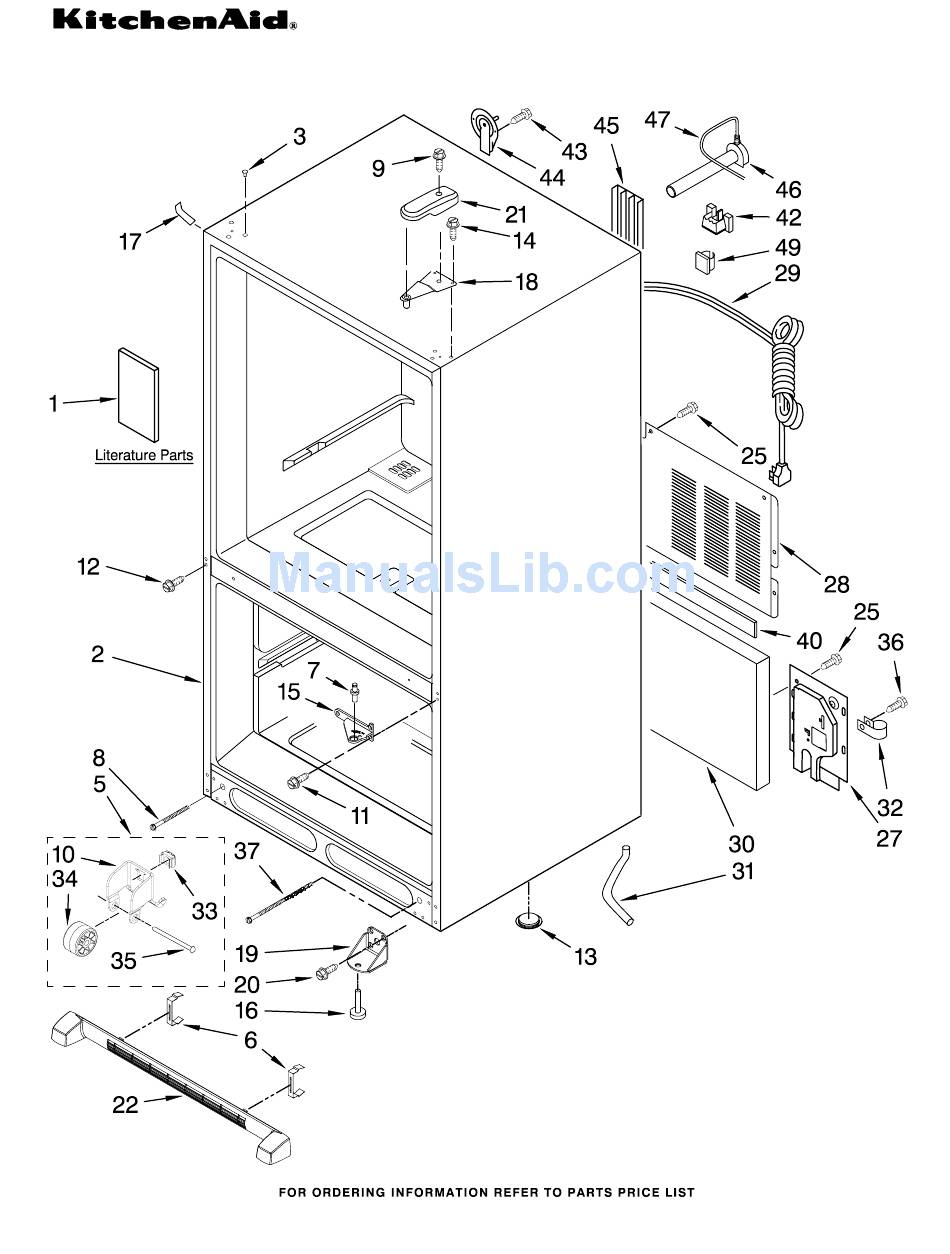

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION A3076901 Plug, Button Literature Parts 67004611 Cover, Water Valve 67006303 Screw W10136388 Owners Manual 28 12575101ED Cover, Unit W10123819 Energy Tag Hinge, Center 29 W10137695 Power Cord...

  • Page 3: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10144698...
  • Page 4 FREEZER LINER PARTS For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 12002497 Gear (2) (Includes RH & LH) 67003905 Cover, Light 67004261 Shaft 8170839 Socket, Light 67006737 Screw A0282812 Bulb, Light 67001035 Housing, Frz.

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10144698...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Liner (Not A 67002742 Plate, Switch 67003899 Cover, Damper Serviceable Part) 67006287 Screw 67006604 Insulation Y67003896 Bracket, Control 67005674 Cover 15 W10127429 Control, Damper and Lights...

  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10144698...
  • Page 8 REFRIGERATOR DOOR PARTS For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part DESCRIPTION Refrigerator Door (w/ Insulation) 67004777 White 67004775 Black W10136949 Stainless Steel−RH W10136950 Stainless Steel−LH Plug, Vent 67001130 White 67001131 Black 67003819 Door, Compartment 67001279 Tray, Dairy 67005672 Bin, Shelf (3) (Medium)

  • Page 9: Unit Parts

    UNIT PARTS For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10144698...
  • Page 10 UNIT PARTS For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006425 Screw 12001919 Evaporator Following Parts Not Illustrated 67004952 Blade, Fan and Optional Parts Not Included 67001084 Right Side 67005744 Base 67001083 Left Side 67006433 Screw...

  • Page 11: Shelf Parts

    SHELF PARTS For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10144698...
  • Page 12 SHELF PARTS For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part DESCRIPTION 67001317 Ladder, Side 67006400 Screw 67001073 Ladder, Center 67006360 Screw 67005730 Shelf, Fixed (1) 67005731 Shelf, Glide (2) 67006878 Glass, Crisper 67001056 Frame, Crisper 67001057 Support, Center Crisper Drawer 67005864 Slide,...

  • Page 13: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Freezer Door Gasket, Door Plug, Vent (2) (w/ Insulation) 10712401 White 67003554 White 67004838 Black 67004783 White 67003555 Black 67004781 Black 67002935 Screw...

  • Page 14: Icemaker Parts

    ICEMAKER PARTS For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Thermostat Mold & Heater 67006662 Screw (Not Available Assembly 67004710 Cover Order D7824706Q) (Not Available Module Assembly 681249 Screw (2) (Not Available Order D7824706Q)
  • Page 15 OPTIONAL PARTS (NOT INCLUDED) For Models: KBRS22ETWH00, KBRS22ETBL00, KBRS22ETSS00, KBLS22ETSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous TORX SCREW WRENCH PAINT, TOUCH−UP (1/2oz.) 1117510 Torx Key 72017 White 212643 Sealer, Gum 72032 Black (4 Feet) 479502 Tape, Vinyl...
