Instruction Manual
S1 & S2 & S3
Digital Multimeter
EN
rspro.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S2 and is the answer not in the manual?

Questions and answers

Related Manuals for RS PRO S2

Summary of Contents for RS PRO S2

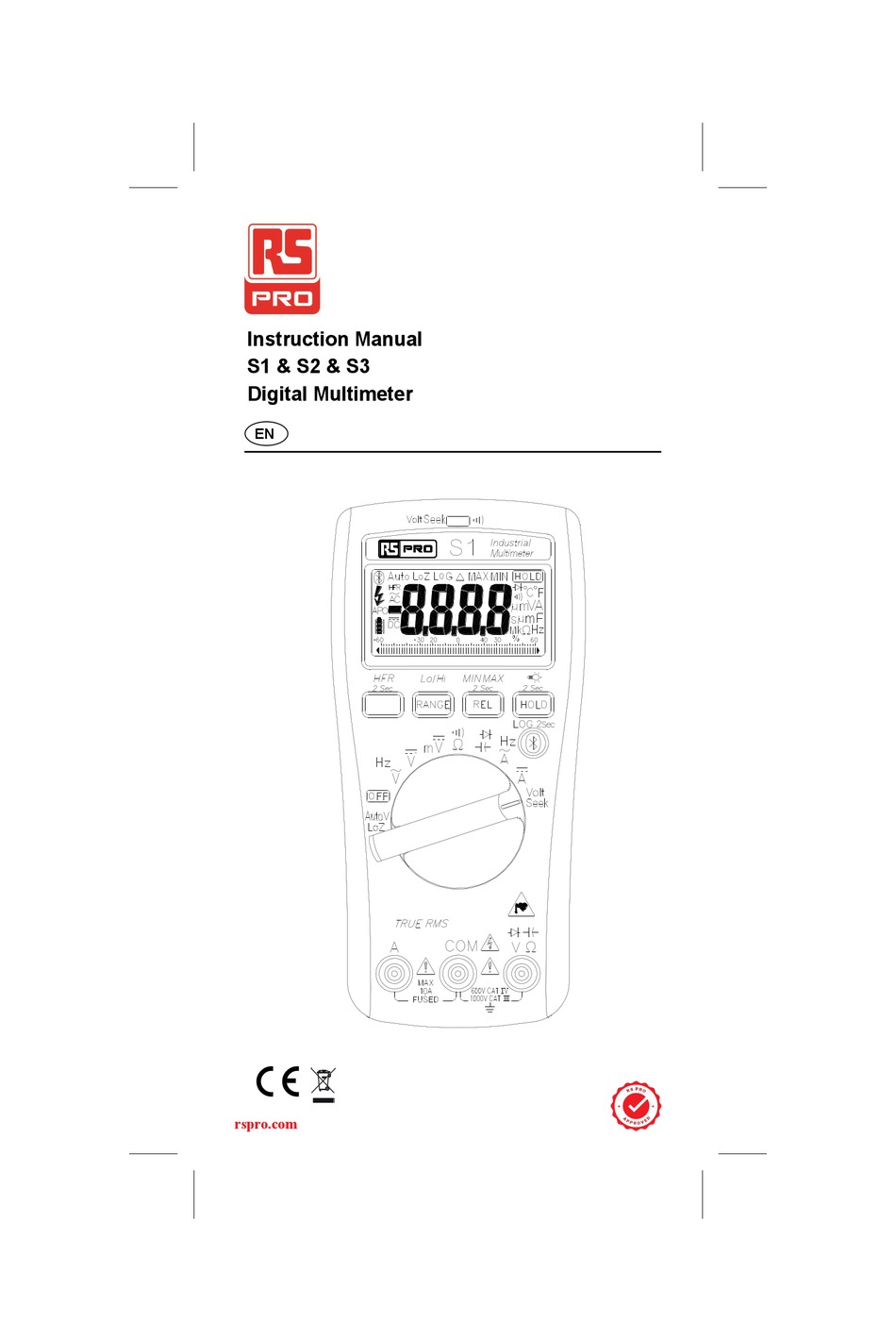

  • Page 1 Instruction Manual S1 & S2 & S3 Digital Multimeter  rspro.com...

  • Page 2: Read First

    S1 & S2 & S3 / EN  Warning Safety sheet  Warning Safety sheet ......
  • Page 3 S1 & S2 & S3 / EN • DO NOT USE the test leads above maximum ratings of CAT. environment, voltage and current, that are indicated on the probe and the probe tip guard cap. • DO NOT USE the test leads without the probe tip guard cap in CAT III and CAT IV environments.

  • Page 4: Unsafe Voltage

    S1 & S2 & S3 / EN Symbols as marked on the Meter and Instruction manual  Risk of electric shock  See instruction manual  DC measurement  AC measurement Bluetooth Both direct and alternating current  Equipment protected by double or reinforced insulation...

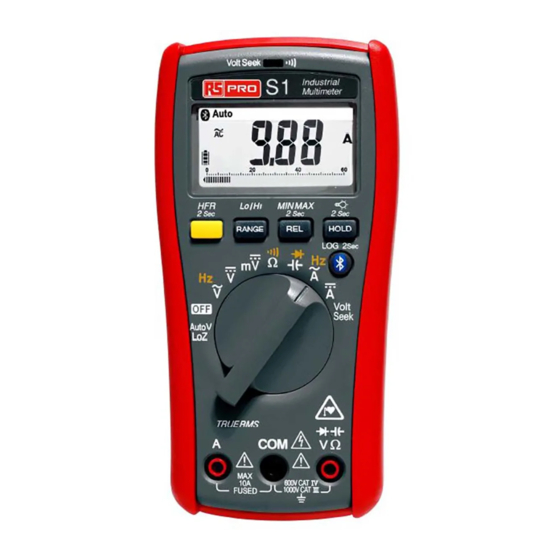

  • Page 5 S1 & S2 & S3 / EN Introduction The Meter Description Front Panel Illustration 1. Volt Seek Light 2. 6,000 count digital display 3. Push-buttons. 4. Rotary switch for turn the Power On / Off and select the function. 5. Input Terminal for Multi-function.
  • Page 6 S1 & S2 & S3 / EN Features Function ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ DC mV ✓ ✓ ✓ Frequency ✓ ✓ ✓ Resistor ✓ ✓ ✓ Continuity ✓ ✓ ✓ Diode ✓ ✓ ✓ Capacitor ✓...

  • Page 7: Making Basic Measurements

    S1 & S2 & S3 / EN Making Basic Measurements Preparation and Caution Before Measurement    Observe the rules of Warnings and Cautions.  CAUTION When connecting the test leads to the DUT (Device Under Test) connect the common test leads before connecting the live test leads ;...
  • Page 8 S1 & S2 & S3 / EN Measuring PV Voltage Dial the switch and press the Function button to select the measuring function.  CAUTION This function is only available with the dedicated PV test probe. Always select correct DC / AC mode to perform high voltage measurement.

  • Page 9: Measuring Current

    S1 & S2 & S3 / EN Measuring Current Disconnect Dial the switch and press the Function button to select the measuring function...
  • Page 10 S1 & S2 & S3 / EN Measuring Capacitance / Diode Dial the switch and press the Function button to select the measuring function Measuring Continuity / Resistance Black Dial the switch and press the Function button to select the...
  • Page 11 S1 & S2 & S3 / EN Measuring Temperature °C / °F Dial the switch and press the Function button to select the measuring function. (°C / °F) Volt Seek Do not hold across this line when sensing the hazardous voltage.
  • Page 12 S1 & S2 & S3 / EN Using the Function Switch Function Position Press the Function button to change the function on the same switch position. Range Button Auto Range Mode Manual Range Mode Switch range Press Range Button >2 Sec to Enter Auto Range Mode...
  • Page 13 S1 & S2 & S3 / EN MIN/MAX      Press Button > 2 sec to exit the MIXMAX mode The MAX/MIN mode records the min and max input values. When the input goes below the recorded min value or above the recorded max value, the meter records the new value.
  • Page 14 S1 & S2 & S3 / EN Relative Δ  Press the Relative button to enable/disenable this function. Backlight   HOLD Press the HOLD button over 2 sec to turn on/off Backlight. Auto Power Off After Specified Time Without Operation...
  • Page 15 S1 & S2 & S3 / EN Time Setting of Auto Power Off Press the function button and turn the meter on. Then press the function button to select the time. The time can be 5 minutes, 10 minutes, 20 minutes, and disabled (OFF).
  • Page 16 S1 & S2 & S3 / EN Testing LCD Monitor To turn on the meter after keeping HOLD button down. Function of LOG Button Pressing Bluetooth button while powering-up to select the mode – Data Logger mode, Manual Saving mode and Clear...

  • Page 17: Data Logger

    S1 & S2 & S3 / EN Data Logger The meter can store up to 4000 data in memory. Press Bluetooth button for more than 2 seconds to activate Data logger mode. The meter will enter Time interval setting mode. Press Bluetooth button again to select time interval.
  • Page 18 The open-air communication range is up to 10m. Download “RS Pro Connect” App. Turn on Bluetooth function of the meter and open “RS Pro Connect” to connect the DMM. The Bluetooth icon of the meter will freeze on LCD after the...

  • Page 19: Fuse Replacement

    S1 & S2 & S3 / EN Default Temperature Units Setting      Turn on the meter after keeping Bluetooth button down. Fuse Replacement...
  • Page 20 S1 & S2 & S3 / EN Low Battery and Battery Replacement Replace the battery as soon as the low battery indicator appears, to avoid false reading. Refer to the following figure to replace the batteries CAUTION Remove test leads from Meter before opening the battery...

  • Page 21: General Specifications

    Dimensions (W x H x D) : 74mm x 156mm x 44mm. Weight : 250g (including battery) Fuse Specification : Fast Action AC/DC 11A, 1000V, IR 30kA for RS S1 and S3 Fast Action AC/DC 440mA, 1000V, IR 10kA for RS S2 Batteries Life : 300 hours ALKALINE Battery...

  • Page 22: Electrical Specifications

    S1 & S2 & S3 / EN Electrical Specifications Accuracy is given as ± (% of reading + counts of least significant digit) at 23°C ± 5°C, with relative humidity Less than 80% R.H., and is specified for 1 year after calibration.
  • Page 23 S1 & S2 & S3 / EN (5) AC Voltage Range OL Reading Resolution Accuracy 600.0mV 660.0mV 0.1mV ±(1.0% + 5D) 6.000V 6.600V 0.001V 60.00V 66.00V 0.01V ±(1.0% + 3D) 600.0V 660.0V 0.1V 1000V 1100V Input Impedance : 10MΩ // less than 100pF...
  • Page 24 S1 & S2 & S3 / EN (9) DC μmA Range OL Reading Resolution Accuracy 600.0μA 660.0μA 0.1μA ±(1.0% + 5D) 6.000mA 6.600mA 0.001mA 60.00mA 66.00mA 0.01mA ±(1.0% + 3D) 400.0mA 440.0mA 0.1mA Overload Protection : Fuse AC/DC 440mA (10) AC μmA...
  • Page 25 S1 & S2 & S3 / EN Maximum measurement time : >5A for max.3 minutes with at least 20 minutes rest time. >10A for max.30 seconds with at least 10 minutes rest time. Frequency Response : 45 ~ 500Hz (Sine Wave)
  • Page 26 S1 & S2 & S3 / EN (16) Capacitance Range OL Reading Resolution Accuracy 1.000µF 1.100µF 0.001µF ±(1.9% + 5D) 10.00µF 11.00µF 0.01µF 100.0µF 110.0µF 0.1µF ±(1.9% + 2D) 1.000mF 1.100mF 0.001mF 10.00mF 11.00mF 0.01mF Overload Protection : AC/DC 1000V...
  • Page 27 S1 & S2 & S3 / EN (20) Temperature Range OL Reading Resolution Accuracy -40.0°C – 400.0°C 440.0°C 0.1°C ±(1% + 20D) -40.0°F – 752.0°F 824.0°F 0.1°F ±(1% + 36D) Accuracy is available with backlight off. The heat of backlight may deviate the measurement.

  • Page 28: Limited Warranty

    S1 & S2 & S3 / EN Limited Warranty This meter is warranted to the original purchaser against defects in material and workmanship for 3 years from the date of purchase. During this warranty period, RS Components will, at its option, replace or repair the defective unit, subject to verification of the defect or malfunction.
  • Page 29 Africa RS Components SA P.O. Box 12182, Vorna Valley, 1686 20 Indianapolis Street, Kyalami Business Park, Kyalami, Midrand South Africa www.rs-components.com Asia RS Components Ltd Suite 1601, Level 16, Tower 1, Kowloon Commerce Centre, 51 Kwai Cheong Road, Kwai Chung, Hong Kong www.rs-components.com China...
