Aruba APEX0565 Installation Manual

Aruba 560 Series Outdoor Access Points
Installation Guide

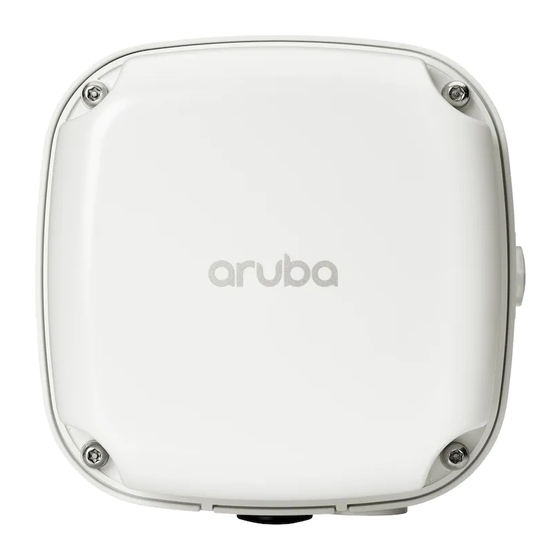

The Aruba 560 Series outdoor wireless access points (AP-565 and AP-567) are high-performance, multi-radio
wireless devices that can be deployed in either controller-based (ArubaOS) or controllerless (Aruba Instant)
network environment.
The Aruba 560 Series access points support IEEE 802.11ax standard, delivering high performance with the MIMO
(Multiple-Input, Multiple-Output) technology, while also supporting 802.11a/b/g/n/ac wireless services.
Package Contents
560 Series access point

Cable gland x 1

USB Type-C console cable x 1

Grounding lug and M4x6 screw x 1

Tools Required
Phillips screwdriver (#2 for M4x6 screw)

Flat blade screwdriver (Ethernet cable gland cover)

8mm allen or hex key (USB console cover)

The weatherproof caps for Ethernet and Console interfaces are connected to the access point, not loose in the
package.
Mounting kits for use with the 560 Series access points are sold separately. Contact your Aruba sales
representative for details.
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton,
including the original packing materials. Use these materials to repack and return the unit to the supplier if
needed.
Rev 01 | July 2020
1
