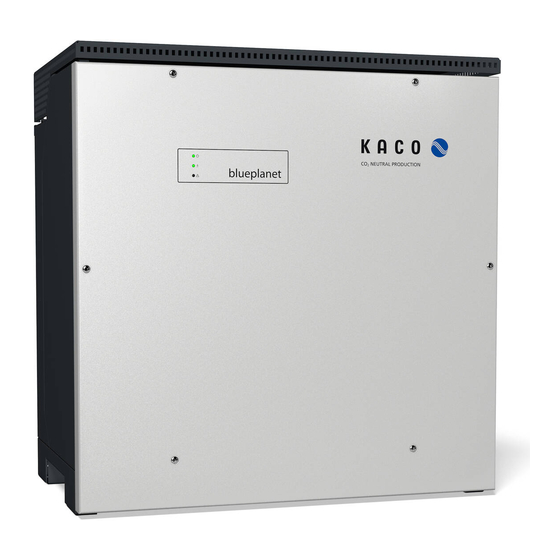

Summary of Contents for Kaco blueplanet 92.0 TL3 XL
Page 1
KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3 S; XL Manual nEnglish translation of German original Authorised electrician Important safety instructions These instructions form part of the product and must be carefully read, observed and stored in a place which is freely accessible at all...
Page 2
Legal provisions The information contained in this document is the property of KACO new energy GmbH. Publication of this document, in whole or in part, is subject to the written consent of KACO new energy GmbH. KACO warranty The latest version of our warranty conditions is available for download at http://www.kaco-newenergy.com.
When working on the PV generator, it is also necessary to switch off the DC voltage with the external DC isolator switch (e.g. at the string combiner or the KACO DC switchbox) in addition to disconnecting the PV generator from the grid.
The potential-free relay contact closes as soon as there is a fault during operation. You use this function, for example, to signal a fault visually or acoustically. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 9...
Page 10
Digital inputs It is possible to enhance the device with additional digital inputs by way of an expansion module (available from KACO Customer Service). This can be used to connect a ripple control receiver or a protective shutdown system.
Due to the brief open circuit voltage exceedance, there is no guarantee that the integrated overvoltage protection will work correctly if the ambient temperature is > 40°C. Page 12 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
5 Remove the uppermost side section and base section from the device. » If the device is in the correct installation position: Proceed with the installation of the mount. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 17...
2 Mark the positions of the drill holes using the slot in the mount. Page 18 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
2 Fit the device onto the upper mount by means of the mounting bracket. Fit the device onto the lower mounting bracket in full so that the device sits flush with its rear side on the mount. ( [See figure 17] [} Page 18]). KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 19...
The connection point for the AC supply is situated inside the housing. The DC input source is also connected inside the housing. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 21...
If the type A is used, the insulation threshold must be set to greater than/equal to (≥) 200kOhm in the “DC parameters” menu Configuration via web user interface [See section 9.4.2} Page 47]. For questions regarding the appropriate type, please contact the installer or our KACO new energy cus- tomer service.
Page 26
Otherwise, with the electrolytes present (e.g. Condensation water), the aluminum could be destroyed by the copper bus bars. Page 26 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
To this end, the threaded bolt on the underside of the device can be used. Page 28 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Within a segment, the KACO devices can be coupled to one another via the integrated switch in an Ethernet daisy chain, whereby the segment controller is connected to the first element of the chain. This topology is displayed in segment 2, for example.
Segment Controller. This configuration is shown as an example in segments 1 and M. As can be seen in the figure, a string combiner is assigned to each KACO device. In terms of communication, these are coupled in directly to the device via an RS485 cable (green cable). MODBUS RTU is used as the communication proto- col for this purpose.
Page 36
It is preferable to install this on a plant component. It is also possible to select an NTP server localized on the internet provided the device has direct access to the internet. Page 36 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 37
To start up the device directly, the first option is to carry out the installation interactively with a WIFI-compatible adapter. If such an adapter is not available, the other option is to perform an automatic configuration using a USB memory stick. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 37...
Page 38
Required components WiFi-compatible notebook, tablet or smartphone (Android or iOS devices can be used). USB WiFi stick (KACO accessory, type: WLAN adapter Digitus 150 N micro article no.: 3013222) Establishing a connection to the KACO device via WiFi 1 Connect the USB WiFi stick to the device and connect to the access point generated by the device using a notebook or mobile device.
Page 39
Ethernet cable (uncrossed patch cable) Establishing a connection to the KACO device 1 The device must be opened in order to connect the Ethernet cable! For safety reasons, KACO therefore recommends establishing a connection via WiFi. 2 The device's communication circuit board has 3 Ethernet ports that can be used: 1.
Page 40
For local host names, only characters in the range [a-z], [A-Z] and the minus character are permitted. Page 40 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 41
Fig. 54: Start-up via Segment Controller Area of application The network infrastructure already exists. All of the KACO devices in the segment can be reached via Ethernet using a Seg- ment Controller. NOTE: When multiple Segment Controllers are present, keep in mind that the Segment Controllers must not be con- nected to one another via the network during start-up.
Page 42
» Once the parameters have been adopted and the device has been restarted, the device is put into operation. Page 42 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
If the other device already had protection and the password for the new configura- tion is different, then the new configuration will be rejected. Page 46 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 47
4 Obtain NTP server settings from DHCP. 5 Specify the temperature unit. 6 Confirm the action field. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 47 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 57
F Set the voltage below which control is deactivated. Lock-Out voltage 10 – 124.8 [% Unom] KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 57 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 58
Once the dead time has expired, the control circuit is no longer subject to a delay and the set settling time determines the transient behavior. Page 58 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
The DC power supply must be guaranteed during initial start-up. The sequence of the settings required for initial start-up is preset in the configuration assistant. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 65...
( Time [ s ] ; U [ p . u .]) Fig. 74: Immunity to interference characteristic curve relative to the nominal voltage (p.u.) of the blueplanet 125.0TL3 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 75...
In this case, P(U) control is available for making opti- mum use of the capacity of the upstream grid. Page 76 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 81
In mode 2, the function is deactivated if the frequency rises above the configured value. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 81 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 82
PT-1 characteristic curve using a settling time of 5 Tau. The settling time is overlaid with the increasing and decreasing gradient. Page 82 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 83
Some grid connection rules require that the agreed reactive power be provided from every active power operating point of the plant without a reduction of the actual active power. Considering the fact that the KACO TL3 inverter all operate with a semi-circular P-Q operating range, a reduction in the active power is required during operation at maximum active power because an apparent power reserve is not available.
Page 85
Enhanced island detection method The new method by KACO new energy, enhanced island detection, employs a strategy to reliably detect island formation that is based on the characteristic differences between an interconnected grid and an islanded grid, thus ensuring reliable fast detection and prevention of false tripping.
2 Disconnect the DC side using the external DC isolator switch. DANGER! The DC cables are still live Page 88 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
GmbH Service. › The operator can only carry out actions marked with a B. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 89 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 90
B = Action of the operator; E = The indicated work may only be carried out by an authorized electrician! ; K = The indi- cated work may only be carried out by a service employee of KACO new energy GmbH!
Page 95
See action in the the permitted limit. This limit is country-spe- event of a fault 48 cific. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 95 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 96
This is not a fault message, it is a status mes- ment from the grid sage. operator. Page 96 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 97
If it does -> fault in the device. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 97 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 98
Switch on AC+DC -> if this is not success- ful, contact the ser- vice department Page 98 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 100
AC grid not possible. DC, wait 1 minute and switch on again. Page 100 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 101
(24 V) of the gate drivers is too low. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 101 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 102
(> 5 sec) [Chapter 9.6.1] or activate the grid connection using the web interface symbol. Page 102 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
Page 103
If fault numbers are displayed on the device but are not listed here, then it is usually necessary to have this looked at by your installation partner. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 103...
2 Use the lateral openings and lift the device off the mount. » The device has been removed. Proceed with packaging. Page 104 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
↻ The device is packaged. F Store the device in a dry place, in accordance with the ambient temperature range Environmental data. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 105...
Service and warranty If you need help solving a technical problem with one of our KACO products, please contact our service hotline. Please have the following information ready so that we can help you quickly and efficiently: Device name / serial number ...
