8. Installation and Connection

8. Installation and Connection
Video and Audio Connections
Your So Road Movie multimedia player supports Composite, S-Video or Component connections.
Depending on the capabilities of your TV, you only need to make one video connection from
these options. To hear sound through your TV, use audio connectors (RCA 2-CH) to connect the So
Road Movie multimedia player to the corresponding AUDIO-IN jacks on your TV or Hi-Fi Device.

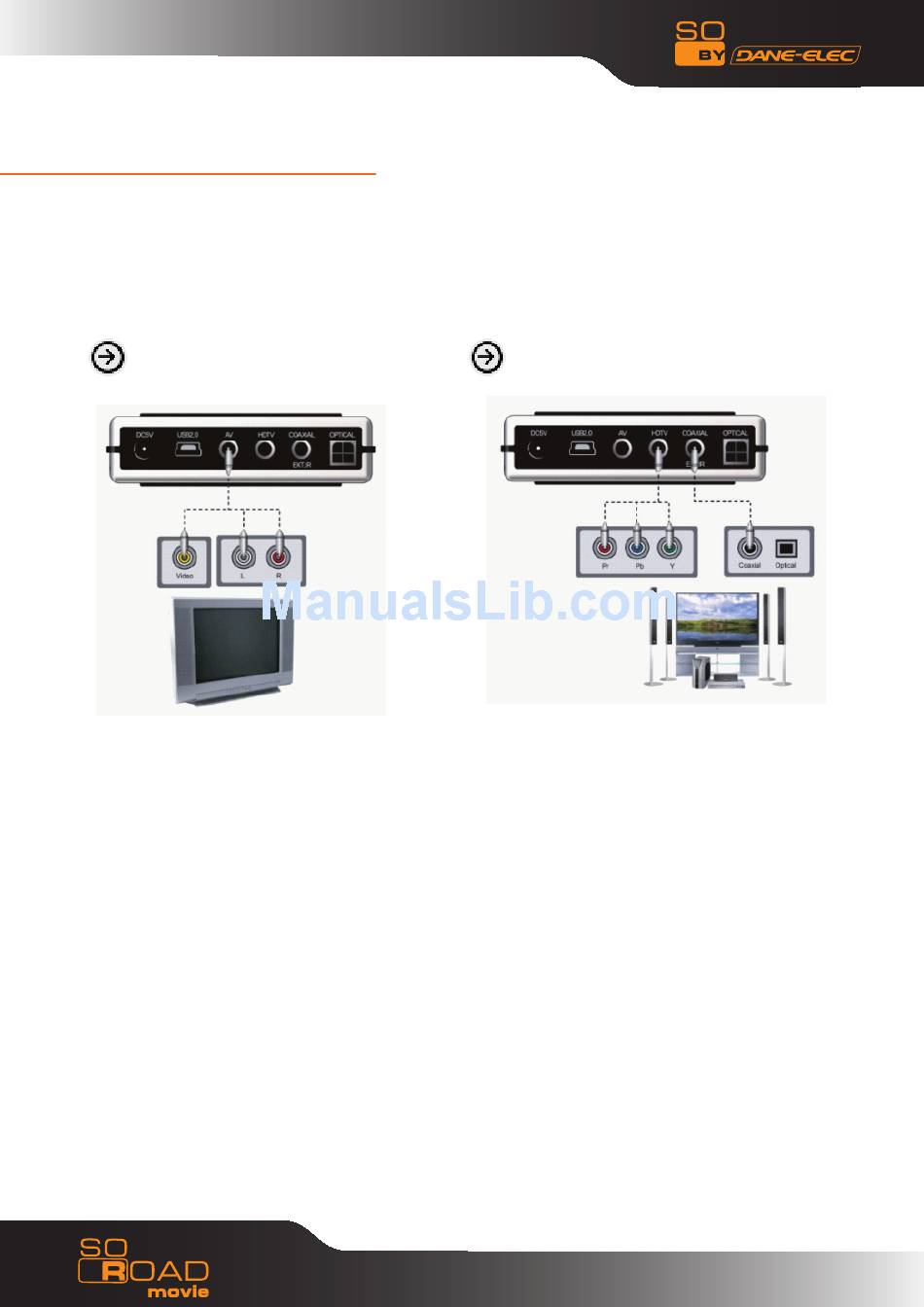

Connection with ordinary (Composite)
TV output
- Connect So Road Movie and your TV using the
yellow video cable (cable supplied).
- Connect your So Road Movie Multimedia player
and your TV to a power .
- Select appropriate video input mode on your TV
until you get the initial So Road Movie screen.
- Connect left (white), right (red) sound output to
the appropriate terminal of your TV or Hi-Fi Device
using the 2-CH RCA cable (cable supplied).
15

Connection to Component Output

- Connect the So Road Movie media player to
your TV using a Dual cable as shown in the image
above.
- Turn on the So Road Movie and TV.
- Select appropriate video input mode on your TV
(in this case, Component input mode) (cable not
supplied).
- Press TVOUT button on Remote Control (RC) to
change AV out to Component Out on your So Road
Movie
- Component connection is commonly used on
most HDTV's, DLP-TVs, Plasma TVs etc.
- When you have a multi channel decoder/amplifier
with coaxial input, you can enjoy 5.1CH high quality
sound through coaxial cable.
The above illustration shows how to connect with
coaxial cable (cable not supplied).
