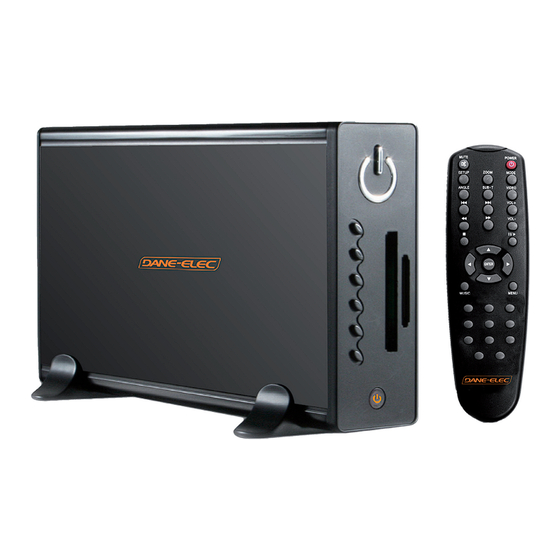

DANE-ELEC SO SPEAKY User Manual

DANE-ELEC SO SPEAKY User Manual

Multimedia hard disk drives
Hide thumbs Also See for SO SPEAKY:

Advertisement

Multimedia hard disk drives
User Manual
PC/MAC
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SO SPEAKY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DANE-ELEC SO SPEAKY

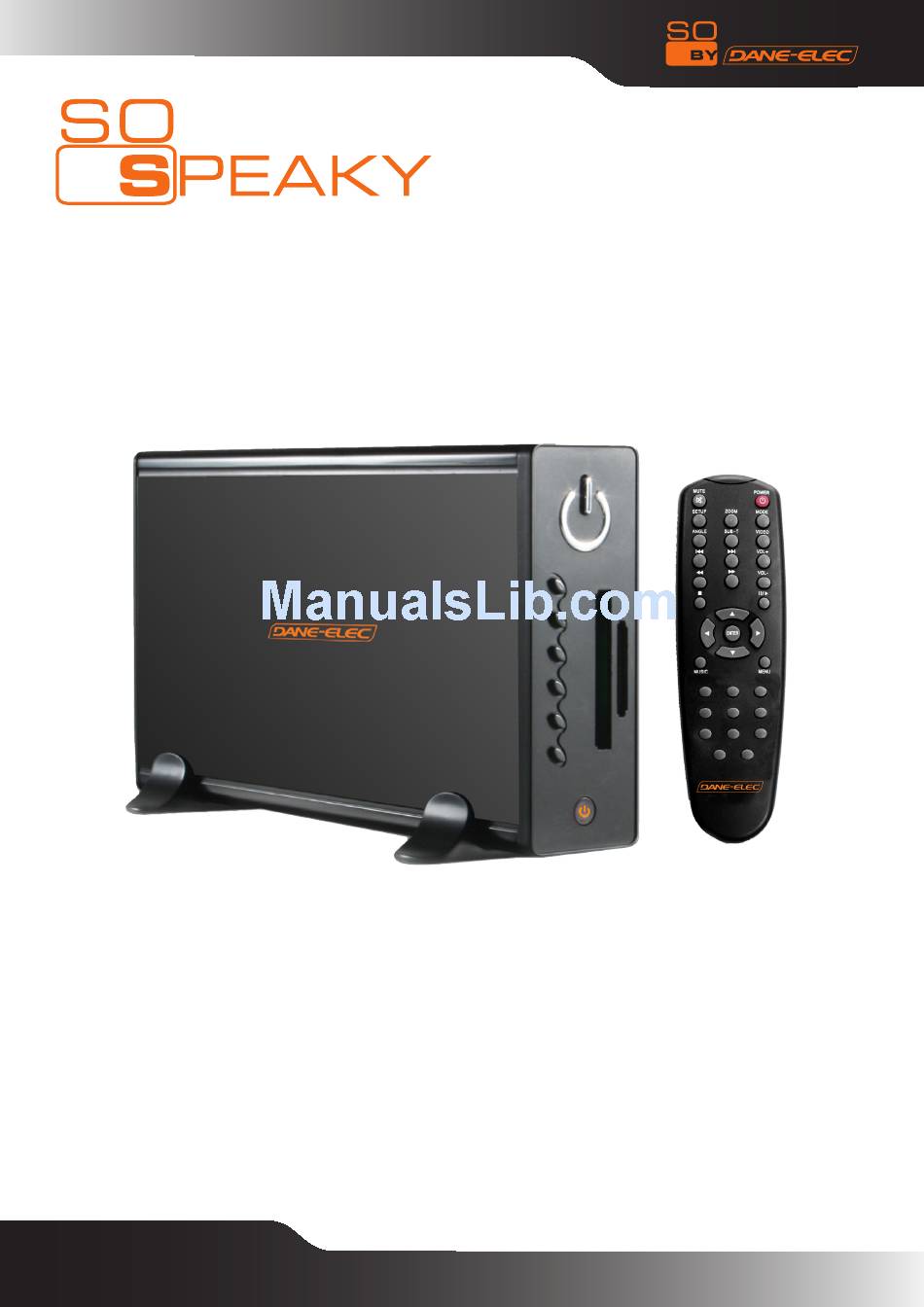

  • Page 1 Multimedia hard disk drives User Manual PC/MAC...
  • Page 2: Table Of Contents

    SOMMAIRE 1. Warnings 2. Usage Precautions 3. Device Performance 4. Accessories 5. Using the device 6. System configuration 7. Appendix...
  • Page 3 Thank you for choosing the So Speaky multimedia player. For better use of this product, please carefully read this user’s manual. A national patent has been filed for the So Speaky. Any imitation will be considered as pirating, and the person responsible will have to assume the legal consequences.
  • Page 4: Warnings

    3. The card reader cannot be connected to a PC. 4. Please note: Do not format the So Speaky hard disk! This could cause a loss of data that is vital for proper operation of the disk’s multimedia function. We do not guarantee the device if it has been formatted.
  • Page 5: Device Performance

    2. The So Speaky supports most current memory cards. 3. The So Speaky can connect to a Home Theatre for use at home. The So Speaky can be used as an external peripheral storage device.
  • Page 6 3.2 Technical Specifications : Hard disk capacity: Up to 1 TB Maximum number of partitions on the hard disk: 4 primary partitions Hard disk filing system: FAT32 Media files supported: 1. Subtitle: SRT, SSA, SMI 2. Audio: MP3, WMA, AAC, DT 3.
  • Page 7: Accessories

    4. ACCESSORIES Name Quantity So Speaky AC Power Adaptator Remote Control AV Cable Progressive scan video component cable USB Cable Quick Startup Guide So Util CD Batteries Remote control’s functions : BUTTON Function POWER Turns the device On / Off...
  • Page 8 Plays DVD in backward slow-motion mode Preview Selects or deselects the Preview in file mode On/off Note: Before unplugging the cable, turn off your So Speaky and wait 15 seconds to allow your multimedia hard disk to save its settings.
  • Page 9: Using The Device

    5. USING THE DEVICE The default language setting on your So Speaky is English. To change the language please follow the instructions below: Turn on your So Speaky - Press the Setup button on the remote Using the “Up, Down, Left, Right” buttons on your remote select “Set Preference”...
  • Page 10 AudioVideo connection (AV or CVBS). If you want to change the display mode make sure you have first changed your television settings to the desired mode and then change your So Speaky’s display mode by clicking the Video button on your remote:...
  • Page 11 1. To use the YPbPr output mode: Choose YPbPr as the output mode for the television. Press the VIDEO key on the So Speaky remote to select YPbPr OUT mode. The menu will appear on the television screen. Also connect the AV cable for sound (white and red) since the YPbPr cable only transmits the image.
  • Page 12 5.2 Use of the Memory Card If you insert your memory card (Ex: SD, CF…) before turning on your So Speaky , the files saved on your So Speaky’s hard disk as well as those on your memory card will be displayed on the screen.
  • Page 13 5.3 Photo Display Select the PHOTO icon in the main menu, and press the ENTER key while in photo navigation mode. By pressing the direction keys, you select a picture; by pressing ENTER, the photo is displayed. 5.4 Playing Music Select the MUSIC icon in the main menu and press the ENTER key to access the music library.
  • Page 14 Before playing a DVD on your So Speaky, please complete the following procedure: a. Connect the So Speaky to the computer via the USB cable. By doing this, you will be able to see the hard disk’s content displayed on the computer.
  • Page 15 5.6 File Management Select the FILE icon in the main menu then press ENTER to access the file library.Select the file with the direction keys and press ENTER to play the selected file. Sélectionnez le fichier à l’aide des touches de direction, et appuyez sur ENTER pour lire le fichier sélectionné.
  • Page 16 So Speaky’s hard disk so they can be read faster. Pressing the STOP/RETURN key will stop the file being played; pressing and holding it for a few...
  • Page 17 The first time it is used as a peripheral storage device, a driver must be installed if the computer’s storage system is an older one. For the first use, turn the So Speaky on, and connect it to the computer via the USB cable. The installation process will begin on the computer.
  • Page 18: System Configuration

    - Select your external hard disk and confirm that you would like it to be stopped - Disconnect the USB cable that connects the So Speaky to the computer. Note: Before disconnecting any cables from your So Speaky, turn it off.
  • Page 19: Appendix

    7. Appendix : Function Description : Production Function 3.5” USB hard disk with media player functions AV output interface, video output interface with progressive scan Output Interface component; VGA output interface, input interface Sound : MP1.MP2.MP3.AC3 Video : MPEG1.2.MPEG4.Divx.Xvid.VCD.DVD(*.MPG;*.MPEG*.DAT;*. Media Format AVI :*.VOB;*.MP4) Picture : JPEG, MJPEG Audio Output...
