Encore ENRTR-514 Datasheet

4 ports broadband router

Hide thumbs Also See for ENRTR-514:

Download this manual See also: User Manual

ENRTR-514

4 Ports Broadband Router

The ENRTR-514 4 Ports Broadband Router is specially designed for small enterprise, office

and SOHO (Small Office / Home Office) to connect the Internet. ENRTR-514 uses advanced

WavePlus broadband router solution and provides a set of completely industry standard

features for high-speed Internet access. ENRTR-514 offers Quick Setup Wizard for easy

installation and friendly Help pages for each step.

The ENRTR-514 Broadband Router provides maximum transfer rate up to 90Mbps from

WLAN to LAN and 100Mbps from LAN to LAN. The ENRTR-514 Broadband Router also

provides many management functions and flexible access control; including DHCP Server,

Virtual Server, DMZ host, firewall, static routing table and limiting staff or user to browse

selected Web sites.

This product is made in ISO9001 approved factory and complies with FCC Part 15

regulations and CE approval.

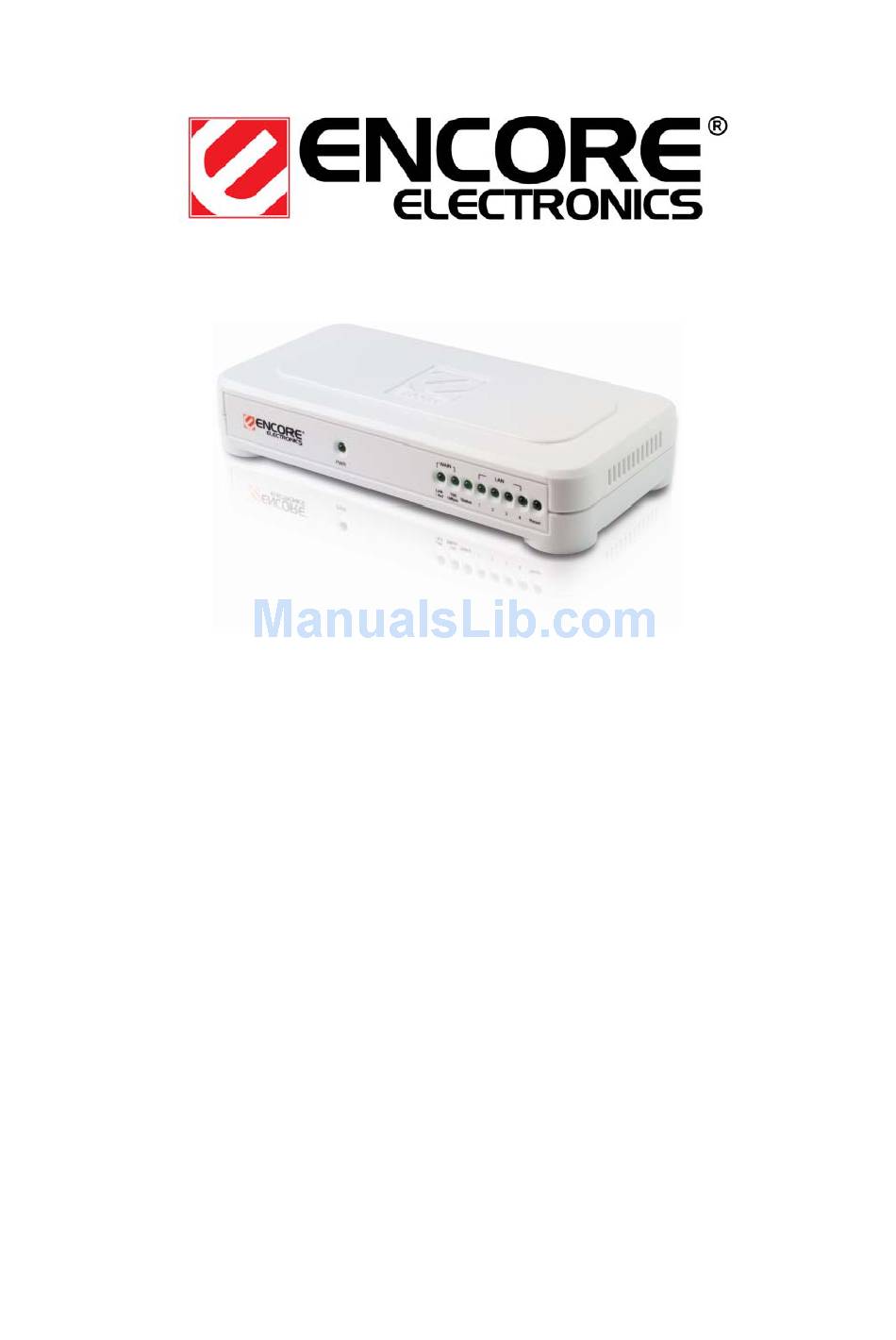

Page 1 ENRTR-514 4 Ports Broadband Router The ENRTR-514 4 Ports Broadband Router is specially designed for small enterprise, office and SOHO (Small Office / Home Office) to connect the Internet. ENRTR-514 uses advanced WavePlus broadband router solution and provides a set of completely industry standard features for high-speed Internet access.
Page 2: Features And Benefits
Features and Benefits  Maximum transfer rate up to 90Mbps from WAN to LAN, 100Mbps LAN to LAN  Friendly GUI Configuration and Management software  Supports IEEE 802.3 full duplex flow control  Built-in DHCP server automatically assigns IP address to all workstations on your LAN. ...
Page 3: Package Contents
LED Indicators Power x 1, Status x 1, WAN x 1, LAN x 4 Power AC 9V, 1A Dimension (L x W x H) 150mm x 75mm x 28mm Net Weight 125g Operating Temperature 0°C ~ 40°C (ambient) Humidity 5 % ~ 95 % Storage Temperature 0°C ~ 70°C Supported OS...
