Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions

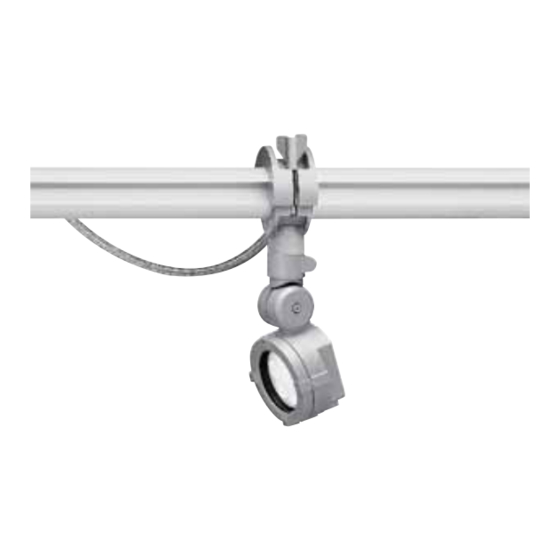

RAIL66 Projector
RAIL66 version
FLC121 #7 LED
FLC131 #7 LED
FLC141 #7 LED
Space frame version
FLC121 #7 LED
FLC131 #7 LED
FLC141 #7 LED
Advertisement
Related Manuals for WE-EF Space frame FLC141 #7 LED
Summary of Contents for WE-EF Space frame FLC141 #7 LED
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions RAIL66 Projector RAIL66 version FLC121 #7 LED FLC131 #7 LED FLC141 #7 LED Space frame version FLC121 #7 LED FLC131 #7 LED FLC141 #7 LED Do not open during installation Surge Protection This product is factory-sealed.
- Page 2 RAIL66 Projector FLC121 #7 355° RAIL66 version Space frame version FLC131 #7 355° RAIL66 version Space frame version FLC141 #7 RAIL66 version Space frame version IP66, IK07, Class I, ta = 40°C Weight RAIL66 (kg) Space frame (kg) for FLC121 #7 for FLC131 #7 for FLC141 #7...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out by a suitably quali ed and trained professional. -
Page 4: Installation
Installation The product must be installed and maintained by a suitably quali ed professional in compliance with latest building/construction and/or electrical regulations and relevant legislation. Warning: Switch off mains electrical supply prior to installing and connecting the luminaire. Notice: If the luminaire is modi ed by anybody other than the original manufacturer, then the warranty will no longer be valid and shall become the full respon- sibility of the modifying person/organisation. -
Page 5: Installation Procedure
Installation Procedure Installation – RAIL66 version Prior to installing the luminaire, mount and connect the selected RAIL66 mounting system in accordance with relevant installation instructions 1) Switch off mains electrical supply. 2) Check that rating shown on luminaire label conforms with mains electrical supply. 12/17 IP66 FLC121-LED 220-240V50-60/Hz... - Page 6 5) Remove protective cover Z from mains outlet 6) Loosen screws H and I slightly. Aim luminaire Y. Insert in-line connector G and tighten. in desired direction, retighten screws H and I. Attention: On any mains outlet Y’ that is not used, protective cover Z’...
- Page 7 Installation – Space frame version Suitable for space frame diameter 48-60 mm. 1) Switch off mains electrical supply. 2) Check that rating shown on luminaire label conforms with mains electrical supply. 12/17 IP66 FLC121-LED 220-240V50-60/Hz 145-XXXX SOE XXXXXXX LED 3000K 12W item no. XXX (example) 3) Determine desired position of luminaire A 4) Detach gear box cover D by loosening screws S.
- Page 8 5) Feed mains supply cable E through cable 6) Connect mains supply cable E leads to gland G (Fig. I). respective terminals in terminal connector K: a) ON/OFF (L = Phase, N = Neutral, = Earthing) b) 1-10 V/DALI (L = Phase, N = Neutral, = Earthing, DA/DA = DALI control line, D–/D+ = 1-10 V control line).
- Page 9 Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9209W0419 © WE-EF 2019 Technical speci cations are subject to change.
- Page 10 WE-EF LEUCHTEN Installation and Maintenance Instructions RAIL66 Projector and Floodlight Mounting System...
- Page 11 Projector and Floodlight Mounting System RAIL66 Versatile mounting system, developed in conjunction with and engineered for a dedicated range of RAIL66/UNIVERSAL 310-9200 310-9202 310-9210 310-9212 310-9220 310-9222...
- Page 12 RAIL66/CANTILEVER 310-9230 310-9232 310-9240 310-9242 310-9250 310-9252 Installation propriate to prevailing site conditions, including structural and wind loads etc. Luminaire Installation Refer to separate, dedicated installation instructions.
- Page 13 Installation Procedure - RAIL66/UNIVERSAL reposition covers A. Tighten screws B in a criss- 9) For luminaire installation, see overleaf, dedicated with mains electrical supply. installation instructions. Attention: holes D and insert nylon plugs E. ness of protective covers Z’ on mains outlets Y’. Warning Remove cover(s) only when installing luminaire(s).
- Page 14 Optional Mounting Accessories for RAIL66/UNIVERSAL Fig. I Fig. II ø 12 Column Fitters (pair) 310-9290 310-9294...
- Page 15 Installation Procedure - RAIL66/CANTILEVER Pay particular attention to tension-free alignment of terminal connector J. Tighten screws D in a with mains electrical supply. evenly. Warning: In the process, do not apply any load to holes F and insert nylon plugs G. Warning tightening screws B.
- Page 16 WE-EF LEUCHTEN WE-EF LIGHTING Germany Thailand info.germany@we-ef.com WE-EF LUMIERE WE-EF LIGHTING France Australia info.france@we-ef.com info.australia@we-ef.com WE-EF HELVETICA WE-EF LIGHTING info.usa@we-ef.com...
