Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions

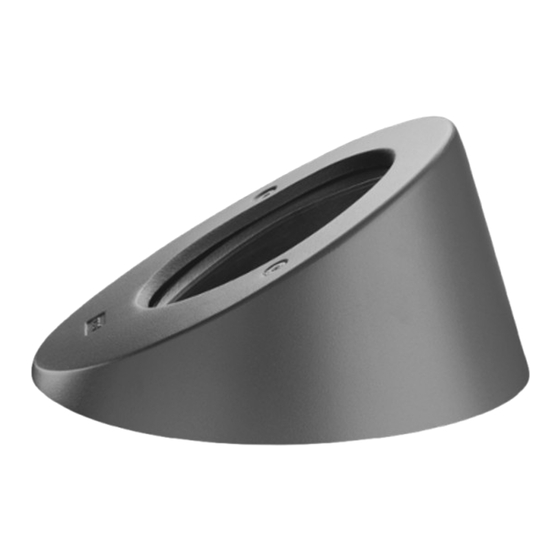

Inground Luminaire
ESC330-FS LED
ESC340-FS LED
Advertisement
Related Manuals for WE-EF ESC330-FS LED
Summary of Contents for WE-EF ESC330-FS LED
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Inground Luminaire ESC330-FS LED ESC340-FS LED Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance with Refer to the instructions contained in this applicable standards.
- Page 2 Inground Luminaire ESC330-FS ESC340-FS IP67, Class I, ta = 40°C...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out by a suitably quali ed and trained professional. -
Page 4: Installation Methods
Installation Installation Methods The product must be installed and maintained by a Attention: The luminaire is factory-sealed and does suitably quali ed professional in compliance with latest not need to be opened during installation. building/construction and/or electrical regulations and relevant legislation. For proper installation, use the supplied installation blockout. - Page 5 Phase One Phase Two Blockout Installation Procedure Luminaire Installation and Electrical Connection (during earth or masonry work) 5) Switch off mains electrical supply. 1) Ensure a suitable recess is provided to accommo- 6) Check that rating shown on luminaire label con- date installation blockout/mounting ring assembly forms with mains electrical supply.
