WE-EF LIGHTING
Installation and
Maintenance Instructions

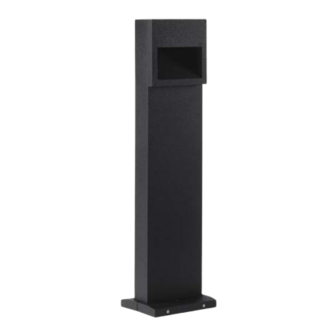

Bollard
QSI254 LED
INSTALLER
HOTLINE
+61 458 933 399
7am – 7pm AEST
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
Advertisement
Related Manuals for WE-EF Bollard QSI254
Summary of Contents for WE-EF Bollard QSI254
- Page 1 WE-EF LIGHTING Installation and Maintenance Instructions Bollard QSI254 LED INSTALLER HOTLINE +61 458 933 399 7am – 7pm AEST Surge Protection This product features built-in surge protection circuitry in compliance with applicable standards. For comprehensive protection of a luminaire installation against lightning and...
- Page 3 Bollard QSI254 Class I, ta = 40C, 6 LED / 10W ø 7 – 12 mm (TPS) 1.5 – 2.5 mm max. cross sectional area 2,5 mm Note : Not suitable for loop through. Grommets supplied are suitable for single round or single flat cable Accessories: Planted root –...
-
Page 4: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out by a suitably quali ed and trained professional. -
Page 5: Installation Procedure
Installation Installation Procedure The product must be installed and maintained by a It is recommended to incorporate the optional planted root ESV4 (A) to facilitate a rigid installation. suitably qualified p erson i n c ompliance w ith t he latest applicable regulations and relevant legislation. - Page 8 WE-EF LIGHTING Thailand Australia Tel +66 2 738 9610 Tel +61 3 8587 0444 Fax +66 2 175 2174 Fax +61 3 8587 0499 info.asiapacifi c@we-ef. com info.australia@we-ef.com INSTALLER HOTLINE TO9139W0713 QSI254_140121_REV1 +61 458 933 399 © WE-EF 2021 7am – 7pm AEST Technical specifications are...
