Pelton & Crane SP30 Installation Instructions Manual

Pelton & Crane SP30 Installation Instructions Manual

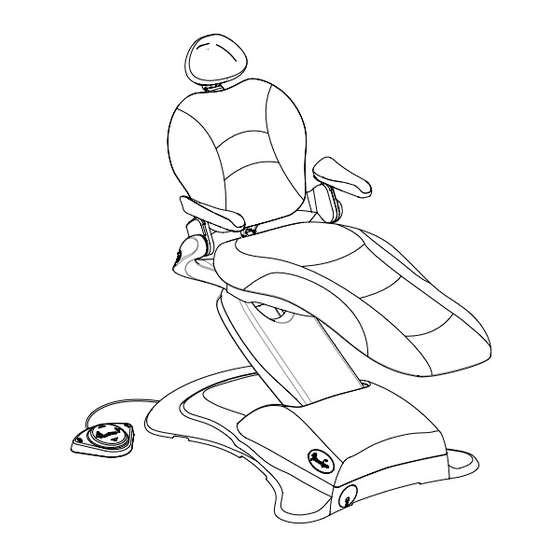

Dental chair

Advertisement

Model: SP30
Catalog: 3301
Model: SP30
Catalog: 3302
Model: SP30
Catalog: 3303
Model: SP30
Catalog: 3304
Spirit 3300
Series
Dental
Chair
Installation Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP30 and is the answer not in the manual?

Questions and answers

Summarization of Contents

General Information for Spirit 3300 Dental Chair
Definition of Symbols Used
Explains common symbols and terms found in the manual and on the equipment for clarity.
Product Disposal Guidelines
Instructions for proper disposal of the device in compliance with local environmental regulations.
Electromedical Device Interference
Recommendations to ensure operational safety with other electromedical devices.
Incompatible Units or Accessories
Guidance on using only approved units and accessories to maintain safety and function.
Obtaining Technical Literature
Information on how to request technical documentation for repair and service.
Storage and Transport Conditions
Specifies the temperature and humidity ranges for storage and transport.
Working Environment Specifications
Defines the recommended ambient temperature, humidity, and pressure for operation.
Electrical Specifications
Details on voltage, cycles, amperage, and fuse identity for the dental chair.
Safety Information for Dental Chair
General Safety Precautions
Key safety precautions to prevent injury and equipment damage, covering magnets, disinfection, load limits, and more.
Installation Instructions for Spirit 3300 Dental Chair
Step 1: Initial Inspection and Positioning
Inspect for damage, secure units, and slide chair off pallet to installation location.
Step 2: Headrest Installation
Remove shipping straps and install the headrest into the backrest section.
Step 3: Chair Positioning and Leveling
Ensure chair is stable and level, removing brake cover and locking pin.
Step 4: Handle Ellipse or Rear Mount Configurations
Follow specific instructions for ellipse or rear mount configurations.
Step 5: Prepare for Seat Assembly
Remove nylon washers, metal washers, and lock nuts from the upper structure.
Step 6: Seat Cushion and Rail Preparation
Remove seat cushion from rail, ensuring no damage to cylinder shaft.
Step 7: Install Seat Rail Assembly
Install seat rail onto bushings and re-assemble hardware securely.
Step 8: Adjust Shroud Gap
Adjust shroud gap to ensure proper clearance with the backrest support.
Step 9: Connect Utilities and Test Functions
Connect electrical, air, water, and test chair functions through its range of motion.
Operation of the Hydraulic System
Hydraulic System Components
Details on the hydraulic system components, lines, and reservoir for chair movement.
