Summary of Contents for Pelton & Crane Spirit 1800 Series
- Page 1 Model: SP18 Catalog: 1801 Model: SP18 Catalog: 1802 Spirit 1800 Model: SP18 Series Catalog: 1803 Dental Chair Model: SP18 Installation Instructions Catalog: 1804 Model: SP18 Catalog: 1805 Model: SP18 Catalog: 1806...
-
Page 2: Table Of Contents
Table of ConTenTs sYsTEM OVERVIEW ....................................... 3 GEnERal InfORMaTIOn ......................................4 safETY InfORMaTIOn ......................................5 InsTallaTIOn InsTRucTIOns....................................6 1800 DEnTal cHaIR WIRInG DIaGRaM ................................9 DEnTal cHaIR DIaGnOsTIc cODEs .................................. 10 HYDRaulIc cOnTROl ValVE ....................................11 InsTallaTIOn cHEcklIsT ....................................12 WaRnInG: Federal law restricts this device to sale by or on the order of a dentist. -
Page 3: System Overview

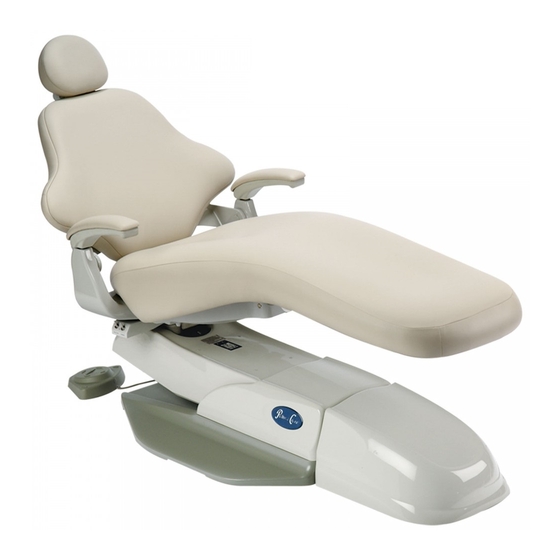

sYsTeM oVeRVIeW Quick Release Dual Articulating Headrest Chair Back Chair Seat with Scuff Cover Articulating Armrest Truss Pump Cover Base J-box 062044 R02... -
Page 4: General Information
GeneRal InfoRMaTIon PRoDUCT DIsPosal Contact your local authorized dealer for proper disposal of the device to ensure compliance with your local environmental regulations. Definition of Symbols The following symbols and terms may be used throughout this InTeRfeRenCe WITH eleCTRoMeDICal DeVICes To guarantee the operational safety of electromedical devices, it is manual and your equipment: recommended that the operation of mobile radio telephones in the... -
Page 5: Safety Information
safeTY InfoRMaTIon Review the following safety precautions to avoid injury and prevent damage to this equipment. Use this product only as specified. WaRnInG: Failure to disinfect equipment WaRnInG: A dental chair may include between patients could expose user/ magnets in the construction of the device which may temporarily affect patient to cross contamination and bio- the function/programming of some... -
Page 6: Installation Instructions
InsTallaTIon InsTRUCTIons sTeP 1: sTeP 2: Inspect chair for damage before beginning installation. Remove shipping straps and remaining packaging on Make sure any attached units are properly secured chair equipment. Install the headrest into the backrest (and will not swing around as chair is moved). Remove section as shown. - Page 7 InsTallaTIon InsTRUCTIons, ConT’D sTeP 3: sTeP 4: Remove the nylon washers, metal washers and lock If your chair has an ellipse or rear mount, follow the nuts leaving the nylon bushings in place as shown instructions that came with these configurations for the installation steps.
- Page 8 InsTallaTIon InsTRUCTIons, ConT’D sTeP 7: sTeP 8: Properly connect external facility electrical, air and water to Pivot seat rail up and down to ensure it moves freely with chair as needed. no side to side play. There should be slight resistance from nuts as you lift up the chair rail.
-
Page 9: 1800 Dental Chair Wiring Diagram
1800 DenTal CHaIR WIRInG DIaGRaM 062044 R02... -
Page 10: Dental Chair Diagnostic Codes
DenTal CHaIR DIaGnosTIC CoDes INPUT STATUS DIGIT INPUT STATUS No Input Foot switch Button Pressed Touch Pad Button Pressed Button on Both are Pressed Loss of Input Signal OUTPUT STATUS DIGIT OUTPUT STATUS No Motion Backrest in Motion Base in Motion Both in Motion Receiving Input to Move But No Motion is Detected Backrest at Soft Limit... -
Page 11: Hydraulic Control Valve
HYDRaUlIC ConTRol ValVe Wire #4, back up, TV3 Wire #2, base up, TV1 Wire #5, back down, TV4 Wire #3, base down, TV2 CoMMon CHAIR SPEED ADJUSTMENTS Adjust screws shown to the right: TV2 = Base Down TV4 = Backrest Down TV1 = Base Up TV3 = Backrest Up To increase speed, turn adjustment... -
Page 12: Installation Checklist
InsTallaTIon CHeCklIsT Verify the following after installation or servicing of the unit: All manuals are present. All labels are present and legible. No mechanical damage from installation. The chair is connected to the correct power source. The chair is sitting on a level surface and is stable. Lumbar and back Ergosoothe features are functioning properly (if present). - Page 13 062044 R02...
- Page 14 ©2017, Pelton & Crane 11727 Fruehauf Drive Charlotte, NC, 28273 - USA P/N 062044 Rev. 02, 03/27/17 We reserve the right to make any alterations which may be due to any technical improvements Printed in USA 062044 R02...
