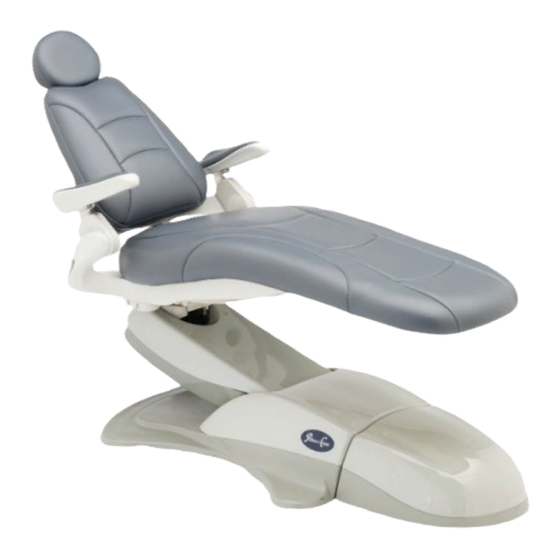

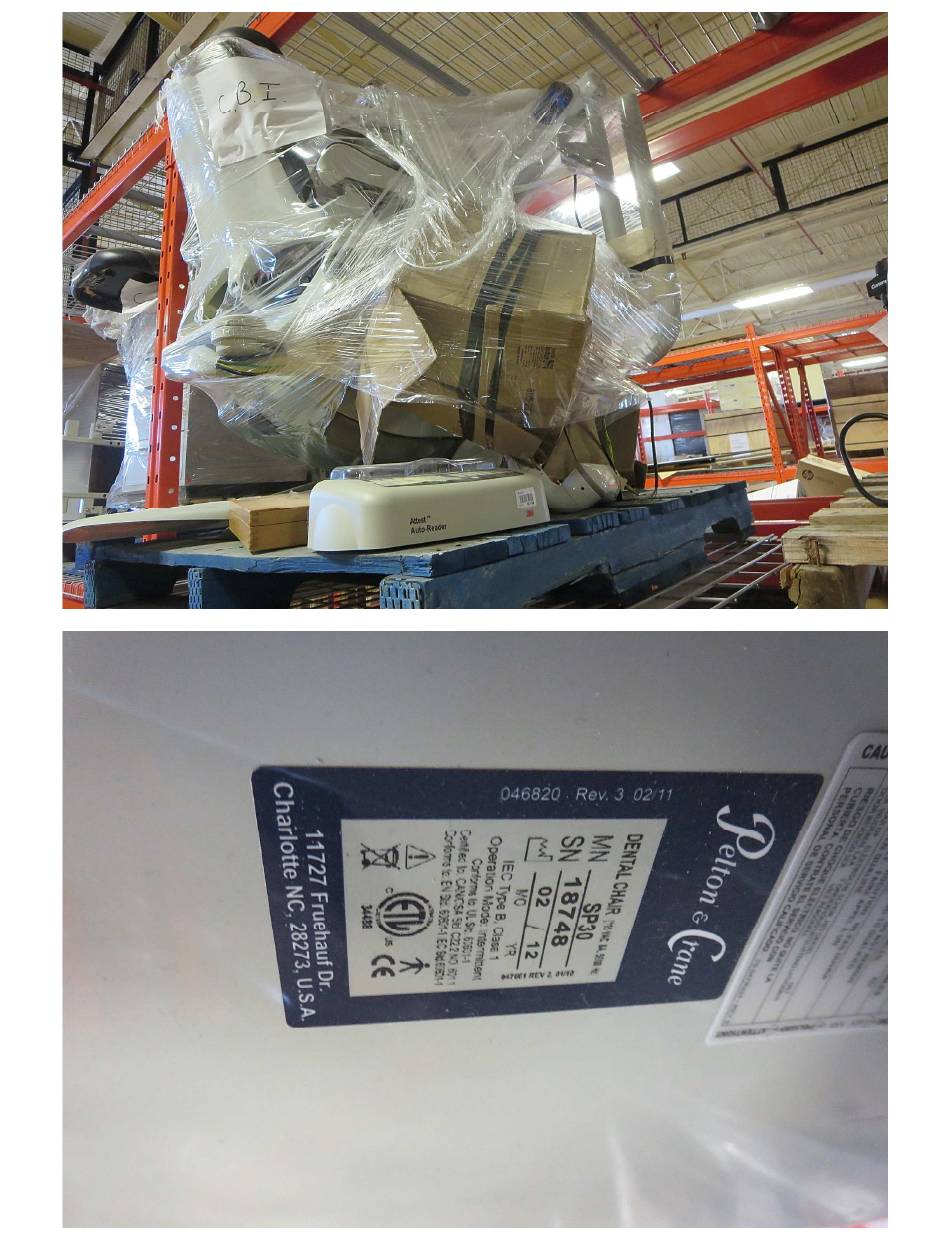

- Page 1 Pelton and Crane Series 3000 Dental Chair - Collins Bay Institution Warehouse...
- Page 2 PIRIT 3000 CHAIR TECHNICAL DIMENSIONAL DATA...
- Page 3 PIRIT 3000 CHAIR Dimensions w/ Junction Box Plumbing Diagram...
- Page 4 PIRIT 3000 CHAIR height Dimensions Technical Data Chair Weight: 360 lbs. Electrical Specifications: 115V, 50/60 Hz 7A 35 ½” 31 5/8” 23 3/4” 32” 22” 18” 19 3/4”...
- Page 5 Model: 3001 Spirit 3000 Series Dental Chair Model: 3002 Installation Instructions Model: 3003 Model: 3004...
-
Page 6: Table Of Contents
Table of ConTenTs InsTallaTIon InsTruCTIons ConTenTs Table of ConTenTs ......................................2 sysTem overview ....................................... 3 general informaTion ......................................4 3000 DenTal Chair wiring Diagram ................................7 DenTal Chair DiagnosTiC CoDes ................................... 8 hyrauliC ConTrol valve ....................................9 aDDenDum To 3000 series Chair insTallaTion manual .......................... 10 insTallaTion CheCklisT ....................................11 noTes ............................................. -
Page 7: System Overview
sYsTeM oVerVIeW Quick Release Articulation headrest Chair Back Articulating Chair Seat & Armrest Toeboard with Scuff Cover Dual Integrated Touch Pad Pump Cover 047657 r7... -
Page 8: General Information
general InforMaTIon WarnIng: Chair weight is in excess of 250 pounds. Use Headrest an assistant to safety position the chair. Keyhole REMOVE Slot Backrest COVER Headrest Cushion Guide Backrest Pins Backrest Structure REMOVE COVER afTer THe CHaIr Is PosITIoneD anD leVeleD, REMOVE THE CLEVIS PIN AND LOCK PIN. - Page 9 note: The next two steps apply only to Spirit units with utility centers. For all others, continue with step 8. If the chair is to have a unit mount bracket installed it should be set up at this time. If the unit was purchased as a complete package then the unit mount bracket will be factory installed.
- Page 10 11. Locate the seat cushion rail mounting hardware which is attached to the upper structure. Remove nylon washers, metal washers, and plastic washers. It is not necessary to remove the nylon bushing. 12. Slide one of the chair rails over the nylon bushing.
- Page 11 047657 r7...
-
Page 12: Dental Chair Diagnostic Codes
DenTal CHaIr DIagnosTIC CoDes InPuT sTaTus InPuT sTaTus CorreCTIVe aCTIon DIgIT No input received Examine input device Foot switch button pressed Switch may be stuck Touch pad button pressed Switch maybe stuck Foot switch and touch pad button pressed Multiples switches stuck Chair stopped due to loss of input signal Input device or connection faulty OUTPUT STATUS DIGIT... - Page 13 HYDraulIC ConTrol ValVe Wire #4, back up, TV3 Wire #2, base up, TV1 Wire #5, back down, TV4 Wire #3, base down, TV2 CHaIr sPeeD aDJusTMenTs adjust screws shown to the right: TV2 = Base Down CoMMon TV4 = Backrest Down TV1 = Base Up TV3 = Backrest Up To increase speed, turn adjustment...
-
Page 14: Addendum To 3000 Series Chair Installation Manual
aDDenDuM To 3000 serIes CHaIr InsTallaTIon Manual The 3000 Chair is equipped with a 300 Watt transformer. Optional equipment can be connected to the tranformer. Ensure that correct VAC hookup when installing optional equipment. 300 WaTT TransforMer in 3000 serIes CHaIr 300W Transformer Transformer Black (top) -
Page 15: Installation Checklist
InsTallaTIon CHeCklIsT Verify the following after installation or servicing of the unit: All manuals are present. All labels are present and legible. No mechanical damage on new installations. The chair is connected to the correct power source. The chair is setting on a level surface. All connections are properly attached. - Page 16 Model: 3001 Spirit 3000 Series Dental Chair Model: 3002 USE AND CARE Model: 3003 Model: 3004...
- Page 17 Table of ConTenTs OVERVIEW ..........................................3 gEnERal InfORmatIOn ......................................4 gEnERal InfORmatIOn ......................................5 REgulatORy InfORmatIOn ....................................6 OpERatIOn ..........................................7 OpERatIOn ..........................................8 OpERatIOn ..........................................9 OpERatIOn ..........................................10 OpERatIOn ..........................................11 OpERatIOn ..........................................12 ClEanIng, DIsInfECtIng, & stERIlIzatIOn ..............................13 ClEanIng, DIsInfECtIng, &...
-
Page 18: Overview
oVeRVIeW Quick Release Articulation Headrest Chair Back Articulating Chair Seat & Armrest Toeboard with Scuff Cover Dual Integrated Touch Pad Pump Cover 047655 r10... -
Page 19: General Information
GeneRal InfoRMaTIon PRoduCT dIsPosal Contact your local authorized dealer for proper defInITIon of syMbols disposal of the device to ensure compliance with your local The following symbols and terms are defined as follows: environmental regulations. WaRnInG: Failure to carefully follow the InTeRfeRenCe WITh eleCTRoMedICal deVICes described procedure may result in damage to the To guarantee the operational safety of electromedical... - Page 20 GeneRal InfoRMaTIon safeTy Review the following safety precautions to avoid injury and prevent damage to this equipment. Use this product only as specified. WaRnInG: A dental chair may include WaRnInG: Failure to disinfect equipment magnets in the construction of the device between patients could expose user/patient which may temporarily affect the function/ to cross contamination and bio-burden/bio-...
-
Page 21: Regulatory Information
ReGulaToRy InfoRMaTIon Technical description The dental chair is used to position the patient so that the oral cavity is in the desired position for the dentist to perform various dental procedures. Dental chairs can be either hydraulically or electromechanically operated. There are two dynamic functions: the base (up/down) and the back (incline/recline). -
Page 22: Operation
oPeRaTIon Chair Control The chair can be controlled by the dual integrated touch pads located on the arm supports or the optional foot control. The chair is factory set with pre programmed positions which can be accessed by preset buttons on either controller. - Page 23 oPeRaTIon Programming the auto buttons STORING POSITIONS 1,2,3 & 4 1. Using the manual buttons, adjust the chair into the desired position. 2. Press and hold the unmarked LEARN button, the chair will beep once to confirm. Continue holding the LEARN button, while pressing desired auto ("0", "1", "2", "3") button TWO TIMES.
-
Page 24: Operation
oPeRaTIon Articulating Headrest The articulating headrest can be adjusted by depressing the Quick Release Button and situating the headrest in the desired position. Release the button to lock headrest into place. Quick Release Button WaRnInG: Support the patient's head when adjusting the headrest. -
Page 25: Operation
oPeRaTIon Armrest The armrest is designed to allow the armrest to articulate with the angle of the seat back. The sliding armrest mechanism is activated by lifting the armrest release trigger and sliding the armrest until it reaches the exit position. -
Page 26: Operation
oPeRaTIon eRGosooThe™ MassaGe oPTIon ErgoSoothe™ Massages bladders are located in the backrest cushions. These bladders are air driven and will fluctuate as the massage is in process. To activate the massage functions, flip the switches to “ON” position and flip the switch to “OFF” position to deactivate the massage. -
Page 27: Operation
oPeRaTIon Optional Air / Water Outlets and Electrical Outlet The optional air / water outlets and electrical outlets are conveniently located underneath the seat and are attached to the seat rail. These outlets can accommodate extra auxiliary equipment that is within the user's reach. The outlet is rated at a maximum of 1.5 amp. -
Page 28: Cleaning, Disinfecting & Sterilization
CleanInG, dIsInfeCTInG & sTeRIlIzaTIon Equipment can be cleaned with a solution of mild detergent and warm water. A variety of surface disinfectants are available for use in dental treatment rooms. Some of these can cause discoloration of painted, plated or anodized surfaces with repeated use. - Page 29 CleanInG, dIsInfeCTInG, & sTeRIlIzaTIon Cleaning dental Chair upholstery NOTE: As with all cleaning products, first clean a small inconspicuous area to ensure the material will not discolor or fade. It is recommended that each stain be cleaned in a step by step manner using the sequence below: Regular Cleaning A Solution of %10 household liquid dish soap with warm water applied with a soft damp cloth.
-
Page 30: Emi
MedICal eleCTRICal eQuIPMenT eleCTRoMaGneTIC CoMPaTIbIlITy (InsTRuCTIons foR use) eleCTRoMaGneTIC CoMPaTIbIlITy Electrical medical devices are subject to special EMC safety measurements and as a result the equipment must be installed according to the Pelton and Crane installation instruction manual. PoRTable eleCTRonIC deVICes Portable and mobile high frequency electronic communications equipment may interfere with electronic medical devices. - Page 31 Guidance and manufacturer's declaration-electromagnetic emissions The Model SP3000 intended for use in the electromagnetic environment specified below. The customer or the user of the SP3000 should assure that it is used in such an environment. emissions Test Compliance electromagnetic environment Guidance The SP3000 chairs use RF energy only for its internal function.
- Page 32 Guidance and manufacturer's declaration-electromagnetic immunity The Model SP3000 Dental Chairs are intended for use in the electromagnetic environment specified below. The customer or the user of the SP3000 should assure that it is used in such an environment. IeC60601 electromagnetic Compliance Immunity Test Test level...
- Page 33 Model 3001 Model 3002 SP30 Dental Chair Model 3003 Specifications Model 3004 Model 3301 Model 3302 Model 3303 Model 3304...
- Page 34 1.00 GENERAL 2.00 OPERATION 1.01 The dental treatment chair shall be a functional, 2.01 The chair is hydraulically operated, quiet in operation repositional chair for support of the patient. It shall allow and provides a stable foundation for both the patient maximum accessibility by the doctor or assistant to the and additional dental equipment.
- Page 35 3.00 CONSTRUCTION Power shall enter the chair through a standard 3-prong, 3.01 The Chair shall be of metal construction. grounding-type, male plug. 3.02 The Base Plate shall be made of cast aluminum, with Alternately, the chair may be permanently connected interior ribbing for increased strength.
- Page 36 Technical Dimensional Data (Maximum Range of Motion) 35 5/8” 32” 33 5/8” 23 5/8” Highest Chair Position Highest Chair Position Chair Back Raised Chair Back Lowered 19 3/8” 21 3/4” 17 5/8” 9 5/8” Lowest Chair Position Lowest Chair Position Chair Back Raised Chair Back Lowered 7 1/4”...
