Visonic MC-302 PG2 Installation Instructions

MC-302 PG2
Supervised PowerG Magnetic Contact Device

1. INTRODUCTION

The MCT-302 PG2 is a fully supervised, PowerG magnetic
contact device. The device includes a built-in reed switch (that
opens upon removal of a magnet placed near it). The MC-302 PG
sends the parameters of the specific alarm to the control panel
using PowerG 2-way communications protocol.
The MC-302 PG 2 tamper switch is activated when the cover is
removed.
A periodic supervision message is transmitted automatically. The
control panel is thus informed, at regular intervals, of the unit's
active participation in the system.

2. SPECIFICATIONS

Frequency Band (MHz): Europe: 433, 868, USA: 915
Modulation: GFSK
Antenna: Built-in helical antenna.
Communication Protocol: PowerG.
Alarm Input: One internal.
Supervision: Signaling at 4-min. intervals.
Tamper Alert: Reported when a tamper event occurs.
:
Battery type 3 V Lithium CR-123 type battery, Panasonic or
Sanyo only.
Caution!
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used battery according to manufacturer's instructions.
:
Battery Life Expectancy 8 years (for typical use)
Battery Supervision: Automatic transmission of battery condition
data as part of periodic status report and immediately upon low
battery condition detection.
Operating Temperature: 0°C to 49°C (32°F to 120°F).
Dimensions: 81 x 34 x 25 mm (3-3/16 x 1-1/4 x 1 in.)

3. INSTALLATION

3.1 Mounting (Fig. 3a and 3b)

It is highly recommended to attach the transmitter to the top of the
door/window on the fixed frame and the magnet to the movable
part (door or window). Make sure that the magnet is located not
more than 6 mm (0.25 in.) from the transmitter's marked side.
Note: Once the cover is removed, a tamper message is
transmitted to the receiver. Subsequent removal of the battery
prevents transmission of "TAMPER RESTORE", leaving the
receiver in permanent alert. To avoid this, during the enrolling
process, press the tamper switch while you remove the battery.
Attention! The unit has a back tamper switch (optional) under
the PCB. As long as the PCB is seated firmly within the base, the
switch lever will be pressed against a special break-away base
segment that is loosely connected to the base (Figures 2 and 3a).
Be sure to fasten the break-away segment to the wall. If the
detector unit is forcibly removed from the wall, this segment will
break away from the base, causing the tamper switch to open
D-302412
An LED lights whenever alarm or
tamper events are reported. The
LED does not light while a
supervision message is being
transmitted.
Operating power is obtained from
an on-board 3 V Lithium battery.
When the battery voltage is low, a
"low battery" message is sent to
the receiver.
Weight: 53g (1.9 oz)
Compliance with Standards:
USA: CFR47 part 15 (FCC)
Europe: EN 301 489-3, EN 50130-4:( 95) & A1 : (98) & A2: (03),
EN 300 220-2, EN 60950-1, EN 50130-5, EN 50131-1, CLC/TS
50131-2-6
Canada: RSS 210
This device complies with Part 15 of the FCC Rules and RSS-210
of Industry and Science Canada. Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired
operation.
This device complies with the essential requirements and
provisions of Directive 1999/5/EC of the European Parliament
and of the Council of 9 March 1999 on radio and
telecommunications terminal equipment.
A
F
E
A. Flexible Retainer
B. Break-away base segment (for Back Tamper)
C. P.C. board edge supports
D. Mounting holes
E. Wiring inlet
F. Plastic standoff for case closure screw
.

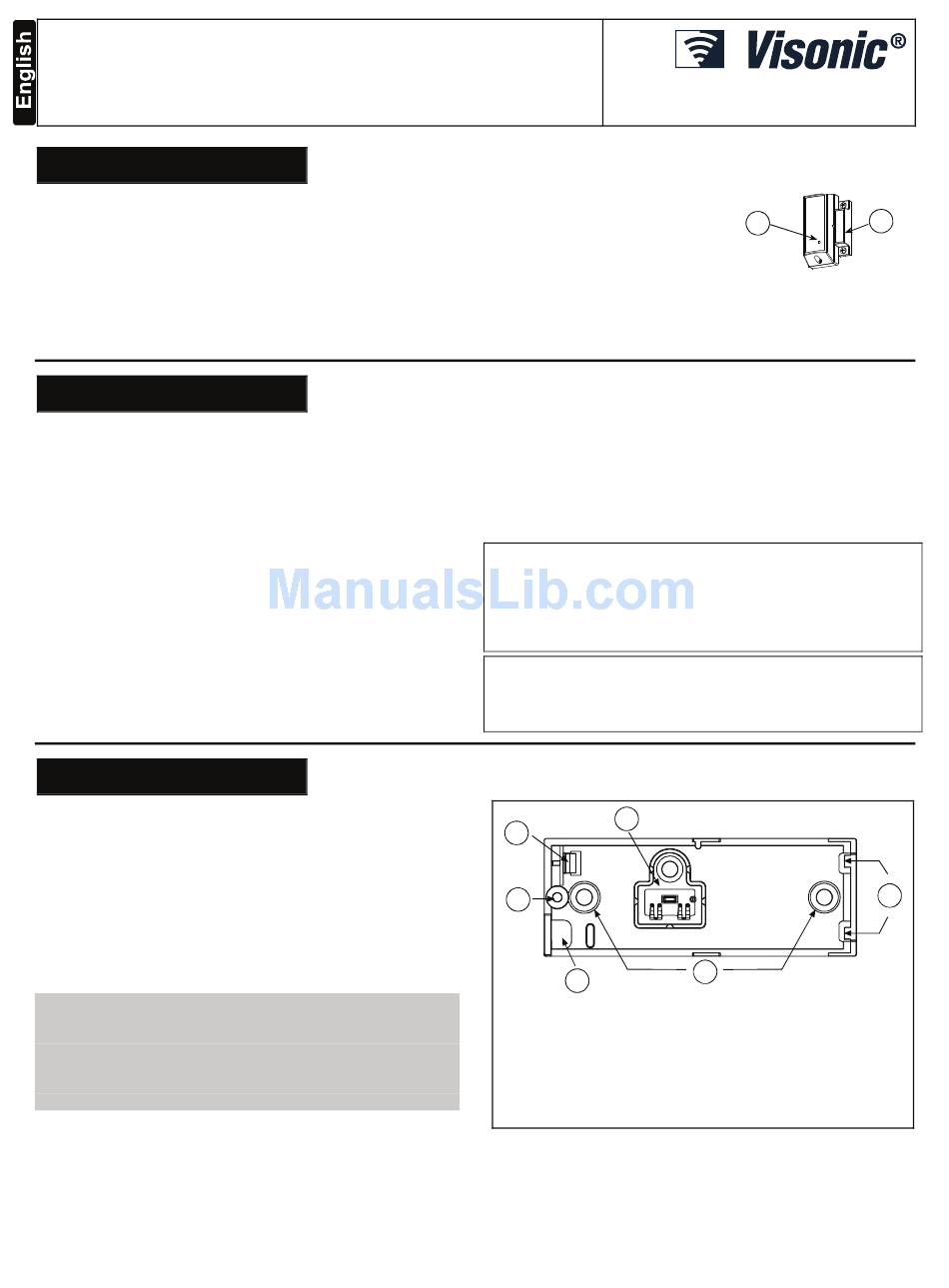

Figure 2. Base with P.C. Board Removed
Installation Instructions
A
A. Transmission LED
B. Magnet
Figure 1:
External View
B
D
B
C
