MCS-720B
Fully Wireless Indoor Siren
1. INTRODUCTION
The MCS-720B is a fully supervised wireless siren, for indoor use, that
communicates with PowerMax Pro or PowerMaxComplete alarm system.
Features
• The siren is activated according to specific commands that are
transmitted from the alarm system (refer to the alarm system
specifications - SIREN SIGNALS).
Note: The siren is activated for a predefined "Bell Time" (refer to
PowerMax Pro / PowerMaxComplete installer guide, par. 4.4),
according to local authorities requirements, or until the system is
disarmed, whichever occurs first.
• Squawk indications when using a keyfob
High, mid or low siren squawk (beep) sound can be used to indicate
arming (1 squawk) and disarming (2 squawks) of the alarm system.
• Flash lights / strobe
When an identified activation command is received from the alarm
system, the strobe light is activated every 1 second (100ms ON,
900ms OFF) for a period of 20 minutes maximum, or until the alarm
system is disarmed whichever occurs first. There is an option to
disable the lights/strobe locally by using an internal jumper.
• Tamper protection
The unit has tamper protection for wall and front cover opening
alarm.
• Low battery voltage alert
When the battery voltage is low, low battery message is sent to the
alarm system. After the low voltage message delivery, at least 2
siren alarms are possible before the siren is totally inactive.
• 2-way full supervision
The siren is a fully supervised, 2-way communication device. It
includes a receiver, to receive activation commands from the alarm
system, and a transmitter, to periodically transmit its status signal
to the alarm system.
2. SPECIFICATIONS
Siren Type: At least 85 dBA at 10 ft (3 m), 1.8-3.5 kHz, sweep frequency
7Hz.
Battery: Four 3.6V/3.5A/H Lithium independent cells (EVE ER18505M)
assembled in two plastic wrappings and connected to the cable adaptor
(see Figure 4). Visonic assembly catalog no. 103-304742.
Battery life expectancy: 3 years (for typical use)
Low Battery Threshold: 2 V +300 mV negative slope OR 1.2 V
Quiescent Current Consumption: 58 µA
Peak Current Consumption: 500 mA
Operating Frequency (MHz): 315, 433.92, 868.95, or other frequency
according to the requirement in the country of use.
Receiver and Transmitter ID Type: 24-bit
Flash Lights Duration: 100ms ON, 900ms OFF
3. INSTALLATION, TESTING AND ENROLLING
3.1 Installation
D-305643 MCS-720B Installation Instructions
The transmitted signal strength can
be measured during the installation
(refer
to
the
PowerMaxComplete Installer Guide,
paragraph 5.2 – Diagnostic Test).
• Self-test feature
The siren can be tested locally (by using the SELF-TEST switch) or
remotely (from the control panel), upon batteries insertion, prior to
the actual wall installation.
Remote commander
Door or window
open/close detector
Wireless transmitter
Smoke detector
Motion detector
Hard wired detector
Figure 2 - Integration with the Alarm System.
Dimensions (LxWxD): 161x161x50mm (6-7/16 x 6-7/16 x 1-3/4 in)
Weight (with battery): 470g (16.5 oz.)
Color: White
Operating Temperature: -10°C to 60°C (-14°F to 140°F)
Compliance with Standards:
Europe : EN 50130-4, EN 50130-5, EN 50131-4 Type W
Grade 2, Class II
USA: (FCC) CFR 47part 15, IC: RSS 210
Certified by Applica T&C.
The MCS-720B is compatible with the RTTE requirements - Directive
1999/5/EC of the European Parliament and of the Council of 9 March
1999.
Figure 3 - Installation
Installation Instructions
PowerMax
Pro
/

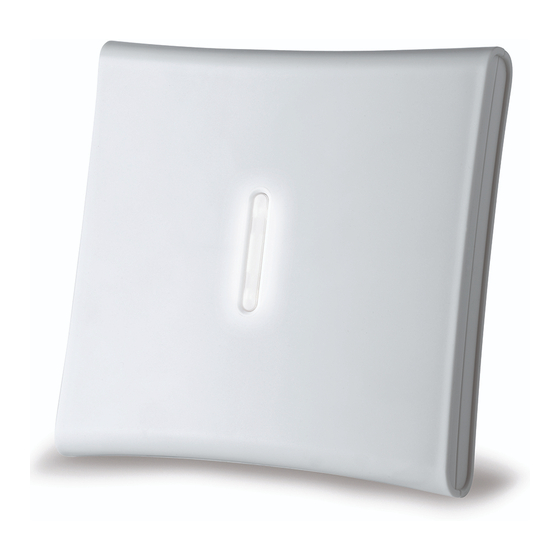

Figure 1 - MCS-720B
PowerMaxPro /
PowerMaxComplete
MCS-720B
. Security
1
