- Page 1 ALi60/ALi90 Manual 1.1 en...
- Page 2 General information ALi60/ALi90 Manual Version: 1.1 en, 10/2019, D2745.EN .01 Copyright © 2019 by d&b audiotechnik GmbH & Co. KG; all rights reserved. Keep this document with the product or in a safe place so that it is available for future reference.
-
Page 3: Table Of Contents
2.1 Product description..............5 2.2 Connections................6 2.3 Operation..................7 2.3.1 Controller settings..............9 2.4 Dispersion characteristics............10 2.5 Technical specifications............11 Manufacturer's declarations......... 13 3.1 EU conformity of loudspeakers (CE symbol)......13 3.1.1 WEEE Declaration (Disposal)..........13 d&b ALi60/ALi90 Manual 1.1 en... -
Page 4: Safety Precautions
Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b ALi60/ALi90 Manual 1.1 en... -

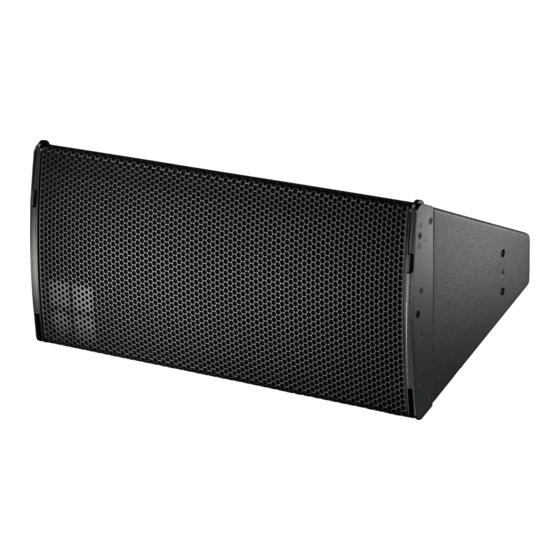

Page 5: Ali60/Ali90 Loudspeaker
60° or 90° constant directivity dispersion pattern in the horizontal plane. ALi60 and ALi90 can also be deployed as a horizontal cluster of maximum four cabinets using the d&b Z5456 AL Flying adapter. The d&b Z5458 AL Base plate allows ground stack setups of up to three TOP cabinets, either as pure TOP ground stacks or placed on top of applicable d&b subwoofers, such as the Vi-SUB or Vi-GSUB. -
Page 6: Connections
The cabinets are mechanically supported by metal brackets which are specifically designed for the respective application. ▪ Sea water resistant (SWR): This option is suitable for outdoor use, especially in wet and acid or salty environments. d&b ALi60/ALi90 Manual 1.1 en... -
Page 7: Operation
Applicable d&b amplifiers: 30D/D20/D80. Amplifier output mode(s): Dual Channel Application Setup Cabinets per channel ALi60 AL60 PS AL60 Out AL60 In AL60 AP ALi90 AL90 PS AL90 Out AL90 In AL90 AP d&b ALi60/ALi90 Manual 1.1 en... - Page 8 In setup is used for the inner one or two cabinets. Two loudspeakers of the same type (ALi60 or ALi90) can be linked and then be driven by one amplifier channel. Note: For mixed arrays consisting of ALi60 and ALi90 cabinets, observe the dedicated setup for each loudspeaker type and the required wiring Þ...
-
Page 9: Controller Settings
HFC functions are available for acoustic adjustment. CUT mode Set to CUT, a high pass filter with a 95 Hz cut off frequency is inserted in the controller signal path. The ALi60/ALi90 are now configured for use with actively driven d&b Vi-SUB or Vi-GSUB subwoofers. -
Page 10: Dispersion Characteristics
The graphs below show the horizontal and vertical dispersion angles over frequency plotted using lines of equal sound pressure (isobars) at –6 dB and –12 dB. The nominal horizontal dispersion is maintained down to 550 Hz (ALi60)/370 Hz (ALi90). ALi60 horizontal setup... -
Page 11: Technical Specifications
Loudspeaker data Nominal impedance 8 ohms Power handling capacity (RMS/peak 10 ms) 400/1800 W Nominal dispersion angle (h x v - horizontal setup) ALi60 60° x 30° Nominal dispersion angle (h x v - horizontal setup) ALi90 90° x 30° Components 2 x 10"... - Page 12 ALi60/ALi90 cabinet dimensions in mm [inch] d&b ALi60/ALi90 Manual 1.1 en...
-
Page 13: Manufacturer's Declarations
Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. d&b ALi60/ALi90 Manual 1.1 en... - Page 14 www.dbaudio.com...
