Playing From A Line-Level Source - Arcam RCUBE Manual

1
Connect the line level source to AUX-in
Line level sources (e.g. a CD player or
preamplifier output) typically have RCA phono
connectors (pictured at right) and they do not
usually have any volume control. To connect
a line level source you will need a cable that
has dual (left and right) RCA phono male
connectors on one end and 3.5mm stereo
mini-jack on the other. If there is a volume
control on the source set it to 90%. Make this
connection with the unit switched off.
2
Power up
Plug one end of the power supply into the AC
mains wall supply and the other into the DC power input
jack on the rear panel of the rCube. Switch the rCube on
by pressing its power rocker switch on the rear panel, the
front LED will glow red (standby mode). Press the standby
button on the top panel or on the remote. The power LED
will change from red to blue and the rCube is now on.
3
Select AUX-in as the source
Press the 'Source Select' button on the remote control or
press the source button on the top panel until the source
LED turns red. Red indicates AUX is chosen as the source.
4
Make sure the external source is playing
Use the controls on the line-level source to start playback
and verify the device is playing.
5
Adjust volume
Use the + and - volume buttons on the remote or on the
top panel to adjust the volume to desired level.

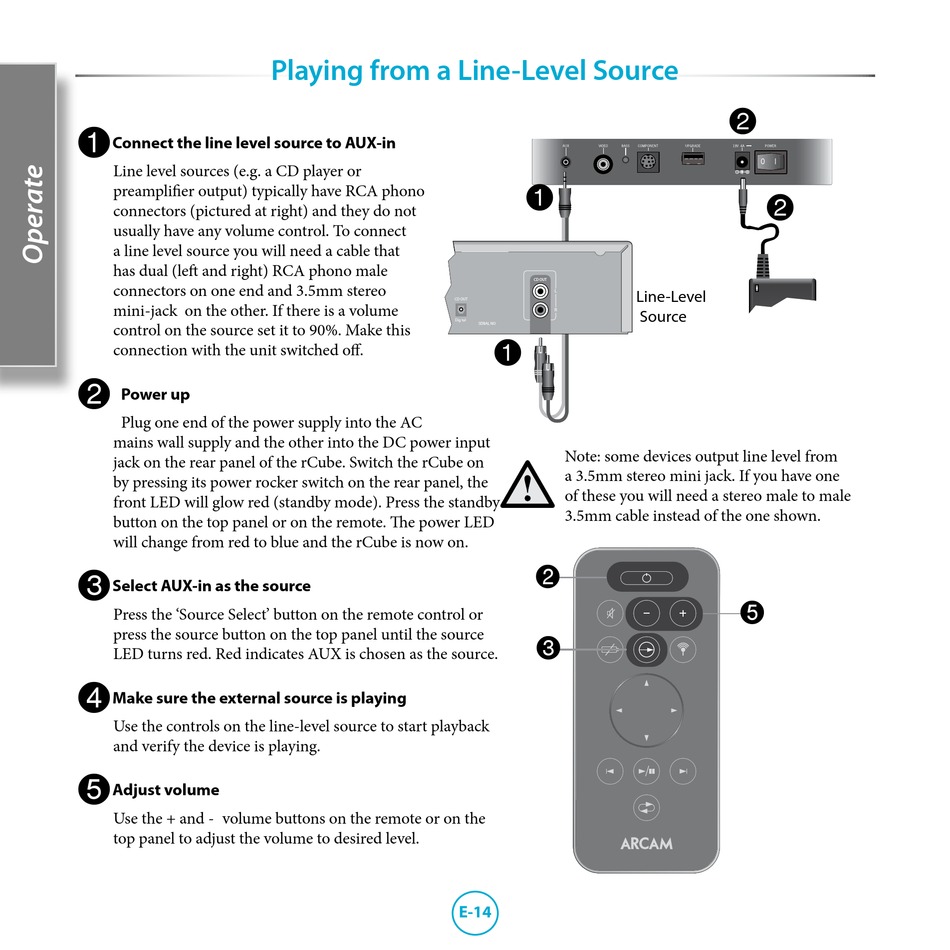

Playing from a Line-Level Source

1
CD OUT
L L
CD OUT
R
Dig tal
SERIAL NO SERIAL NO
1
Note: some devices output line level from
a 3.5mm stereo mini jack. If you have one
of these you will need a stereo male to male
3.5mm cable instead of the one shown.


