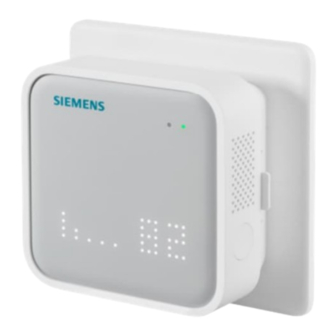

- Page 1 QNA2..D Indoor air quality multi-sensor Mounting A6V13562246_en--_c Smart Infrastructure 2023-05-16...
-
Page 2: Table Of Contents
Table of Contents Mounting and installation ........................3 Drywall mounting .............................6 Conduit box mounting ..........................9 Surface mounting ........................... 12 Notes ..............................14 Safety ..............................14 Disposal ..............................14 Dimensions ............................15 2 | 16 A6V13562246_en--_c... -
Page 3: Mounting And Installation
Mounting and installation Drywall mounting 1 Mounting and installation For technical data, see Data sheet. For configuration, see Commissioning. Note Check the package to ensure that it includes all inbox items Product Package item Name QNA2700D.BA2 ● Sensor module BACnet MSTP ●... - Page 4 Mounting and installation Drywall mounting NOTICE ● Commission and setup the device prior to mounting. ● To power on the sensor module, connect it to a surface mount powered by USB type C, PoE, or AC/DC 12...24 V. Mounting location ●...
- Page 5 Mounting and installation Drywall mounting Select data mode ● With the inside (concave surface) facing you ensure that the mode selection switch points to 1 (LoRaWAN). For configuration of BACnet, see Commissioning. Preparing data connection Set up your LoRaWAN gateway router prior to installation and on-boarding if LoRaWAN is used ●...
-
Page 6: Drywall Mounting
Mounting and installation Drywall mounting 1.1 Drywall mounting 6 | 16 A6V13562246_en--_c... - Page 7 Mounting and installation Drywall mounting A6V13562246_en--_c 7 | 16...
- Page 8 Mounting and installation Drywall mounting 8 | 16 A6V13562246_en--_c...
-
Page 9: Conduit Box Mounting
Mounting and installation Conduit box mounting 1.2 Conduit box mounting A6V13562246_en--_c 9 | 16... - Page 10 Mounting and installation Conduit box mounting 10 | 16 A6V13562246_en--_c...
- Page 11 Mounting and installation Conduit box mounting A6V13562246_en--_c 11 | 16...
-
Page 12: Surface Mounting
Mounting and installation Surface mounting 1.3 Surface mounting 12 | 16 A6V13562246_en--_c... - Page 13 Mounting and installation Surface mounting A6V13562246_en--_c 13 | 16...
-
Page 14: Notes
Delete all personal data and dispose of the item(s) at separate collection and recycling facilities in accordance with local and national legislation. For additional details, refer to Siemens information on disposal. 14 | 16 A6V13562246_en--_c... -
Page 15: Dimensions
Dimensions 3 Dimensions Dimensions in mm A6V13562246_en--_c 15 | 16... - Page 16 Issued by Siemens Switzerland Ltd Smart Infrastructure Global Headquarters Theilerstrasse 1a CH-6300 Zug +41 58 724 2424 www.siemens.com/buildingtechnologies © Siemens Switzerland Ltd, 2022 Technical specifications and availability subject to change without notice. A6V13562246_en--_c...
