MCOHome MH7H-EH User Manual

Water /Electrical Heating Thermostat

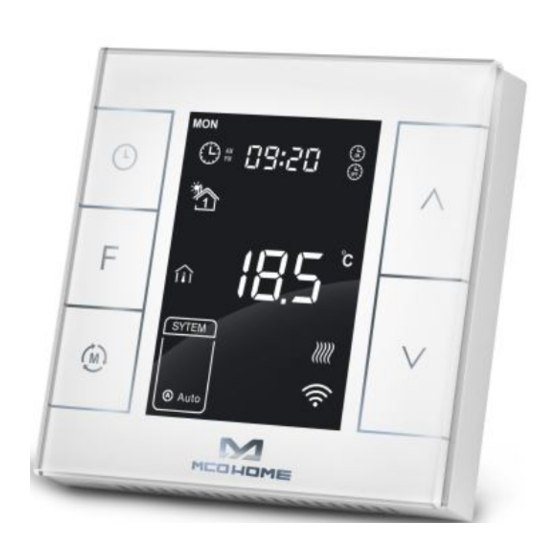

MCOHome Water / Electrical Heating Thermostat is a Z-Wave Plus enabled device for
indoor temperature control. MH7H-WH is mainly applied to control wall mounted boiler, water
valve/pump etc. , while MH7H-EH is for electrical heating system. The device is of high
reliability and practicability, which can be included and operated in any Z-Wave network with
other Z-Wave certified devices from any other manufacturers. All non-battery operated nodes
within the network will act as repeaters regardless of vendor to increase reliability of the network.
Features：

Capacitive touch buttons

Tempered glass panel, PC alloy enclosure

Precise temperature calibration function

Attractive appearance

Clear display, easy to operate

Power Supply：AC85-260V, 50/60HZ

Output: MH7H-WH ≤5A ; MH7H-EH≤ 16A

Self Consumption：≤1W

External Temp. Sensor(optional): NTC R25℃=15KΩ B25℃/50℃=3550K

Working Environment：0-50

Temperature Setting：5-37

Dimension：86* 86*15mm

Hole Pitch：60-61mm
To protect yourself and others from danger and to protect the device from damage, please read the
safety information before using it.
Important!

A qualified electrician with the understanding of wiring diagrams and knowledge of electrical
safety should complete installation following the instructions.

Before installation, please confirm the real voltage complying with the device's specification.
Cut off any power supply to secure the safety of people and device.

During installation, protect the device from any physical damage by dropping or bumping. If
happens, please contact the supplier for maintenance.

Keep the device away from acid-base and other corrosive solids, liquids, gases, to avoid
damage.

Avoid overexertion during operation, to protect device from mechanical damage.

Read all instructions and documentation and save for future reference.
MCOHome Technology Co., Ltd
www.mcohome.com
MH7H-WH / MH7H-EH

Introduction

Specification
℃
; 0-90% RH（Non-condensation)
（Adjustable）
℃（41-99℉）

Safety Information

1
User Manual
