MH-F500 Thermostat User Guidance
的
Introduction

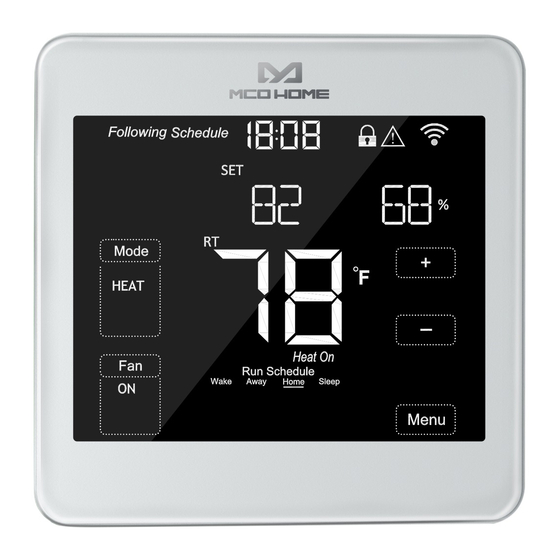

MH-F500 thermostat is used to control up to 3 stages heating
and 2 stages cooling system with 8 types control system, EM
heat activation, adjustable compressor delay time and O/B
changeover. It is with tempered touch sensitive screen, quick
connecting terminals to save installer's time. 7days
programmable and four modes everyday make users' life
convenient and comfortable.

Power Supply: AC24V
 Resistive Load:＜1A
 Self-Consumption: <2w

Thermistor: NTC thermistor
 Temp. Setting Range：10-35℃(50~95℉)
 Precision：0.1℃(1℉)
 Outcase：Tempered glass + PC
 Dimension：102*102*20mm
 Installation：60mm or 82mm hole pitch
 Active Element: Relay switch μ
 Maximum Transmitting Power: +3dBm
 Z-Wave Frequency: Operating frequency range, defined by the regulatory bodies (for Z-wave in Europe: 868.0
868.6 MHz, 869.7 - 870.0 MHz)

Over Current Protection: Required external 10A circuit breaker
 Application range: gas/fuel boiler, electric heating, water heating, heat pump etc. 8 types control systems.
 4.3'' LCM display, touch screen operation interaction.
 Simpler way to connect wires without screw driver.
 7days 4 time periods scheduling. Set the target heating and cooling temperature respectively.
 Schedule, hold modes for different situations.
 Declaration of Conformity
Technical Parameters
Features
