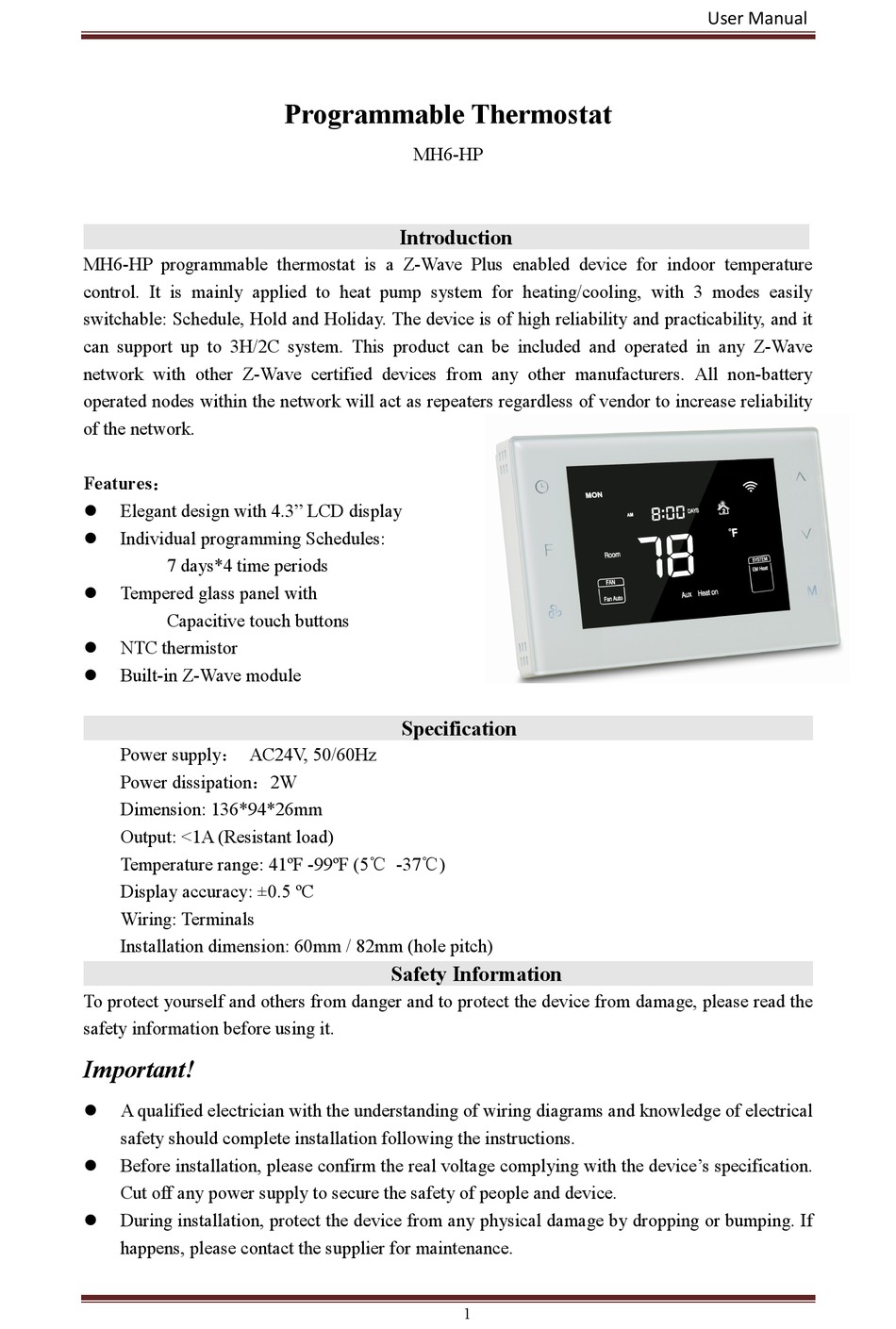

MH6-HP programmable thermostat is a Z-Wave Plus enabled device for indoor temperature
control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily
switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability, and it
can support up to 3H/2C system. This product can be included and operated in any Z-Wave
network with other Z-Wave certified devices from any other manufacturers. All non-battery
operated nodes within the network will act as repeaters regardless of vendor to increase reliability
of the network.
Features：
Elegant design with 4.3" LCD display
Individual programming Schedules:
7 days*4 time periods
Tempered glass panel with
Capacitive touch buttons
NTC thermistor
Built-in Z-Wave module
Power supply： AC24V, 50/60Hz
Power dissipation：2W
Dimension: 136*94*26mm
Output: <1A (Resistant load)
Temperature range: 41ºF -99ºF (5℃ -37℃)
Display accuracy: ±0.5 ºC
Wiring: Terminals
Installation dimension: 60mm / 82mm (hole pitch)
To protect yourself and others from danger and to protect the device from damage, please read the
safety information before using it.
Important!
A qualified electrician with the understanding of wiring diagrams and knowledge of electrical
safety should complete installation following the instructions.
Before installation, please confirm the real voltage complying with the device's specification.
Cut off any power supply to secure the safety of people and device.
During installation, protect the device from any physical damage by dropping or bumping. If
happens, please contact the supplier for maintenance.
Programmable Thermostat
MH6-HP
Introduction
Specification
Safety Information
1
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MCOHome MH6-HP
Summary of Contents for MCOHome MH6-HP
-
Page 1: Programmable Thermostat
MH6-HP Introduction MH6-HP programmable thermostat is a Z-Wave Plus enabled device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability, and it can support up to 3H/2C system. -
Page 2: Installation And Wiring
User Manual Keep the device away from acid-base and other corrosive solids, liquids, gases, to avoid damage. Avoid overexertion during operation, to protect device from mechanical damage. Read all instructions and documentation and save for future reference. Installation &... -
Page 3: Display And Buttons
User Manual Wiring Terminals Terminals Explanation Remark Cooling power (two transformers) Joined with R by jumper (one transformer) Heating power (two transformers) Joined with RC by jumper (one transformer) W (O/B) Heat output Changeover valve output (heat pump) Cool output Compressor output (heat pump) Fan output 24VAC common... -
Page 4: Operation
User Manual Operation ℃ ℉ Temperature format( In normal display interface, press F button synchronically for at least 3 sec to switch & between ℃ and ℉. （Not available in Hold or Hold Until Mode.） Local time setting Press & hold for 3 sec to enter into the interface for local time setting. - Page 5 User Manual Room temp.≤Setting temp.-2℃, “Heat on”& “AUX” display and 2 stage heating system is on; (not available for 1 stage heat system) Room temp.≥Setting temp., heating system stops and “Heat on” disappears from screen. heat stops and “AUX” disappears when temp. difference is less than 1 ℃ . Note: 2 ...
- Page 6 User Manual Schedule Any icon from stands for one time period, and there are 4 periods can be set in one day. Under the time setting mode, press to enter into time setting interface, the time parameter switch among 7 days → 5+2 days → of cooling or heating mode can be set.
- Page 7 User Manual “Hold Until” & “ ” display and temperature value flashing. Press change the value, and press F to save the setting. Then days value flashing, users can choose from 1-365 days by pressing Press can set system state; ...
-
Page 8: Year Limited Warranty
MCOHome warrants this product to be free from defects in material and workmanship under normal and proper use for one year from purchase date of the original purchaser. MCOHome will, at its option, either repair or replace any part of its products that prove defective by reason of improper workmanship or materials. -
Page 9: Secret Menu
User Manual Secret Menu In Schedule Mode, long press and synchronically can enter into secret menu, and the code is 5138. Press can change the setting, and press can save and switch to the following item. Table 1 Item Explain Range Default Remark...
