MCOHome MH4-US User Manual

Electrical Heating Thermostat

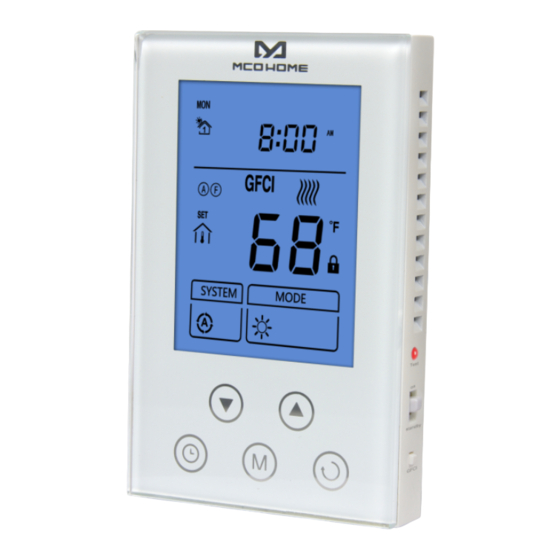

MH4-US is a Z-Wave enabled device for indoor temperature control. It is mainly applied to
control electrical heating systems, such as heating film, heating cable, heater, etc. With the floor
over-heating protection and GFCI (Ground Fault Circuit Interrupter) function, this device works
as a reliable indoor temperature controller. Besides its stable performance, the unique design is
also an attractive feature for end users. Moreover, a built-in Z-Wave module makes it a smart
device which can be operated in any Z-Wave network with other Z-Wave certified devices .
Features：

Tempered glass panel with capacitive touch buttons

With two sensors to detect indoor& floor temperature

Floor overheating protection

GFCI(leakage protection): level 5mA

Multi-working modes to meet various user needs:

Time Period(Schedule) Mode

Comfort Mode

Energy-saving Mode

Vacation Mode

Programmable schedule: 4 periods each day of 7 days; 5+2; 5+1+1

Power supply: AC120V/AC240V, 60Hz

Max output: 1800W at 120AC ; 3600W at 240AC

Self-consumption: <2W
Temp. format: ℃ /℉ ; Time format: 12h / 24h


Z-Wave frequency: 908.42MHz

Panel dimension: 76*120*20mm
Vertical installation：hole pitch 82mm （American 120 box ）

To protect yourself and others from danger and to protect the device from damage, please read the
safety information before using it.
Important!

A qualified electrician with the understanding of wiring diagrams and knowledge of electrical
safety should complete installation following the instructions.

Before installation, please confirm the real voltage complying with the device's specification.
Cut off any power supply to secure the safety of people and device.
MCOHome Technology Co., Ltd
www.mcohome.com
MH4-US
Introduction
Specification
Safety Information
1
User Manual
