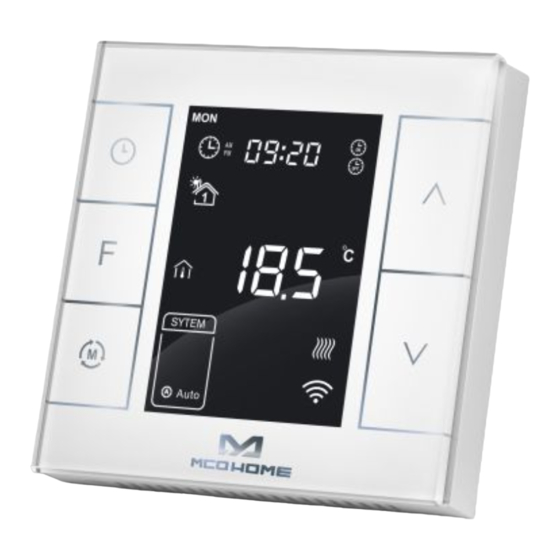

Water /Electrical Heating Thermostat
MCOHome Water / Electrical Heating Thermostat is a Z-Wave enabled device for indoor
temperature control. MH7-WH-EU is mainly applied to control wall mounted boiler, water
valve/pump etc. , while MH7-EH-EU for electrical heating system. The device is of high
reliability and practicability. And can be included and operated in any Z-Wave network with other
Z-Wave certified devices from any other manufacturers.
Features：
Capacitive touch buttons
Tempered glass panel, PC alloy enclosure
Precise temperature calibration function
Attractive appearance
Clear display, easy to operate
Power Supply：AC220V±10﹪, 50/60HZ
Output: MH7-WH-EU ≤5A ; MH7-EH-EU≤ 16A
Self Consumption：≤1W
Internal Temp. Sensor: NTC 15K
External Temp. Sensor(optional): NTC R25℃=15KΩ B25℃/50℃=3550K
Working Environment：0-50
Temperature Setting：5-37
Dimension：86* 86*43mm
Hole Pitch：60-61mm
To protect yourself and others from danger and to protect the device from damage, please read the
safety information before using it.
Important!
A qualified electrician with the understanding of wiring diagrams and knowledge of electrical
safety should complete installation following the instructions.
Before installation, please confirm the real voltage complying with the device's specification.
Cut off any power supply to secure the safety of people and device.
During installation, protect the device from any physical damage by dropping or bumping. If
happens, please contact the supplier for maintenance.
MCOHome Technology Co., Ltd 2014
www.mcohome.com
MH7-WH-EU / MH7-EH-EU
Introduction
Specification
; <90% RH（Non-condensation)
℃
（Adjustable）
℃（41-98℉）
Safety Information
1
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MCOHome MH7-EH-EU
Summary of Contents for MCOHome MH7-EH-EU
- Page 1 MH7-WH-EU is mainly applied to control wall mounted boiler, water valve/pump etc. , while MH7-EH-EU for electrical heating system. The device is of high reliability and practicability. And can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers.
- Page 2 Step 4: Confirm the device is well mounted, power on and it is ready to operate. (1) Wall-boiler (2) Normal close valve (3) Electrical heating Button & Display MCOHome Technology Co., Ltd 2014...
- Page 3 . Press S4 or S5 to ℃（41-98℉） change value, then press S3 or wait 8 seconds without any key operation will return to normal operation interface. Vacation mode icon displays, and device will follow the setting. MCOHome Technology Co., Ltd 2014...
- Page 4 ℃ ℃ ℃ ℃ High temperature protection (MH7-EH-EU ONLY) If indoor temperature detected by temperature sensor ≥ 55 ℃ , device will open high temperature protection, electric heating will be forced off, and high temperature protection icon displays. If indoor temperature detected by temperature sensor ＜ 50 ℃ , device will end high temperature protection and return to normal work, high temperature protection icon disappears.
- Page 5 MCOHome warrants this product to be free from defects in material and workmanship under normal and proper use for one year from purchase date of the original purchaser. MCOHome will, at its option, either repair or replace any part of its products that prove defective by reason of improper workmanship or materials.
- Page 6 0 indicates device will be in shutdown state (“OFF”) when power on again; 1 indicates device will be in working interface when power on again; 2 (default) indicates device will stay the status before power failure when power on again. MCOHome Technology Co., Ltd 2014...
