Page 1

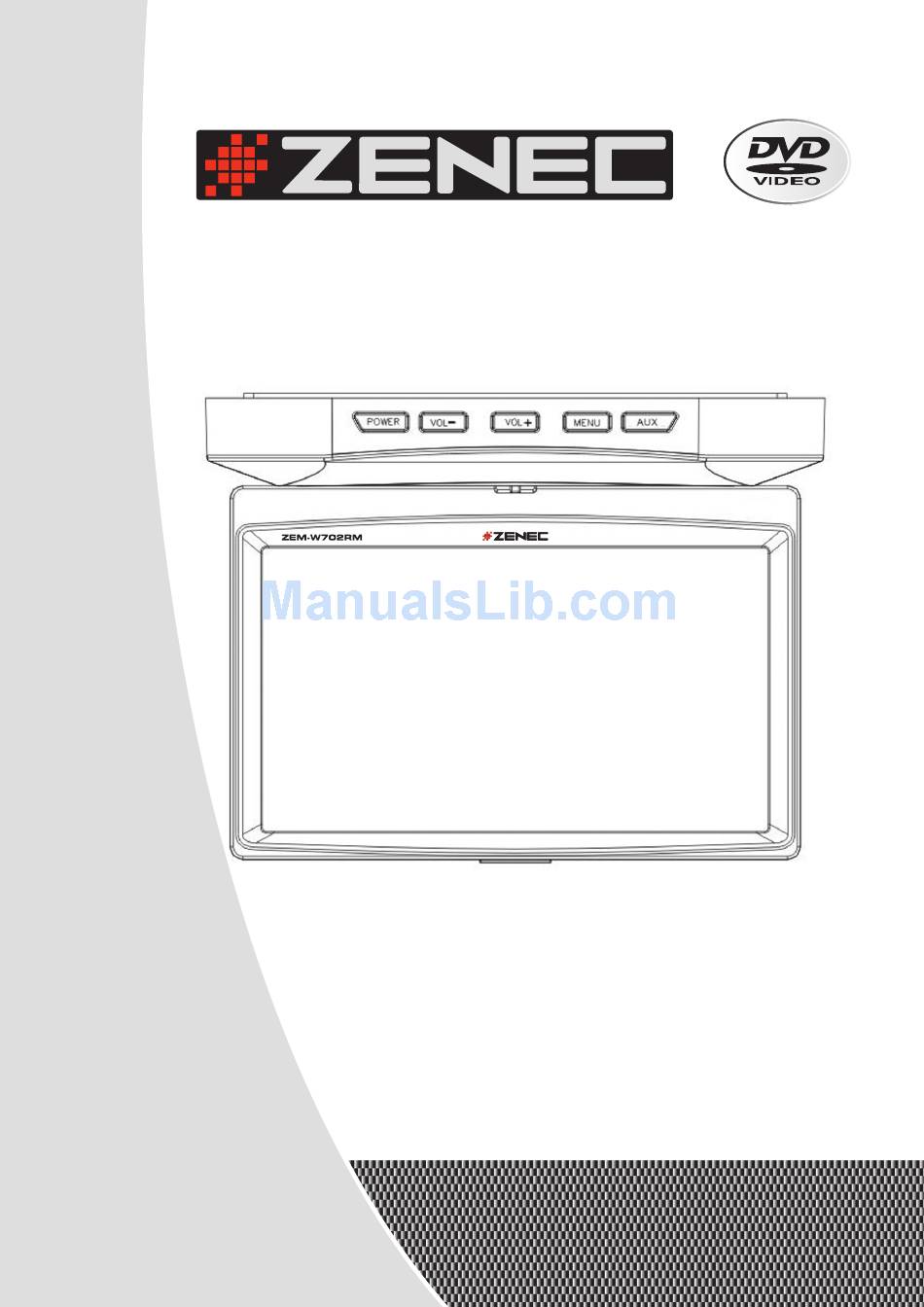

7“ WIDESCREEN TFT-LCD ACTIVE MATRIX ROOF MOUNT MONITOR MODEL NO: ZEM-W702RM INSTRUCTION MANUAL...
Page 2
Produktes nutzen können. Lesen Sie sich vor allem die Garantiebestimmungen genau durch, um im Falle eines Defektes den optimalen Service und Kundendienst nutzen zu können. Sollten Sie dennoch Fragen haben, wenden Sie sich bitte an Ihren ZENEC – Händler oder den jewei- ligen Landesvertrieb.
Page 3
Verwendung: Der ZEM-W702RM kann mit allen Videoquellen kombiniert werden welche über einen Composite – Videoausgang (Cinch) verfügen. Dazu zählen alle handelsüblichen DVD – Abspielgeräte, VCR – Geräte und TV – Tuner. LIEFERUMFANG ■ ZEM-W702RM Deckenmonitor ■ AV - Interface mit Audio/Video - und Stromanschlüssen ■...
Page 4
INSTALLATION DES DECKENMONITORS Kopfhörer Kopfhörer Rot – Audio IN R (AUX 1) Weiß – Audio IN L (AUX 1) Gelb – Video IN (AUX 1) Rot – Audio IN R (AUX 2) Weiß – Audio IN L (AUX 2) Weiß Gelb Audio Audio...
Page 5
Auf der Rückseite des Gehäuses befinden sich zum Anschluss von weiteren externen Geräten noch folgende Anschlüsse: Kopfhörerausgänge (EAR PHONE 1 und 2) ■ Kopfhörer 1 und Kopfhörer 2: Anschlussmöglichkeit für kabelgebundene Kopfhörer. A/V – Eingang ■ AUX3 – Input: 3.5mm Klinkenbuchse zum Anschluss einer externen A/V – Quelle. Ein entsprechendes Kabel liegt dem Gerät bei.
6. IR - Sensor ● An der vorderen Seite des Gehäuses befindet sich IR – Sensoren welche die Befehle der Fernbedienung empfangen und Infrarotsignale für einen IR – Kopfhörer aussenden. 7. Schiebeschalter für die Beleuchtung ● Sie haben drei Möglichkeiten die integrierte Beleuchtung zu bedienen: ➝...
1. POWER – Taste ● Drücken Sie die POWER – Taste um das Gerät einzuschalten. ● Halten Sie die POWER – Taste etwas länger gedrückt um das Gerät wieder auszuschalten. ● Drücken Sie während des Betriebes kurz die POWER – Taste um zwischen AUX1 und AUX2 zu wählen.
Page 8
4. Einstellungen ● Helligkeit (BRIGHT) Wählen Sie den Menüpunkt “BRIGHT“ aus um die Helligkeit zu verändern (-16 bis +16). ● Farbe (COLOR) Wählen Sie den Menüpunkt “COLOR“ aus um die Farbe zu verändern (-16 bis +16). ● Kontrast (CONT) Wählen Sie den Menüpunkt “CONT“ aus um den Kontrast zu verändern (-16 bis +16). ●...
Page 9
- Bitte beachten ● Der Winkel des aufgeklappten Bildschirms darf die 105° Grenze nicht überschreiten, da das Gerät ansonsten mechanisch beschädigt wird. 4. Bringen Sie den Bildschirm manuell in die gewünschte Position. - Bitte beachten ● Der seitliche Winkel des Bildschirms darf die 25° Grenze nicht überschreiten, da das Gerät ansonsten mechanisch beschädigt wird.
Please read this manual carefully, before attempting the installation and retain this manual and your purchasing / installation receipts for future reference. Should your ZENEC product require warranty service, please return it to the retailer from whom it was purchased, or the distributor in your country.
BOX CONTENTS ■ ZEM-W702RM overhead flip down TFT-LCD monitor ■ AV extension cord with multiconnector for power supply and AV inputs ■ Wire harness with 3.5mm jack ➝ RCA ■ Mounting accessories ■ IR – remote control SAFETY RECOMMENDATIONS ■ OPERATING TEMPERATURE Never expose the monitor to extreme heat or direct sunlight.
INSTALLATION The ZENEC ZEM-702RM comes with an external cable harness with the following in- and outputs: Power Supply: ■ Yellow: +12V (Battery) ■ Red: +12V (ACC) ■ Black: Grounding (GND) A/V – Inputs: ■ AUX1 – Input: Connection available for external A/V – source...
There are several connections for external A/V – sources and headphones on the back- side of the housing: Earphone 1 and 2 ■ Connections for normal external headphones. A/V – Input ■ AUX3 – input: 3.5mm connector socket to connect other external components. BASIC OPERATIONS 1.
7. Dome Lights switch ● You can choose between three different modes of operation: ➝ The dome lights remain on. ➝ The dome lights remain off. DOOR ➝ The dome lights will turn on and off depending on the vehicle’s doors. i.e. they switch on or off in parallel with the interior lighting.
1. POWER button ● Press the POWER button to turn on the unit. ● Press and hold the POWER button to turn off the unit. ● Press the POWER button to alternate between AUX1 and AUX2 signals. 2. CH+ button ●...
4. Settings ● Bright To adjust the brightness of the picture (-16 to +16). ● Color To adjust the color saturation of the picture (-16 to +16). ● Tint To adjust the tint of the color (-16 to +16). TINT is only available for NTSC video streams. ●...
Page 17
- Warning ● The screen can extend to a maximum angle of 105°. Further assertion of pressure beyond this position may damage the housing. 4. Adjust the angle (left and right) as shown below: - Warning ● The left and right position can extend to a maximum angle of 25°. Further assertion of pres- sure beyond this position may damage the housing.
Page 18
SPECIFICATIONS POWER REQUIREMENT: Supply Voltage: 12V DC (10V – 15.6V) Current Consumption: 1A (Maximum) Standby: Under 1mA (ACC off) DISPLAY SCREEN: Monitor Size: 7” (16:9 wide) Resolution: 336.960 Pixels Video System: PAL, NTSC Brightness: 500cd/m² Video Input: Composite Video Signal – 1V P-P (75 ohms) Audio Input: 1.5V RMS (Maximum) IR –...
2 YEARS LIMITED WARRANTY Dear customer Thank you for purchasing this ZENEC product. It is advisable to keep the original packing material for any future transporting of the product. Should your ZENEC product require warranty service, please return it to the retailer from whom it was purchased or the distributor in your country.
Page 20
WARRANTY / GARANTIE ZENEC Model: ZEM-W702RM Serial Number: ..........................Date of Purchase: ......................... Your name: ........................... Your address: ..........................City: .............................. State: ........ZIP or Postal Code ................ Country: ............................Dealer’s address & stamp...
