DESCRIPTION

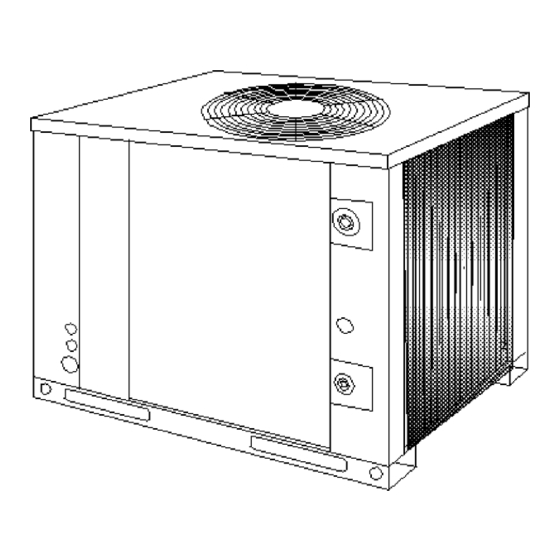

These Sunline 2000 units are completely assembled, piped
and wired at the factory to provide one-piece shipment and
rigging. Each unit is pressurized with a holding charge of
refrigerant-22 for storage and/or shipping.
The compact design, clean styling, low silhouette, and quiet
operation make these condensing units suitable for almost any
outdoor location. On rooftops . . . because they weigh much
less than a single package unit of similar capacity and are much
easier to rig and support. At ground level . . . because their
ample sub-cooling capacity allows them to be located 60 feet
below the evaporator coil.
All sheet metal parts are constructed of commercial grade
(G90) galvanized steel. After fabrication, each part is
thoroughly cleaned to remove any grease or dirt from its
surfaces. The external parts are coated with a ''desert sand''
powder paint to assure a quality finish for many years. This UL
approved coating system has passed the 750 hour, 20% salt
spray test per ASTM Standard B117.
All models include a 1-year limited warranty on the complete
unit. The compressor carries an additional 4-year warranty.
A complete line of Evaporator Blower units is also offered to
meet your precise capacity and air handling requirements.
Refer to Form 550.23-TG4Y for more information on this air
side equipment.
FEATURES
•
Condenser coil constructed of copper tubes and
aluminum fins for durability and long lasting efficient
operation.
SPLIT-SYSTEM
AIR-COOLED

CONDENSING UNITS

H4CE090 & H2CE120 & H1CE150
7-1/2, 10, & 12-1/2 NOMINAL TONS
8.9 - 9.5 EER
SUNLINE 2000 ™
208/230/460
VOLT ONLY
•
Permanently attached base rails with fork lift slots and
lifting holes. This design allows for 3-way fork lift access
and overhead rigging.
•
Both high and low pressure controls. Since these
controls are self-contained, there are no capillary lines
to be damaged.
•
Compressor line-break motor protection and crankcase
heaters. (No crankcase heater on HCE150 scroll
compressors.)
•
Anti-short cycle timer to protect the compressor.
•
A lockout circuit to prevent the unit from cycling on
safety control.
•
A 24-volt temperature control circuit.
•
Low ambient operation to 45 ° F. (Accessories for 0 ° F low
ambient operation are available.)
•
A filter-drier (shipped in the unit's compressor
compartment for field installation near the evaporator
coil).
•
Service valves with a back-seating access port for
pressure testing the system. Copper stub-outs are
factory mounted on the suction and liquid service valves
to simplify the field piping connections.
•
Separate panel for easy access to the control box
without affecting air flow across the condenser coil.
•
Gauge lines extend out from cabinet to facilitate ease
of servicing.
•
Packaging suitable for outdoor storage.
•
Optional coil guard accessory protect coils with a
decorative grille.
550.23-TG1Y (298)
208/230/575
VOLT ONLY
