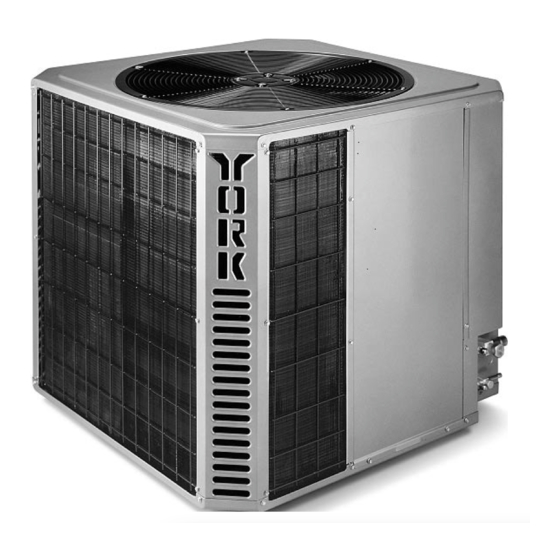

York STEALTH H4TS024 Installation Instruction

Split-system air conditioning 16 seer 2 to 5 tons
Hide thumbs Also See for STEALTH H4TS024:
Table of Contents

Advertisement

Quick Links

INSTALLATION
INSTRUCTION

TABLE OF CONTENTS

GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . 2
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
LIMITATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
UNIT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . 3
LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
GROUND INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 3
ROOF INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
UNIT PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
TXV INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PIPING CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . 4
ELECTRICAL CONNECTIONS . . . . . . . . . . . . . . . . . . 6
GENERAL INFORMATION & GROUNDING . . . . . . . . . . . 6
POWER WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ACCESSORY WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
THERMOSTAT MOUNTING / WIRING . . . . . . . . . . . . . . . . 7
DEHUMIDIFICATION CONTROL . . . . . . . . . . . . . . . . . . . . 7
INDOOR BLOWER SPEED SETTINGS . . . . . . . . . . . . . . . 7
SYSTEM CHARGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
REFRIGERANT LINE CHARGES . . . . . . . . . . . . . . . . . . . . 9
SERVICING AND VERIFY . . . . . . . . . . . . . . . . . . . . . . . . . 9
ENERGIZE CRANKCASE HEATER . . . . . . . . . . . . . . 10
SYSTEM OPERATION . . . . . . . . . . . . . . . . . . . . . . . . 10
FIRST STAGE COOLING . . . . . . . . . . . . . . . . . . . . . . . . . 10
SECOND STAGE OF COOLING . . . . . . . . . . . . . . . . . . . 10
DEHUMIDIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ANTI-SHORT CYCLE TIMER . . . . . . . . . . . . . . . . . . . . . . 10
PRESSURE SWITCH OPERATION . . . . . . . . . . . . . . . . . 10
RESETTING FAULT CONDITIONS . . . . . . . . . . . . . . . . . 11
INDICATIONS OF PROPER OPERATION . . . . . . . . . . . . 11
NOTICE TO OWNER . . . . . . . . . . . . . . . . . . . . . . . . . 11
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CAUTION:READ ALL SAFETY GUIDES BEFORE YOU
START TO INSTALL YOUR UNIT.
SAVE THIS MANUAL

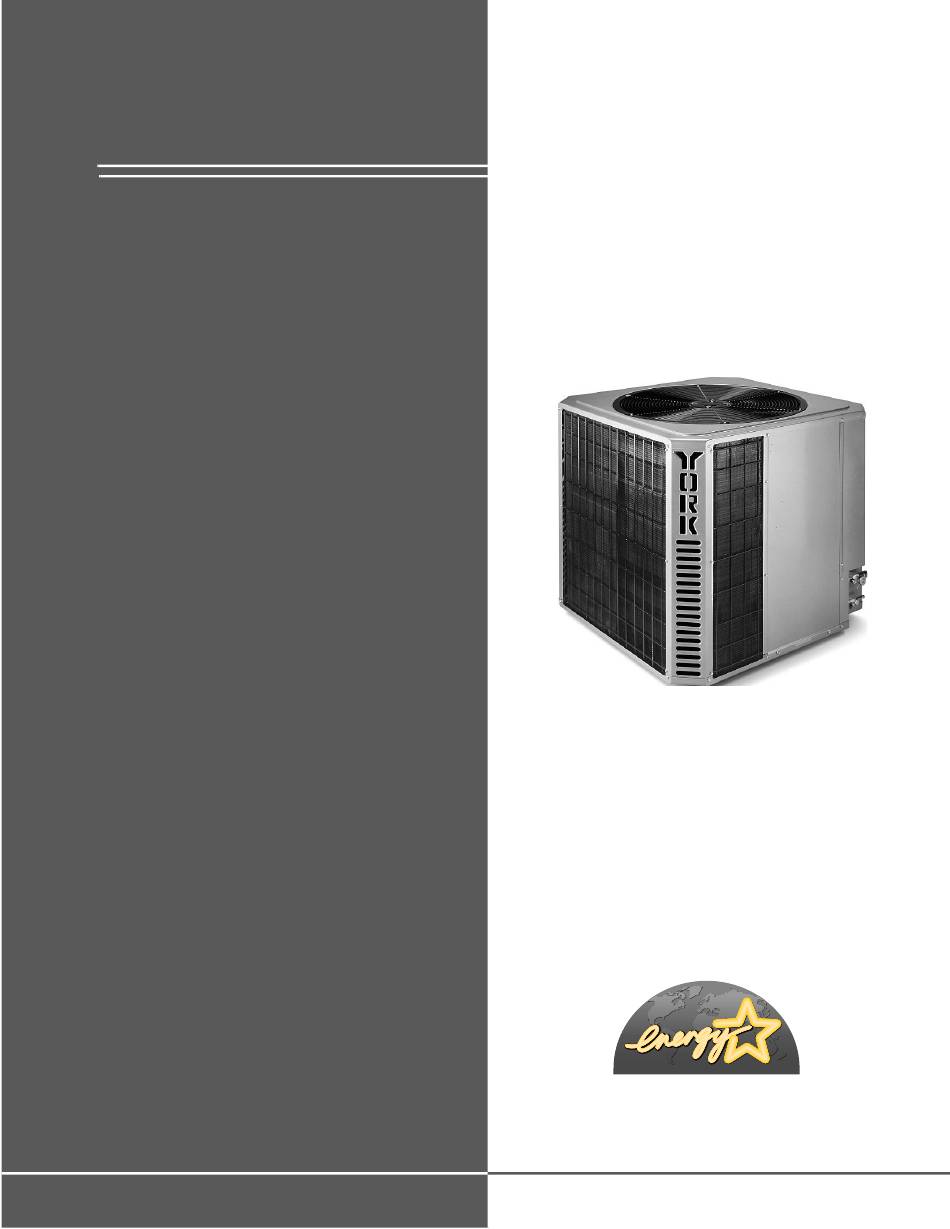

STEALTH
SPLIT-SYSTEM
AIR CONDITIONING
16 SEER 2 TO 5 TONS
MODELS:
H4TS024
H4TS030
H4TS036
H4TS048
H4TS060
035-14511-001 Rev. A (0602)
