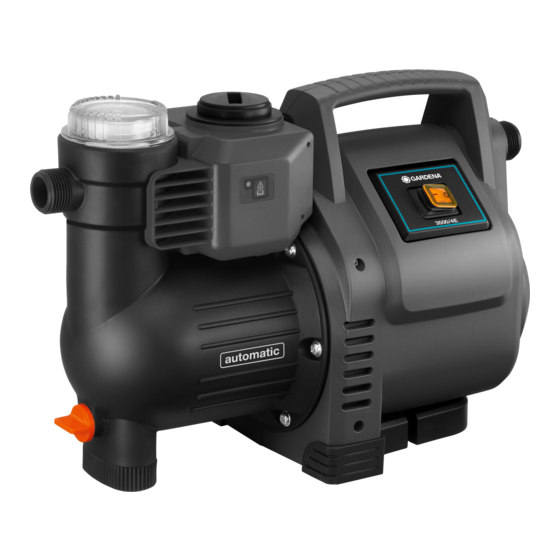

Classic 3500/4E Art. 1757
D
Betriebsanleitung
Hauswasserautomat
GB
Operating Instructions
Electronic Pressure Pump
F
Mode d'emploi
Station de pompage
NL
Gebruiksaanwijzing
Elektronische hydrofoorpomp
S
Bruksanvisning
Pumpautomat
DK
Brugsanvisning
Husvandværk
FI
Käyttöohje
Painevesipumppu
N
Bruksanvisning
Trykkpumpe
I
Istruzioni per l'uso
Pompa ad intervento automatico
E
Instrucciones de empleo
Estación de bombeo
P
Manual de instruções
Bomba de pressão
PL
Instrukcja obsługi
Hydrofor
H
Használati utasítás
Háztartási automata szivattyú
CZ
Návod k obsluze
Domácí vodní automat
SK
Návod na obsluhu
Domáci vodný automat
Comfort 4000/5E Art. 1758
GR
Οδηγίες χρήσης
Συσκευή παραγωγής νερού
οικιακής χρήσης
RUS
Инструкция по эксплуатации
Автоматический напорный
насос
SLO
Navodilo za uporabo
Hišna vodni avtomat
HR
Upute za uporabu
Kućni automat za vodu
SRB
Uputstvo za rad
BIH
Hidropak
UA
Інструкція з експлуатації
Помпа напірна автоматична
RO
Instrucţiuni de utilizare
Hidroforul Electronic
TR
Kullanma Kılavuzu
Konut suyu hidroforları
BG
Инструкция за експлоатация
Помпа с електронен пресостат
за високо налягане
AL
Manual përdorimi
Automati i ujit i shtëpisë
EST
Kasutusjuhend
Pump-veeautomaat
LT
Eksploatavimo instrukcija
Buitinis automatinis slėgimo
siurblys
LV
Lietošanas instrukcija
Elektroniskais ūdens sūknis
